ARUBA 6100 24G CL4 4SFP REMAN SWCH:AU-EN
ARUBA 6100 24G CL4 4SFP REMAN SWCH:AU-EN
Product Overview

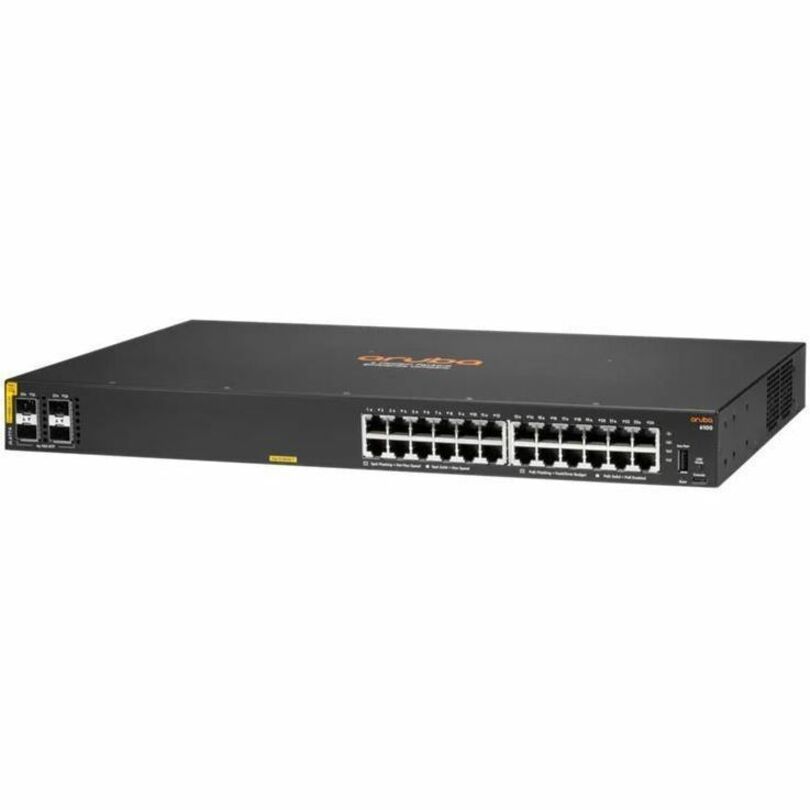

HPE 6100 24 Ports Ethernet Switch - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - Refurbished - 3 Layer Supported - Modular - 32.70 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U High - Rack-mountable, Wall Mountable
Aruba 6100 Switch SeriesThe Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.
The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes a compact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements..
- Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
- Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
- Compact and fanless 12 port model for quiet deployment
- Automated configuration and verification with Aruba NetEdit
- Software defined ready with REST APIs
- Simplify adds, moves and changes with colorless ports
Technical Specifications
Network & Communication
Layer Supported | 3 |
I/O Expansions
Expansion Slot Type | SFP+ |
Number of SFP+ Slots | 4 |
Total Number of Expansion Slots | 4.0 |
Miscellaneous
Application/Usage | Network |
Environmentally Friendly | Yes |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Interfaces/Ports
Network (RJ-45) | Yes |
Modular | Yes |
Uplink Port | Yes |
Total Number of Network Ports | 24 |
Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE |
4 x 10 Gigabit Ethernet Expansion Slot |
Power Description
Input Voltage | 120 V AC |
230 V AC | |
Power Source | Power Supply |
AC | |
Frequency | 60 Hz |
50 Hz | |
Power Consumption | 32.70 W |
Number of Power Supplies Supported | 1 |
Number of Power Supplies Installed | 1 |
PoE (RJ-45) Port | Yes |
PoE Budget | 370 W |
Media & Performance
Network Technology | 10GBase-X |
10/100/1000Base-T | |
Ethernet Technology | 10 Gigabit Ethernet |
Gigabit Ethernet | |
Media Type Supported | Twisted Pair |
Optical Fiber |
Physical Characteristics
Weight (Approximate) | 4.19 kg |
Form Factor | Wall Mountable |
Rack-mountable | |
Height | 43.9 mm |
Width | 442 mm |
Depth | 268.2 mm |
Compatible Rack Unit | 1U |
General Information
Product Type | Ethernet Switch |
Manufacturer Part Number | JL677ARABG |
Manufacturer Website Address | https://www.hpe.com/au/ |
Manufacturer | Hewlett Packard Enterprise |
Product Name | 6100 24G Class4 PoE 4SFP+ 370W Switch |
Product Series | 6100 |
Brand Name | HPE |
Product Condition | Refurbished |
