Product Overview

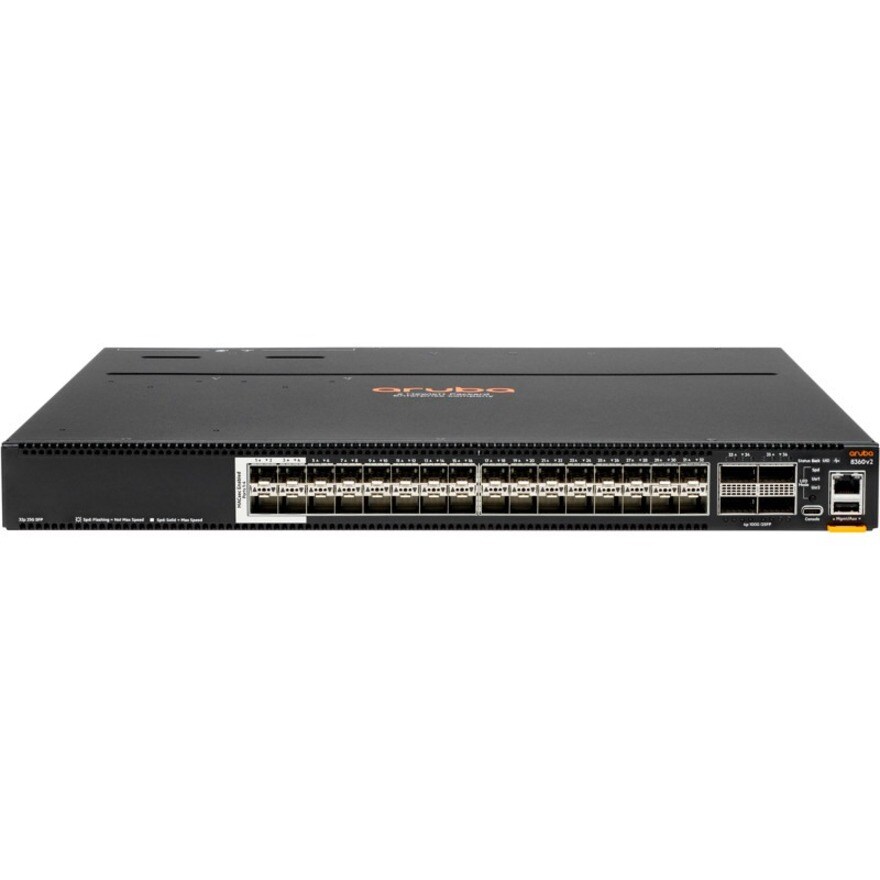

Aruba 8360-32Y4C v2 FB 3F 2AC Bundle - AU localisation
Aruba CX 8360 Switch SeriesThe Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.
The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.
In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.
- High-performance 4.8Tbps and 2,678 Mpps
- Intelligent monitoring and visibility with Aruba Network Analytics Engine
- High availability with industry leading VSX redundancy, and redundant power supplies and fans
- Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments
- MACsec secured connectivity over untrusted domains
- ArubaOS-CX automation and programmability using built-in REST APIs and Python scripts
- Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6
- 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches
- Addition of Smart Rate (1/2.5/5/10G) ports on the 8360-48XT4C
Technical Specifications
Management & Protocols
| Manageable | Yes |
Miscellaneous
| Package Contents |
|
| TAA Compliant | Yes |
I/O Expansions
| Expansion Slot Type | SFP28 |
| QSFP28 | |
| Total Number of Expansion Slots | 36.0 |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 4 x 100 Gigabit Ethernet Expansion Slot |
| 32 x 25 Gigabit Ethernet Expansion Slot |
Network & Communication
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1ae |
| IEEE 802.1ab | |
| IEEE 802.3ae | |
| IEEE 802.3an | |
| IEEE 802.3ba | |
| IEEE 802.3by | |
| IEEE 802.3cc | |
| IEEE 802.3z | |
| IEEE 802.1AEbn | |
| IEEE 802.1AEbw | |
| IEEE 802.1ak | |
| IEEE 802.1AX | |
| IEEE 802.1D | |
| IEEE 802.1Q | |
| IEEE 802.1Qbb | |
| IEEE 802.1s | |
| IEEE 802.1t | |
| IEEE 802.3ad | |
| IEEE 802.1w | |
| IEEE 802.1v |
Media & Performance
| Network Technology | 25GBase-X |
| 100GBase-X | |
| Ethernet Technology | 25 Gigabit Ethernet |
| 100 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
Physical Characteristics
| Weight (Approximate) | 8.19 kg |
| Form Factor | Rack-mountable |
| Height | 43.9 mm |
| Width | 442 mm |
| Depth | 406.4 mm |
| Compatible Rack Unit | 1U |
Power Description
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 425 W |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL700C#ABG |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 8360v2- 32Y4C |
| Product Name | 8360v2- 32Y4C Ethernet Switch |
| Product Series | CX 8360 |
| Brand Name | HPE |
