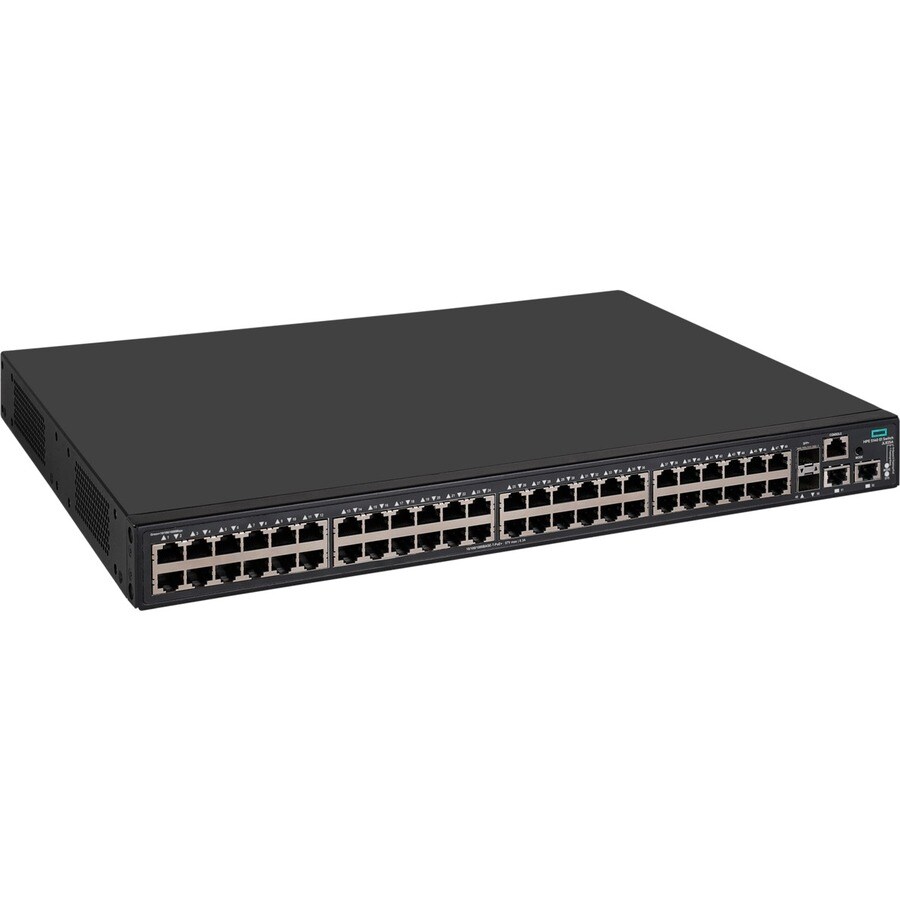

HPE 5140 48G POE+ 2SFP+ 2XGT EI SW
HPE 5140 48G POE+ 2SFP+ 2XGT EI SW
Product Overview
HPE 5140 48G POE+ 2SFP+ 2XGT EI SW
HPE FlexNetwork 5140 EI Switch Series
The HPE FlexNetwork 5140 EI Switch Series comprises Gigabit Ethernet switches that support static, OSPF and RIP Layer 3 routing, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet.
Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers.
High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.
- Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10GbE uplinks and POE+ models for voice, video and wireless
- IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices
- Embedded network management capabilities at no additional cost with Smart Management Centre (SmartMC)
- Energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports
Technical Specifications
| Manageable | Yes |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 50 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+ |
| 2 x 10 Gigabit Ethernet Expansion Slot | |
| 2 x 10 Gigabit Ethernet Network |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3ab |
| IEEE 802.1ab | |
| IEEE 802.1ad | |
| IEEE 802.1ak | |
| IEEE 802.1D | |
| IEEE 802.3ae | |
| IEEE 802.3af | |
| IEEE 802.3ah | |
| IEEE 802.3at | |
| IEEE 802.3az | |
| IEEE 802.3i | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3 | |
| IEEE 802.3ac | |
| IEEE 802.3ad |
| Network Technology | 10/100/1000Base-T |
| 10GBase-X | |
| 10GBase-T | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Weight (Approximate) | 6 kg |
| Form Factor | Cabinet Mount |
| Rack-mountable | |
| Height | 43.7 mm |
| Width | 439.9 mm |
| Depth | 320 mm |
| Compatible Rack Unit | 1U |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 34.50 W |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 370 W |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | JL825A#ABG |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | FlexNetwork 5140 48G PoE+2SFP+2XGT EI Switch |
| Product Line | FlexNetwork |
| Product Series | 5140 EI |
| Brand Name | HPE |
