KTG SD5900T TB4 QUAD 4K DOCK 96W PD
KTG SD5900T TB4 QUAD 4K DOCK 96W PD
Product Overview

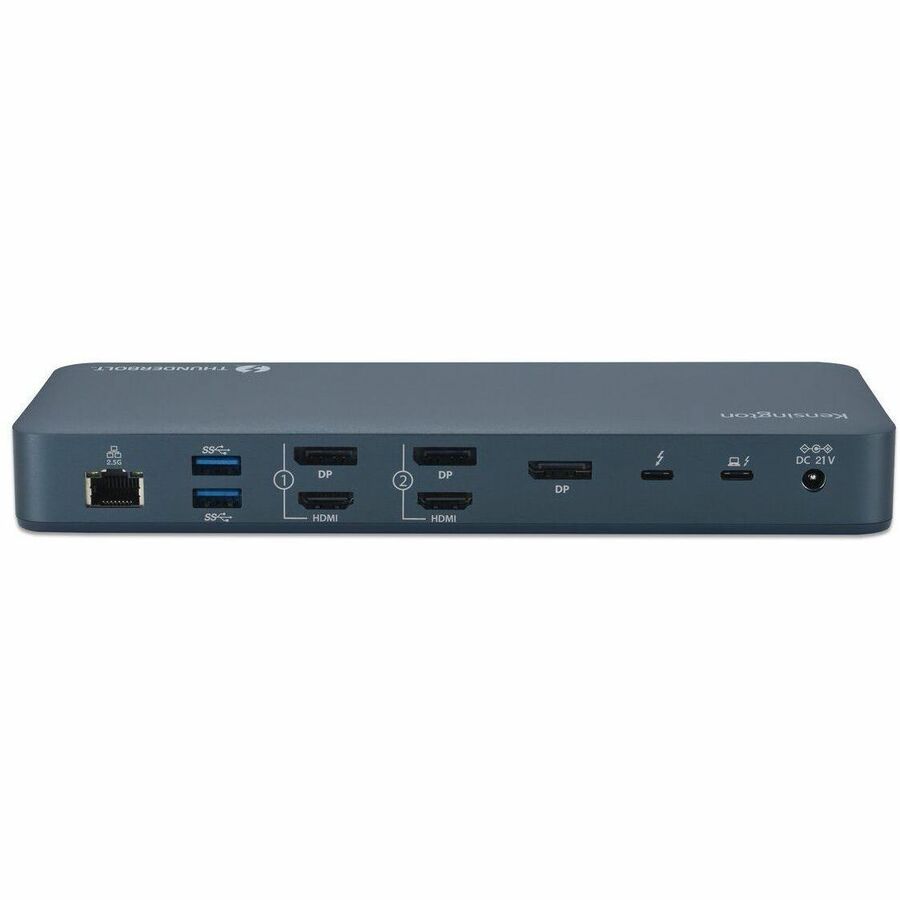

Kensington SD5900T Thunderbolt 4 Docking Station for Notebook/Monitor - Charging Capability - Memory Card Reader - SD - Midnight Blue - Desktop - 4 Displays Supported - 4K, 4K @ 60Hz - 3840 x 2160 - 4 x USB Ports - 3 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 2 x HDMI Ports - HDMI - 3 x DisplayPorts - DisplayPort - Thunderbolt - Wired - 2.5 Gigabit Ethernet - Mac OS X 11.0 Big Sur, Windows - 100W - 2 x Thunderbolt 4 Ports
Up to Quad 4K Video via HDMI®, DP, and Thunderbolt™ for MacBook
Provides flexible video connections without the need for cumbersome adapters. Choose between 2 x Thunderbolt™ 4 downstream ports and 1 x DP port for plug-and-play video. Add 2 x HDMI®/DP options with DisplayLink® technology. Supports up to quad 4K @ 60Hz for MacBook M1/M2/ M3 with Pro and Max chipsets (and M3 base chipset with laptop lid closed). Also supports up to triple 4K @ 60Hz for base M1/M2 chipsets.
Designed for MacBook
Delivers the power of Thunderbolt™ 4, reflects the midnight blue aesthetic of the latest MacBook, and is optimized for devices with M1, M2, and M3 chipsets running macOS (11 or later).
Thunderbolt™ 4 Hybrid Technology
Combines Thunderbolt™ with DisplayLink® technology to provide next-level productivity experiences. Transfers up to 40Gbps of data, video, and audio. Provides daisy chain support for SSDs, monitors, and other Thunderbolt™ devices. Blocks peripheral devices from unauthorized access to system memory using Intel VT-d DMA protection.
Up to 100W Charging (96W certified)
Power your MacBook while also charging your connected accessories, including iPhones, AirPods, and Apple watches. Includes KonstantCharge™, enabling connected devices to charge even when your MacBook is undocked.
Productive 16-in-1 Design
With 16 connection options, provides all the ports you need to get the job done today and well into the future. Includes 1 x Thunderbolt™ host port and 2 x Thunderbolt™ 4 downstream ports capable of data, video, and audio, 1 x USB-C® 3.2 Gen2 10Gbps, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x HDMI®/DP, 1 x DP, 1 x 3.5mm combo audio jack, 1 x SD Card reader, 1 x Micro SD Card reader, and 1 x 2.5Gbps Ethernet.
Recycled Materials
The SD5900T is composed of 100% post-consumer recycled (PCR) aluminum* and it is delivered in Forest Stewardship Council (FSC®) certified packaging. *The outer casing of the docking station is made of aluminum. The PCBA and any related inner components are not made of aluminum.
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately.
3-Year Limited Warranty
Enjoy peace of mind knowing you are covered by Kensington with a professional warranty.
Technical Specifications
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Operating System Supported | Mac OS X 11.0 Big Sur |
| Windows |
| Form Factor | Desktop |
| Product Color | Midnight Blue |
| Color Family | Blue |
| Compatibility | Compatible with Apple MacBook models with M1, M2, and M3 chipsets |
| Post-consumer-waste% | 100% |
| Brand Compatibility | Apple |
| Kensington Security Slot | Yes |
| Host Interface | Thunderbolt 4 |
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Thunderbolt | Yes |
| Number of DisplayPorts | 3 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C® 3.2 Gen2 10Gbps |
| Number of USB Type-C Ports | 1 |
| Number of USB Type-A Ports | 3 |
| Thunderbolt Ports Quantity | 2 |
| USB Power Delivery | 100W |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| USB Type-A | Yes |
| Product Type | Docking Station |
| Manufacturer Part Number | K35232AP |
| Manufacturer Website Address | http://www.acco.com.au |
| Manufacturer | ACCO Brands Corporation |
| Product Model | SD5900T |
| Product Name | SD5900T Docking Station |
| Brand Name | Kensington |
| Device Supported | Notebook/Monitor |
| Connectivity Technology | Wired |
| Features | Security Lock |
| Card Reader | |
| Cable Lock Slot | |
| Plug and Play | |
| Charging Capability | Yes |
| Memory Card Supported | SD |
| microSD | |
| Memory Card Reader | Yes |
| Maximum Data Transfer Rate | 5 GB/s |
| Number of Displays Supported | 4 |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K @ 60Hz |
| 4K | |
| Security Slot Type | Kensington Security Slot |
