ALOGIC 1M LC-SC MULTI MODE DUPLEX LSZH F
ALOGIC 1M LC-SC MULTI MODE DUPLEX LSZH F
Product Overview

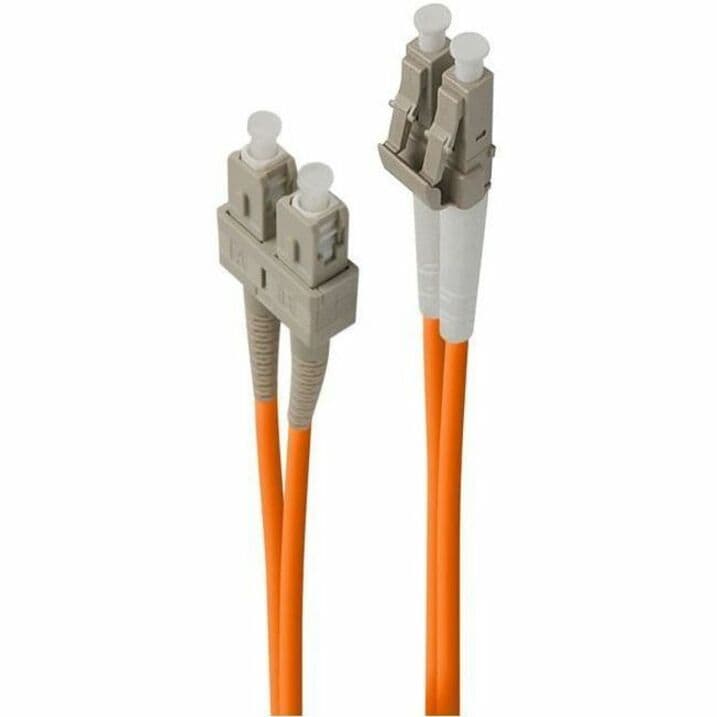

Alogic 1 m Fibre Optic Network Cable - Cable for Network Device - First End: 2 x LC Network - Male - Second End: 2 x SC Network - Male - 1 Gbit/s - Patch Cable - LSZH - 62.5/125 µm
The Multi Mode OM1 cables are designed to support Gigabit Fibre & ethernet channel, the cables are capable of supporting 1Gigabit applications upto over 25m length. These Fibre Cables are constructed with the high quality components such as genuine Corning Inficore 3 glass and high grade connectors with ceramic ferrules to ensure the maximum performance accuracy and durability. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.
- Multi Mode OM1 fibre optic cable
- Available in various lengths starting from 1m to 20m
- Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire
- 100% optically tested and provided with test reports
- Fully compatible with network devices
- Allows you to access all of the networked data, swiftly and securely
- Features Fibre Optic cable type
- Features Corning Infinicor 300 OM1 Glass.
Technical Specifications
| Material Details | Ceramic ferrules - Connectors |
| Product Material | Glass Fiber |
| Cable Length | 1 m |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | Network Device |
| Features | Corning Infinicor 300 OM1 Glass. |
| Cable Characteristic | Patch Cable |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Core/Cladding Diameter | 62.5/125 µm |
| Fiber Optic Mode | Multi-mode |
| Fiber Type | Duplex |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Fiber Count | 2 |
| Fiber Category | OM1 |
| Product Type | Network Cable |
| Manufacturer Part Number | LCSC-01-OM1 |
| Manufacturer Website Address | http://www.alogic.co |
| Manufacturer | Alogic |
| Product Name | LC-SC Multi Mode Duplex LSZH Fibre Cable 62.5/125 OM1 |
| Brand Name | Alogic |
