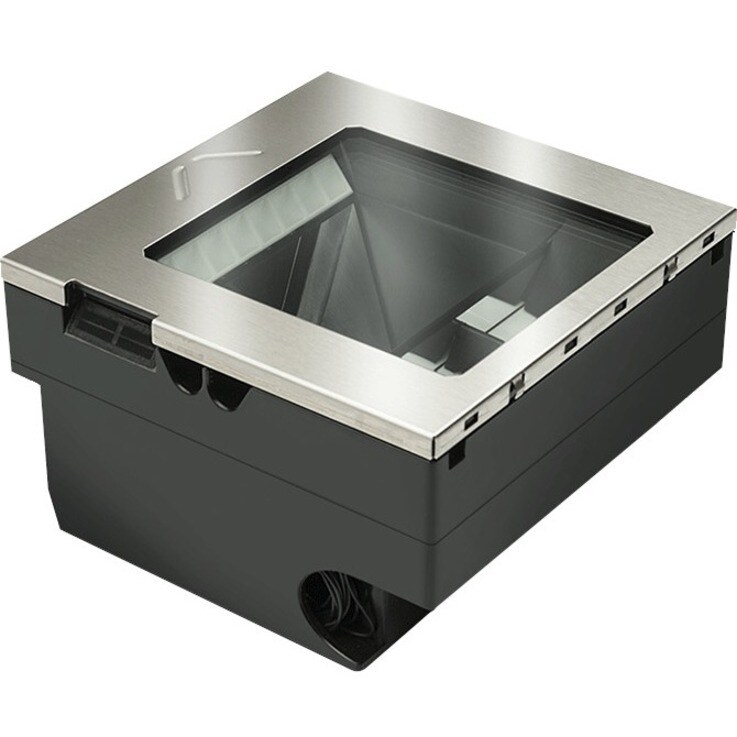

MGLN 3510HSi Sapphire Platter 1D/2D STD

MGLN 3510HSi Sapphire Platter 1D/2D STD

MGLN 3510HSi Sapphire Platter 1D/2D STD

Product Overview

MGLN 3510HSi Sapphire Platter 1D/2D STD Mount 15IN USB KBD POT cable

IN-COUNTER HIGH PERFORMANCE BAR CODE READER

The Magellan™ 3550HSi series of scanners continue the Datalogic tradition of high performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3550HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.

ENHANCING THE CUSTOMER EXPERIENCE

The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.

ENTERPRISE FEATURES

Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
ENHANCING THE CUSTOMER EXPERIENCE
  • Perfect for applications that require direct association with a workstation or a notebook
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • LED aimer is a perfect choice for patient-facing applications

Technical Specifications

Interfaces/Ports
Host InterfaceSerial
USB
Physical Characteristics
Weight (Approximate)980 g
Form FactorIn-counter
Length152.4 mm
Width152.4 mm
Depth86.4 mm
Technical Information
Barcode Symbology Supported
    1D :
    • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
    2D :
    Aztec Code
    • Data Matrix (ECC200 only)
    • QR Code
    Stacked Codes:
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MicroPDF417
    • PDF417
    Digital Watermarks:
    • Optional support for Digimarc® Barcodes/GS1 DW Code
Connectivity TechnologyCable
Light SourceLED
Image FormatsBMP
JPEG
Scanner RangeStandard Range
Scan PatternLinear
Omni-directional
Image Sensor TypeImager
Stand IncludedYes
Cable Type IncludedUSB
Scanning Capability2D
1D
Reading Angle (Skew)75°
Reading Angle (Pitch)65°
Reading Angle (Roll)360°
Maximum Ambient Light100 lux
Minimum Print Contrast25%
General Information
Product TypeBarcode Scanner Kit
Manufacturer Part NumberM3511-010210-00604
Manufacturer Website Addresshttp://www.datalogic.com
ManufacturerDatalogic S.p.A
Product Model3550HSi
Product NameMagellan 3510HSi Barcode Scanner Kit
Product LineMagellan
Brand NameDatalogic
Miscellaneous
Application/UsageRetail
Pharmacy
Industrial
Package Contents
  • Magellan 3510HSi Barcode Scanner Kit
  • 15ft USB Keyboard POT cable
  • Standard Mount
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP52
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)

Price Trend

Current Price
AUD 1,240.00
