Eaton HotSwap MBP IEC
Eaton HotSwap MBP IEC
Product Overview

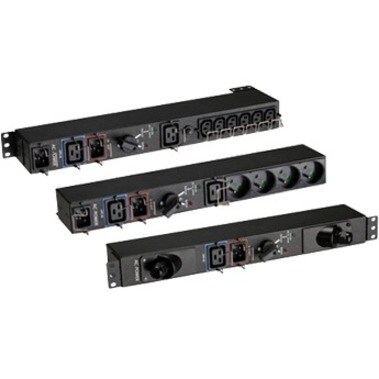

Eaton Bypass Switch - 1 x IEC 320-C19, 6 x IEC 60320 C13 - 3 kW - 230 V AC
The Eaton HotSwap MBP series is made of versatile, flexible 2U PDUs designed to add high availability to UPSs up to 3,000 VA. Any UPS connected to a HotSwap MBP can be replaced for maintenance or upgrade purposes without interrupting the power supply to the protected devices. As a unique feature, they can be screwed at the back a Pulsar UPS, either front-facing or rear-facing, on the left or right hand side, for maximum versatility. They offers multiple mounting options for rack enclosures, wall mounting or connection at the rear of a UPS, whatever its brand.Features and Benefits
- Adds high availability to UPSs up to 3,000 VA
- Can be rackmounted, wallmounted or connected at the rear of an Eaton UPS in 3 different ways
- 2U versatile power distribution unit
- Easy plug-in connectivity
- Universal solution
Technical Specifications
Miscellaneous
| Compatibility | Eaton 9PX UPS (1000-3000W) |
Power Description
| Input Voltage | 230 V AC |
| Load Capacity (VA) | 3 kW |
General Information
| Product Type | Bypass Switch |
| Manufacturer Part Number | MBP3KI |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Name | HotSwap MBP IEC |
| Product Series | MBP |
| Brand Name | Eaton |
Technical Information
| Protection Type | Short Circuit |
| Plug/Connector Type | IEC 60320 C20 |
Physical Characteristics
| Form Factor | Wall/Rack-mountable |
| Rack Height | 2U |
| Height | 52 mm |
| Width | 483 mm |
| Depth | 120 mm |
