FIBER TO ETHERNET MEDIA CONVERTER SC

FIBER TO ETHERNET MEDIA CONVERTER SC

FIBER TO ETHERNET MEDIA CONVERTER SC

Product Overview

StarTech.com Transceiver/Media Converter - TAA Compliant - 2 Port(s) - 1 x Network (RJ-45) - 1 x SC - Duplex SC Port - Optical Fiber, Twisted Pair - Multi-mode - Fast Ethernet - 10Base-T, 100Base-FX, 100Base-TX - AC Adapter - External

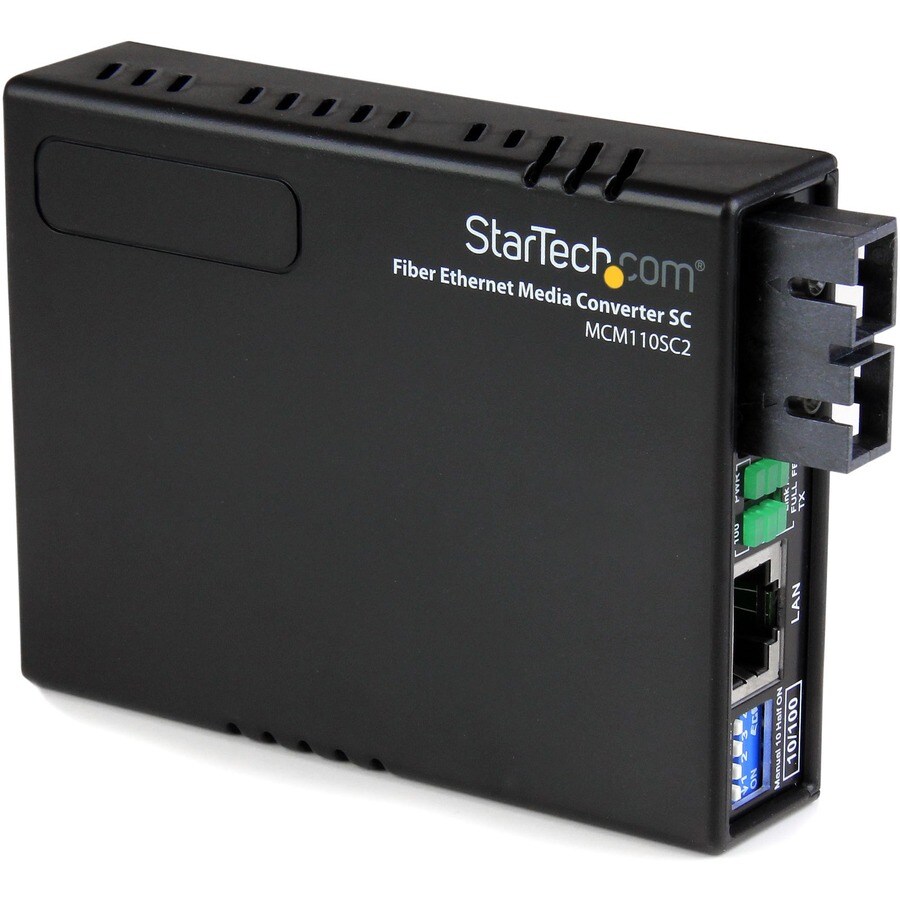

The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.

This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Technical Specifications

Miscellaneous
Additional Information
    • Plug Type: M
    • Fiber Operating Mode: Half/Full-Duplex
Environmentally FriendlyYes
TAA CompliantYes
Network & Communication
Network Technology100Base-FX
10Base-T
100Base-TX
Power Description
Power SourceAC Adapter
Power Consumption2.40 W
Plug/Connector TypeType M
General Information
Product TypeTransceiver/Media Converter
Manufacturer Part NumberMCM110SC2
Manufacturer Website Addresshttp://www.startech.com/au
ManufacturerStarTech.com
Product Name10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km
Brand NameStarTech.com
Interfaces/Ports
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Total Number of Ports2
Media & Performance
Media Type SupportedOptical Fiber
Twisted Pair
Fiber Mode SupportedMulti-mode
Fiber Optic Wavelength1310 nm
Physical Characteristics
Weight (Approximate)85 g
Height20.3 mm
Width76.2 mm
Depth94 mm

Price Trend

Current Price
AUD 156.99
