MM FIBER ETHERNET MEDIA CONVERTER ST 2KM

MM FIBER ETHERNET MEDIA CONVERTER ST 2KM

MM FIBER ETHERNET MEDIA CONVERTER ST 2KM

Product Overview

StarTech.com Transceiver/Media Converter - TAA Compliant - 2 Port(s) - 1 x Network (RJ-45) - 1 x ST - DuplexST Port - Optical Fiber, Twisted Pair - Multi-mode - Fast Ethernet - 10Base-T, 100Base-FX, 100Base-FX - 2 km - AC Adapter - External

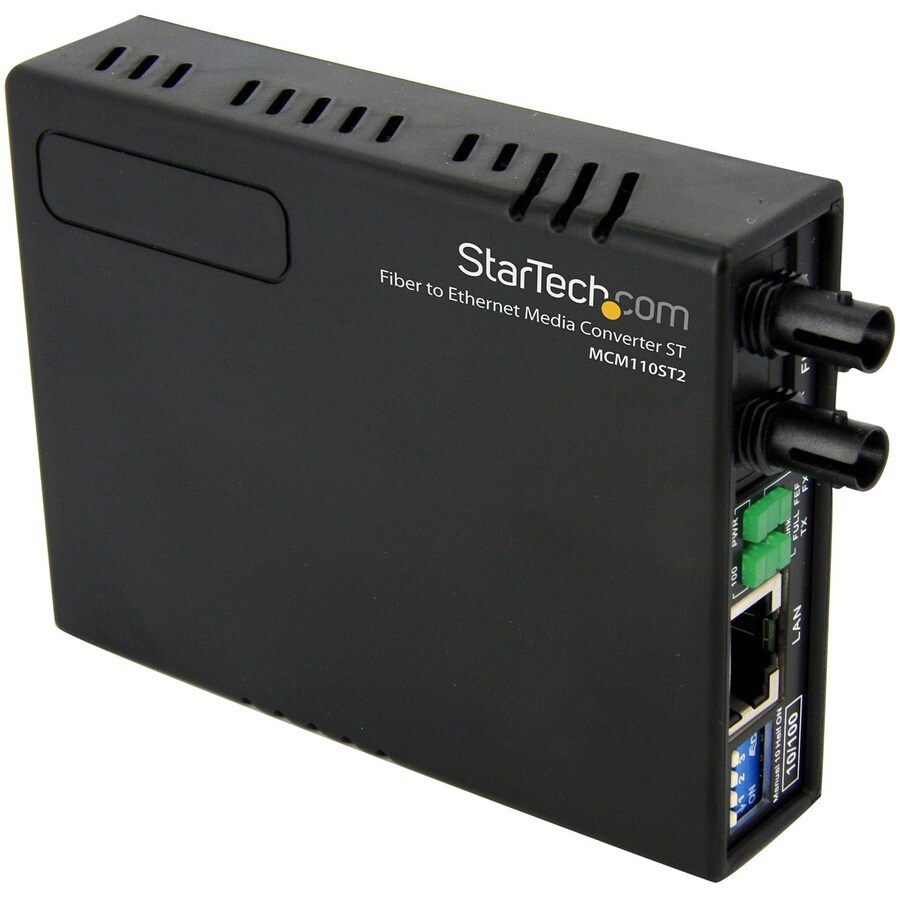

The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.

The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Technical Specifications

Network & Communication
Network Technology100Base-FX
10Base-T
Miscellaneous
Additional Information
    • Plug Type: M
    • Fiber Operating Mode: Half/Full-Duplex
Environmentally FriendlyYes
TAA CompliantYes
Power Description
Power SourceAC Adapter
Power Consumption2.40 W
Plug/Connector TypeType M
General Information
Product TypeTransceiver/Media Converter
Manufacturer Part NumberMCM110ST2
Manufacturer Website Addresshttp://www.startech.com/au
ManufacturerStarTech.com
Product Name10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km
Brand NameStarTech.com
Interfaces/Ports
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of ST Ports1
Total Number of Ports2
Physical Characteristics
Weight (Approximate)82.2 g
Height20.3 mm
Width76.2 mm
Depth94 mm
Media & Performance
Maximum Distance Supported2 km
Media Type SupportedOptical Fiber
Twisted Pair
Fiber Mode SupportedMulti-mode
Fiber Optic Wavelength1310 nm
