Product Overview

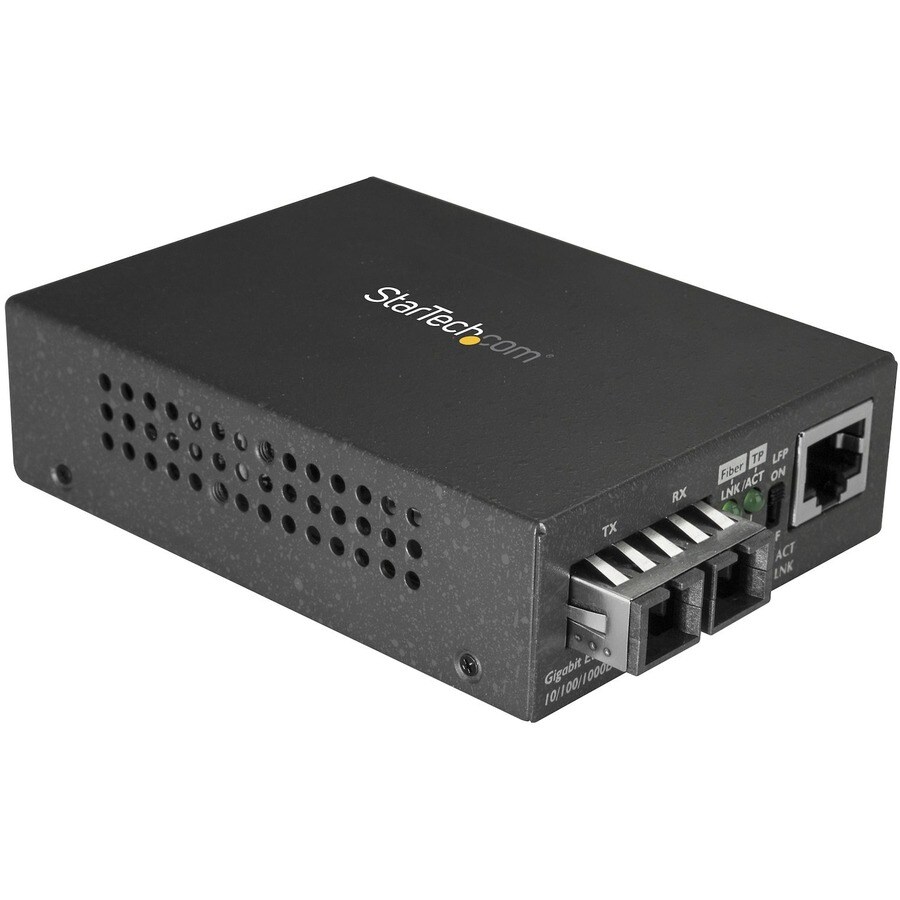

StarTech.com Transceiver/Media Converter - TAA Compliant - 2 Port(s) - 1 x Network (RJ-45) - 1 x SC - Duplex SC Port - Twisted Pair, Optical Fiber - Multi-mode - Gigabit Ethernet - 1000Base-T, 1000Base-SX, 1000Base-TX, 10Base-T - 550 m - AC Adapter - Wall Mountable

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 mover multimode fiber, on 1000BASE-SXnetworks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Technical Specifications

Miscellaneous
Environmentally FriendlyYes
TAA CompliantYes
Power Description
Power SourceAC Adapter
Power Consumption10 W
Plug/Connector TypeType N
Interfaces/Ports
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Total Number of Ports2
General Information
Product TypeTransceiver/Media Converter
Manufacturer Part NumberMCMGBSCMM055
Manufacturer Website Addresshttp://www.startech.com/au
Packaged Quantity1
ManufacturerStarTech.com
Product NameGigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
Brand NameStarTech.com
Network & Communication
Network Technology10Base-T
1000Base-T
1000Base-TX
1000Base-SX
Physical Characteristics
Weight (Approximate)201.3 g
Height25.4 mm
Width96.5 mm
Depth71.1 mm
Media & Performance
Maximum Distance Supported550 m
Media Type SupportedOptical Fiber
Twisted Pair
Fiber Mode SupportedMulti-mode
Fiber Optic Wavelength850 nm
