Mini DisplayPort to DisplayPort Adapter
Mini DisplayPort to DisplayPort Adapter
Product Overview
StarTech.com 6ft Mini DisplayPort to DisplayPort 1.2 Cable, 4K x 2K mDP to DisplayPort Adapter Cable, Mini DP to DP Cable for Monitor - 6ft Mini-DP to DisplayPort v1.2 cable; 4Kx2K(3840x2400 60Hz)/21.6 Gbps bandwidth/HBR2/8Ch Audio/MST - Durable PVC strain relief; Latching connectors - For office/boardroom with laptop/workstation and monitor/projector; Samsung/Sony/Dell

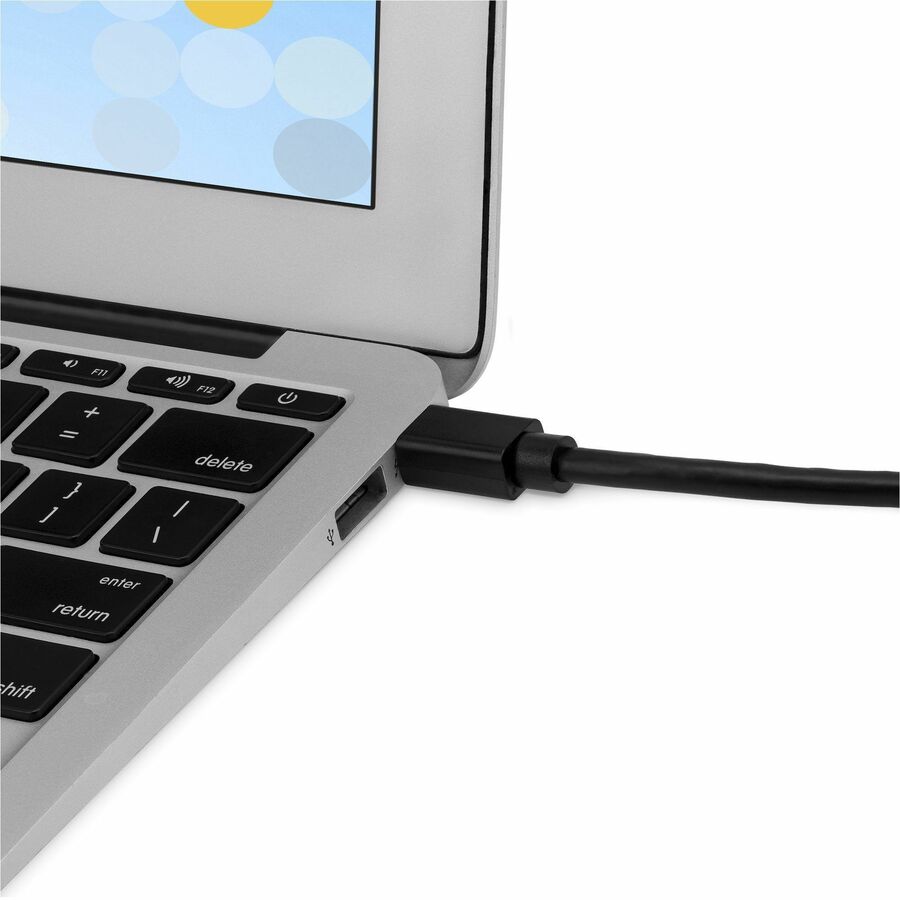

The MDP2DPMM6 6ft Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM6 is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
- MINI-DP to DISPLAYPORT 1.2 CABLE: This 6.6ft (2m) DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: Ideal for home/office/boardroom/classroom works w/laptop (with Mini-DP port)/professional workstations with AMD FirePro� W9100/8100, Nvidia NVS 810/510 graphic card; UHD/4K monitor/projector/display; Microsoft Surface Pro 6/4
- SPECS: 6.6 ft (2 m) | Black | DisplayPort v1.2 | Mini-DP Male to Standard DP Latching Male | 32 AWG | PVC cable jacket, ABS connector shell | Shield: Al-Mylar foil with Braid | Protocols: HBR 2, MST, GTC | Lifetime Warranty
Technical Specifications
| Certifications & Standards | CMG Rated |
| Environmentally Friendly | Yes |
| Cable Length | 1.83 m |
| Conductor | Copper |
| Data Transfer Rate | 21.6 Gbit/s |
| Device Supported | HDTV |
| TV | |
| Notebook | |
| Projector | |
| Desktop Computer | |
| Audio/Video Device | |
| Monitor | |
| Features | Damage Resistant |
| EMI Protection | |
| Strain Relief | |
| Multi-Stream Transport (MST) Support | |
| Latching Connector | |
| HDCP | |
| Fray Resistant | |
| Braided | |
| Flexible | |
| DPCP | |
| Connector Type on First End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Plating | Gold |
| Nickel | |
| American Wire Gauge | 32 AWG |
| Supported Resolution | 3840 x 2160 |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Weight (Approximate) | 69 g |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shielding Material | Aluminum Mylar Foil |
| Product Color | Black |
| Color Family | Black |
| Connector Material | ABS |
| Product Type | A/V Cable |
| Manufacturer Part Number | MDP2DPMM6 |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | DisplayPort/Mini DisplayPort Audio/Video Cable |
| Brand Name | StarTech.com |
| Packing | Bagged |
