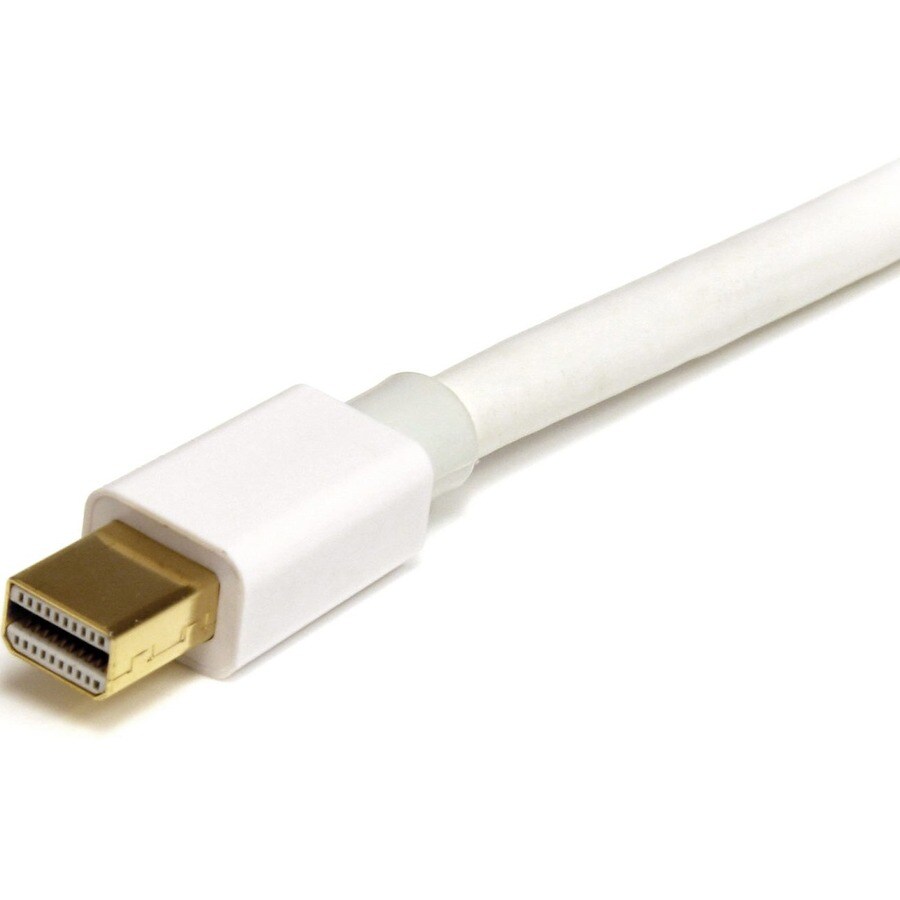

1m 3 ft White Mini DisplayPort Cable M/M
1m 3 ft White Mini DisplayPort Cable M/M
Product Overview
StarTech.com 3ft (1m) Mini DisplayPort Cable, 4K x2K Ultra HD Video, Mini DisplayPort 1.2 Cable, Mini DP Cable for Monitor, White mDP Cord - Cable for Audio/Video Device, Monitor, Notebook, Desktop Computer, MacBook Air, MacBook Pro, Projector - First End: 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male - Second End: 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male - Supports up to2560 x 1600 - Shielding - Gold Plated Connector - CMG - 30 AWG - White
The MDPMM1MW 1m White Mini DisplayPort™ 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDPMM1MW is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
- MINI DISPLAYPORT 1.2 CABLE: This 3.3ft (1m) Mini DisplayPort v1.2 cable supports 4K x 2K video (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
- QUALITY CONSTRUCTION: 30AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.1
- SPECS: 3.3ft (1m); White Mini DP Cable; DisplayPort v1.2; mDP Male to mDP Male Cord; 30 AWG; PVC cable jacket, ABS connector shell; Shield: Al-Mylar foil with Braid; Protocols: HBR2, MST, GTC; Backed for Life~
Technical Specifications
| Additional Information |
|
| Environmentally Friendly | Yes |
| Cable Length | 1 m |
| Conductor | Copper |
| Device Supported | MacBook Air |
| MacBook Pro | |
| Monitor | |
| Notebook | |
| Audio/Video Device | |
| Projector | |
| Desktop Computer | |
| Shielding | Yes |
| Features | Multi-Stream Transport (MST) Support |
| HDCP | |
| Fray Resistant | |
| Damage Resistant | |
| Strain Relief | |
| EMI Protection | |
| DPCP | |
| Bendable | |
| Connector Type on First End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Plating | Gold |
| American Wire Gauge | 30 AWG |
| Supported Resolution | 2560 x 1600 |
| Weight (Approximate) | 19.8 g |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | White |
| Product Type | A/V Cable |
| Manufacturer Part Number | MDPMM1MW |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 1m (3 ft) White Mini DisplayPort 1.2 Cable M/M - Mini DisplayPort 4k |
| Brand Name | StarTech.com |
