SFP TRANSCEIVER F SR2024 SR224G

SFP TRANSCEIVER F SR2024 SR224G

SFP TRANSCEIVER F SR2024 SR224G

Product Overview

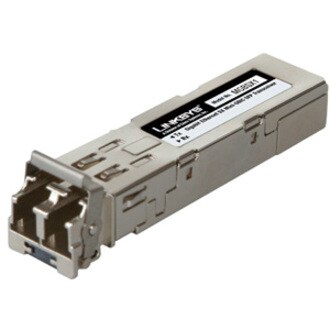

Cisco MGBSX1 SFP Transceiver - Gigabit Ethernet (GbE) 1000BASE-SX Mini-GBIC (MGBSX1)

This easy-to-install Mini-GBIC (or SFP) module provides a simple way to add Gigabit functionality to your Linksys switch. Gigabit fiber is often used to connect two switches together. The technology used depends on the distance between the two switches.The SX module uses 850 nanometer wavelength light in multimode fiber optic cables, and can achieve distances up to 220 or 550 meters, depending on the fiber used.

Features
  • With its thicker diameter to carry the light of multiple wavelengths, multi-mode fibre optic cable supports the high bandwidth to carry more information with greater fidelity
  • Supports optical fibre cable for durable performance, minimal signal loss, and fast data transfers to greater distances

Technical Specifications

Interfaces/Ports
Total Number of Ports1
General Information
Product TypeSFP (mini-GBIC)
Manufacturer Part NumberMGBSX1
Manufacturer Website Addresshttp://www.cisco.com/c/en_au
ManufacturerCisco Systems, Inc
Product ModelMGBSX1
Product NameMGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver
Brand NameCisco
Physical Characteristics
Weight (Approximate)20 g
Technical Information
Application/UsageData Networking
Miscellaneous
Additional Information
    • Transmitter Spec: Power: -9.5 to -4 dBm
    • Reciever Spec: Sensitivity: -20 to -17dBm
    • Input Power: -20 to -17 dBm
    • Stress Sensitivity: 50/125 um: -13.5dBm, 62.5/125 um: -12.5dBm
    • Wavelength: 850 nm (850nm TYP., 830-860nm) MMF

    Modular Bandwidth for MMF:

    • 62.5/125um MMF at 160 MHz/km, up to 220m
    • 62.5/125um MMF at 200 MHz/km, up to 275m
    • 50/125um MMF at 400 MHz/km, up to 500m
    • 50/125um MMF at 500 MHz/km, up to 550m
Compatibility
    • SR2024 - 24-Port 10/100/1000 Gigabit Switch
    • SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
    • SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView
    • SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView
    • SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView
Media & Performance
Maximum Distance Supported550 m
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode

Price Trend

Current Price
AUD 251.76
