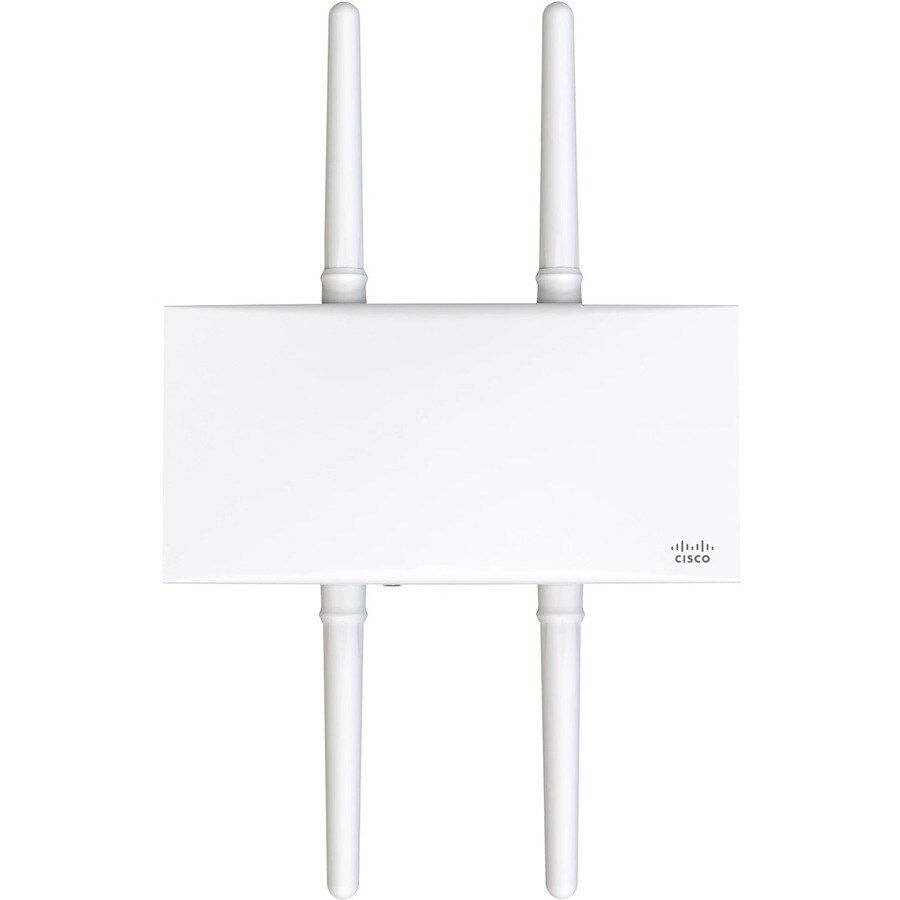

APL-MERAKI MR76 WI-FI 6 OUTDOOR AP
APL-MERAKI MR76 WI-FI 6 OUTDOOR AP
Product Overview
APL-MERAKI MR76 WI-FI 6 OUTDOOR AP
The Meraki MR series is the world's first enterprise-grade line of cloud-managed WLAN access points. Designed for challenging enterprise environments, the MR access points use advanced WiFi 6 technologies including MU-MIMO, OFDMA, beam forming and channel bonding to deliver the throughput and reliable coverage required by demanding business applications.Centralized cloud management
The award-winning Cisco Meraki cloud management architecture provides powerful and intuitive centralized management, while eliminating the cost and complexity of traditional on-site wireless controllers. Seamlessly manage campus-wide Wi-Fi deployments and distributed multi-site networks with zero-touch access point provisioning, network-wide visibility and control, cloud-based RF optimization, seamless firmware updates and more. With an intuitive browser-based user interface, Meraki WLAN configures in minutes without training or dedicated staff. Adding new sites to a network takes minutes, not hours or days, and there's no need to train additional staff to monitor or manage the remote networks. Meraki devices self-provision, enabling large campus and multisite deployments without on-site IT.
Class-leading enterprise features
The MR series comes equipped with industry-leading features that make them ideal for demanding enterprise deployments:
- Self-configuring, plug-and-play deployment
- 802.11ax MU-MIMO with up to eight spatial streams, built for voice and video
- Integrated enterprise security and guest access
- Dedicated radio for security and RF optimization with integrated spectrum analysis (indoor models)
- Integrated intrusion detection and prevention system (WIDS/WIPS)
- Self-learning application-aware traffic analytics engine
- Flexible group policy engine for creating and applying application-aware policies by network, device-type, and end-user
- Integrated Bluetooth IoT radio
- Self-healing, zero-configuration mesh
- Role-based administration and automatic, scheduled firmware upgrades delivered over the web
- E-mail and text message alerts upon power loss, downtime, or configuration changes
Built from the ground up, for multi-site networks, Meraki access points have revolutionized distributed branch wireless networking. Zero-touch deployments, multi-site visibility and control, and automated alerts make deploying, securing, and centrally managing branch networks a breeze.
- Gigabit Ethernet port for ultra-fast wired network speeds
- Up to 10x faster than standard Ethernet connectivity for your wired network
- Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
- When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
Technical Specifications
Power Description
Power Consumption | 15 W |
Technical Information
Network Band | Dual Band |
Wireless Transmission Speed | 1.70 Gbit/s |
Frequency Band | 2.40 GHz |
5 GHz | |
Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
Encryption Standard | WPA3-ENT |
WPA3-Personal | |
WPA3 | |
WPA2-PSK | |
AES | |
TKIP | |
WEP | |
WPA | |
WPA2-ENT | |
Total Number of Antennas | 4 |
Number of External Antennas | 4 |
Data Encryption | Yes |
MIMO Technology | Yes |
Beamforming Technology | Yes |
Indoor/Outdoor | Outdoor |
Ingress Protection (IP) Rating | IP67 |
Interfaces/Ports
Ethernet Technology | Gigabit Ethernet |
Number of Network (RJ-45) Ports | 1 |
PoE (RJ-45) Port | Yes |
PoE PD Port | Yes |
Physical Characteristics
Weight (Approximate) | 1.34 kg |
Height | 54.9 mm |
Width | 300 mm |
Depth | 152.9 mm |
Antenna Form Factor | External |
General Information
Product Type | Wireless Access Point |
Manufacturer Part Number | MR76-HW |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | MR76 |
Product Name | MR76 Wireless Access Point |
Product Series | MR |
Brand Name | Meraki |
Price Trend
Current Price
AUD 4,275.43
