APL-MS120-24P 1G L2 CLD -MNGD 24X GIGE 3
APL-MS120-24P 1G L2 CLD -MNGD 24X GIGE 3
Product Overview

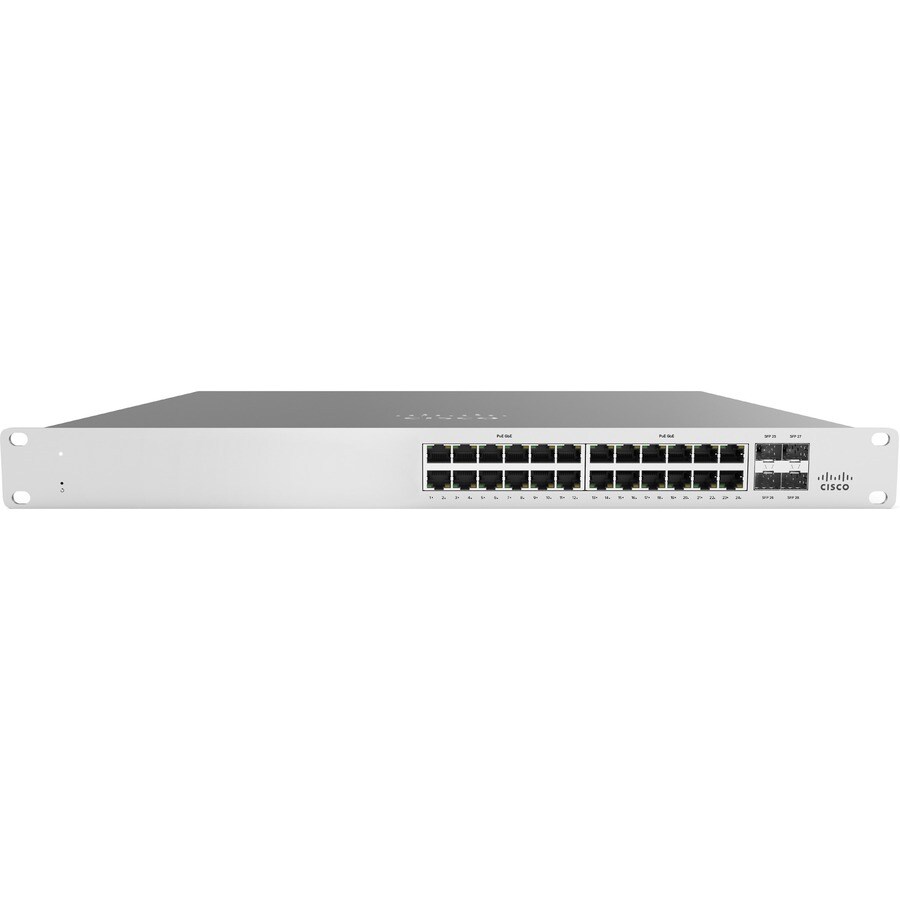

APL-MS120-24P 1G L2 CLD -MNGD 24X GIGE 370W POE SWITCH
CLOUD-MANAGED ACCESS SWITCHESCisco Meraki MS120 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of large enterprise networks.
Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.
All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files or even direct physical access to the switch.
Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Quickly and easily set up a wired network with 24 networking ports
Technical Specifications
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 2 |
Power Description
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
I/O Expansions
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 4.0 |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
| 4 x Gigabit Ethernet Uplink |
Physical Characteristics
| Weight (Approximate) | 3.71 kg |
| Form Factor | Rack-mountable |
| Desktop | |
| Height | 43.7 mm |
| Width | 439.9 mm |
| Depth | 249.9 mm |
| Compatible Rack Unit | 1U |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | MS120-24P-HW |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | MS120-24P |
| Product Name | MS120-24P Ethernet Switch |
| Product Series | MS120 |
| Brand Name | Meraki |
