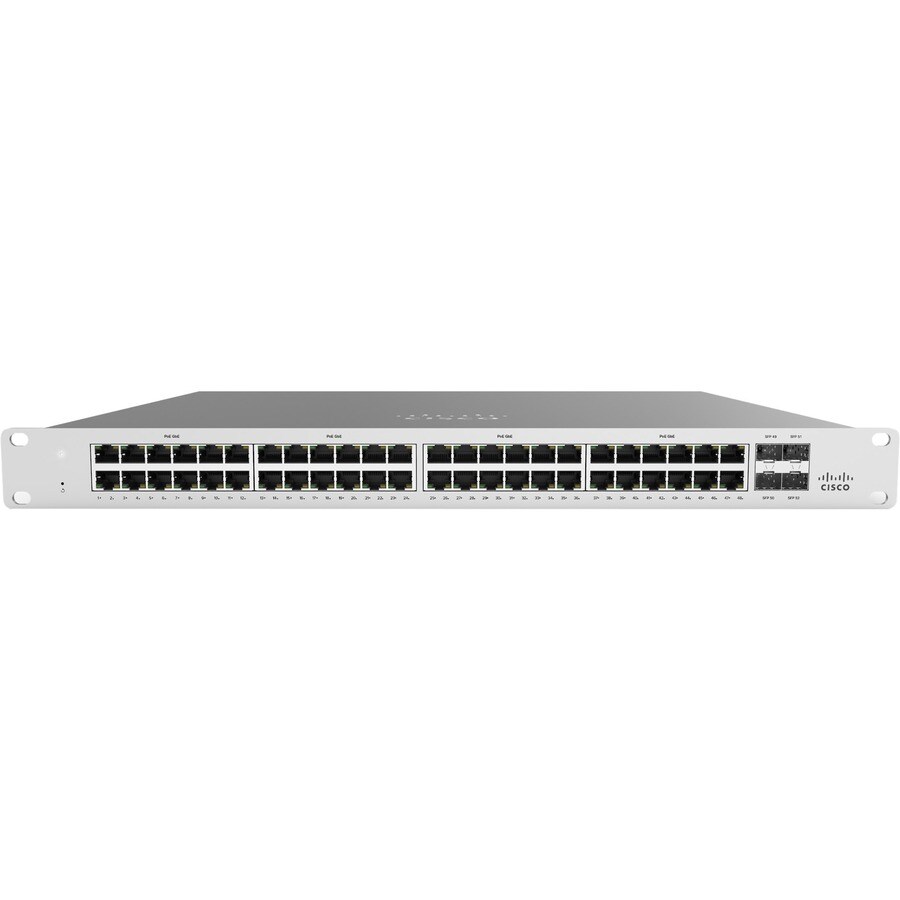

Meraki MS120-48 1G L2 Cloud Managed 48x
Meraki MS120-48 1G L2 Cloud Managed 48x
Product Overview
Meraki MS120-48 1G L2 Cloud Managed 48x
CLOUD-MANAGED ACCESS SWITCHESCisco Meraki MS120 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of large enterprise networks.
Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.
All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files or even direct physical access to the switch.
Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
INDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build networks large and small:
- True zero-touch device provisioning
- Virtual Stacking: manage up to thousands of ports from a single pane of glass
- Application-layer visibility with automatic operating system, client, and hostname fingerprinting
- Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues
- Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configurations changes
- Role-based administration and automatic, scheduled firmware upgrades over the cloud
- Regular feature updates and enhancements delivered on demand from the Meraki cloud
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
- Quickly and easily set up a wired network with 48 networking ports
Technical Specifications
Management & Protocols
Manageable | Yes |
Network & Communication
Layer Supported | 2 |
Power Description
Power Source | Power Supply |
Redundant Power Supply Supported | No |
I/O Expansions
Expansion Slot Type | SFP |
Number of SFP Slots | 4 |
Shared SFP Slot | No |
Total Number of Expansion Slots | 4.0 |
Media & Performance
Network Technology | 10/100/1000Base-T |
1000Base-X | |
Ethernet Technology | Gigabit Ethernet |
Media Type Supported | Optical Fiber |
Twisted Pair |
Interfaces/Ports
Modular | Yes |
Uplink Port | Yes |
Stack Port | Yes |
Total Number of Network Ports | 48 |
Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
4 x Gigabit Ethernet Expansion Slot |
Physical Characteristics
Weight (Approximate) | 4.07 kg |
Form Factor | Desktop |
Rack-mountable | |
Height | 43.7 mm |
Width | 439.9 mm |
Depth | 249.9 mm |
Compatible Rack Unit | 1U |
General Information
Product Type | Ethernet Switch |
Manufacturer Part Number | MS120-48-HW |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | MS120-48-HW |
Product Name | MS120-48-HW Ethernet Switch |
Product Series | MS120 |
Brand Name | Meraki |
