APL-MS120-8FP 1G L2 CLOUD MANAGED 8X GIG
APL-MS120-8FP 1G L2 CLOUD MANAGED 8X GIG
Product Overview

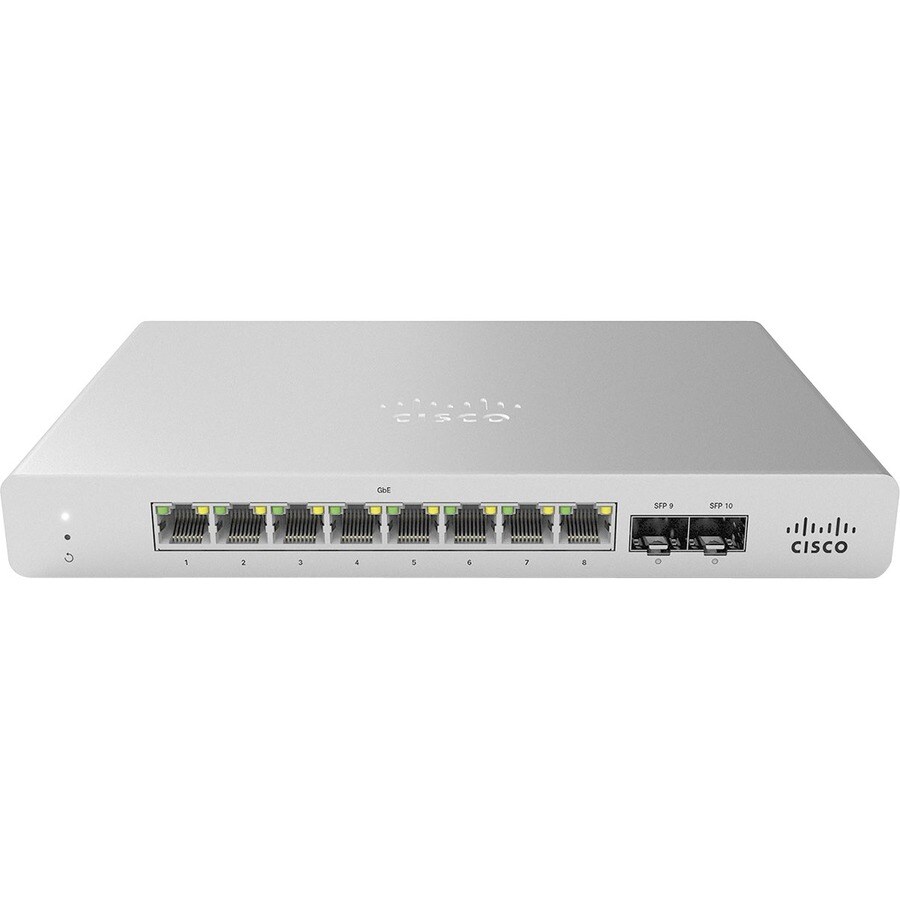

APL-MS120-8FP 1G L2 CLOUD MANAGED 8X GIGE 127W POE SWITCH
CLOUD-MANAGED COMPACT ACCESS SWITCHES
Cisco Meraki MS120-8 compact switches provide Layer 2 access switching in a fanless, compact form factor. All models include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them ideal for rapid and secure deployment to branch location.Cisco Meraki switches are built from the ground-up to be easily managed without compromising any of the power and flexibility traditionally found in enterprise-class switches.
Meraki switches are managed through an elegant, intuitive cloud interface, rather than through command line. To set up a Meraki switch, just plug it in; there's no need for complicated configuration files or even direct physical access to the switch.
Meraki's centralized management gives administrators deep visibility into the network and how it's used. For example, you can quickly see which switches are near capacity across hundreds of sites, or find all configuration changes made by a member of the team with instant search.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 8 networking ports
Technical Specifications
Management & Protocols
Manageable | Yes |
Network & Communication
Layer Supported | 2 |
Power Description
Power Source | Power Supply |
Redundant Power Supply Supported | No |
I/O Expansions
Expansion Slot Type | SFP |
Number of SFP Slots | 2 |
Shared SFP Slot | No |
Total Number of Expansion Slots | 2.0 |
Media & Performance
Network Technology | 10/100/1000Base-T |
1000Base-X | |
Ethernet Technology | Gigabit Ethernet |
Media Type Supported | Optical Fiber |
Twisted Pair |
Interfaces/Ports
Modular | Yes |
Uplink Port | Yes |
Stack Port | Yes |
Total Number of Network Ports | 8 |
Port/Expansion Slot Details | 2 x Gigabit Ethernet Uplink |
8 x Gigabit Ethernet Network |
Physical Characteristics
Weight (Approximate) | 1.55 kg |
Form Factor | Desktop |
Wall Mountable | |
Height | 44.5 mm |
Width | 227.8 mm |
Depth | 217.9 mm |
General Information
Product Type | Ethernet Switch |
Manufacturer Part Number | MS120-8FP-HW |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | MS120-8FP |
Product Name | MS120-8FP 1G L2 Cloud Managed 8x GigE 127W PoE Switch |
Product Series | MS120 |
Brand Name | Meraki |
