Product Overview

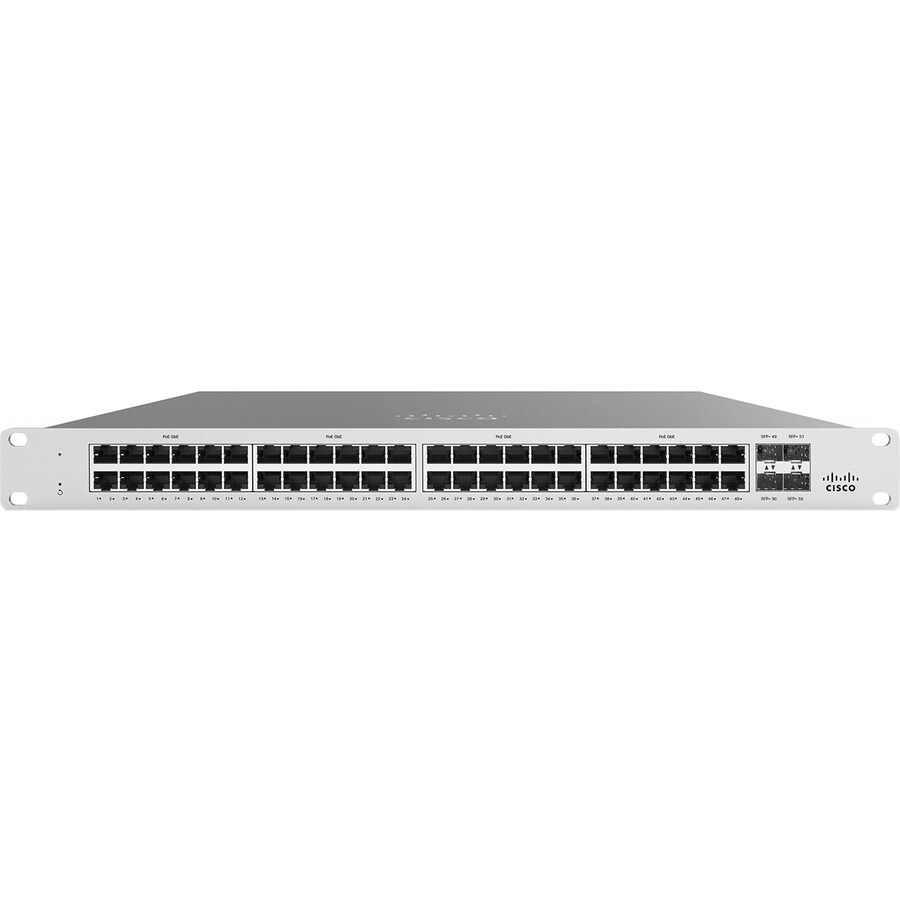

APL-MERAKI MS125-48LP 10G L2 CLD-MNGD 48X GIGE 370W POE SWITCH
CLOUD-MANAGED ACCESS SWITCHESCisco Meraki MS125 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS125 series features a variety of power options designed to meet the diverse needs of large enterprise networks.
Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.
All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line.
To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.
Meraki's centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs.
INDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build networks large and small:
- Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes
- Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
- Role-based administration
- Firmware upgrades and enhancements from the Meraki cloud
- Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
- Incredible network transparency with application, operating system, client, and hostname visibility
- Zero-touch provisioning for rapid deployment across sites
- Gigabit access switching with 24- and 48- port models and PoE+ support
- 4 x 10G SFP+ uplink interfaces on all models
- Non-blocking switch with up to 176 Gbps bandwidth support
- Fanless design on select models
- Lifetime hardware warranty and advanced replacement at no additional cost
- Up to 740 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, and other PoE-enabled devices
- 6 configurable QoS queues for converged voice, video, and data applications
- Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
Technical Specifications
Management & Protocols
Manageable | Yes |
Network & Communication
Layer Supported | 2 |
Power Description
Power Source | Power Supply |
I/O Expansions
Expansion Slot Type | SFP+ |
Number of SFP+ Slots | 4 |
Total Number of Expansion Slots | 4.0 |
Miscellaneous
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
General Information
Product Type | Ethernet Switch |
Manufacturer Part Number | MS125-48LP-HW |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | MS125-48LP-HW |
Product Name | MS125-48LP-HW Ethernet Switch |
Product Series | MS125 |
Brand Name | Meraki |
Interfaces/Ports
Modular | Yes |
Uplink Port | Yes |
Total Number of Network Ports | 48 |
Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+ |
4 x 10 Gigabit Ethernet Uplink |
Media & Performance
Network Technology | 10GBase-X |
10/100/1000Base-T | |
Ethernet Technology | Gigabit Ethernet |
10 Gigabit Ethernet | |
Media Type Supported | Twisted Pair |
Optical Fiber |
Physical Characteristics
Weight (Approximate) | 5.40 kg |
Form Factor | Rack-mountable |
Height | 43.9 mm |
Width | 439.9 mm |
Depth | 340.1 mm |
Compatible Rack Unit | 1U |
