Meraki MS130-8P-I Cloud Mgd 8GE 120W PoE
Meraki MS130-8P-I Cloud Mgd 8GE 120W PoE
Product Overview

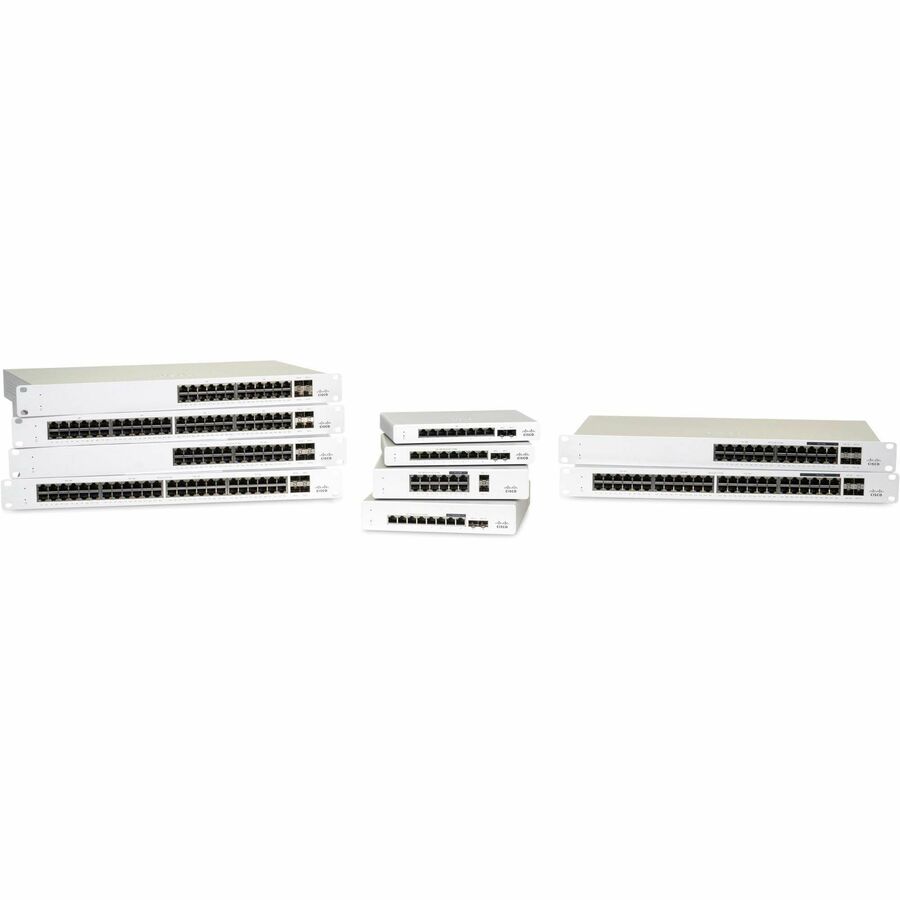

Meraki MS130-8P-I Cloud Mgd 8GE 120W PoE Switch Internal PSU
Cisco Meraki offers a broad range of switches built from the ground up that are designed to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
Meraki access and aggregation switches are all managed through an elegant, intuitive cloud interface, freeing administrators to spend less time on configuration and more time on meeting business needs.
To set up a Meraki switch, just plug it in; there's no need for repetitive, commandbased configuration. Switches can be up and running within minutes of connecting them to the network.
A powerful centralized management interface gives administrators deep visibility into the network and how it is used. See which switches are near capacity across hundreds of sites. Quickly provision and reconfigure switch ports with security, quality of service (QoS), and more. The Meraki dashboard provides unified policies, event logs, and monitoring, making switch management efficient and scalable.
- Range of enterprise switching options built on proven Cisco hardware technologies
- Basic layer 2 to high-performance layer 3 switches with up to 40 GbE uplinks on access and up to 100 GbE on aggregation switches, suitable for deployments of all sizes
- True zero-touch configuration model that scales with organization needs and requirements
- Integrated troubleshooting tools, logging, and alerting help reduce operational costs
- Energy-efficient design with low acoustics and fanless options
- Flexible stacking for scaled configuration and high performance in one
- Cloud management reduces cost, overhead, and time to resolution
- Industry-standard features allow for simple integration into existing and mixed infrastructures
- Role-based administration and automatic, secure firmware updates delivered via the web
- Stack power, improved physical stacking, and multigigabit options on select models
Technical Specifications
| Manageable | Yes |
| MTBF | 608122 Hour |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2 |
| Features | Energy Efficient |
| Zero-Touch Provisioning (ZTP) | |
| Fanless |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet SFP Expansion Slot |
| 8 x 1000Base-T Gigabit Ethernet PoE+ RJ-45 Network Port |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1Q |
| IEEE 802.1x | |
| IEEE 802.3af | |
| IEEE 802.3at |
| Network Technology | 1000Base-X |
| 10/100/1000Base-T | |
| Maximum Data Transfer Rate | 125 MB/s |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
| Power Source | PoE+ |
| Power Supply | |
| Frequency | 50 Hz |
| 60 Hz | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Application/Usage | Campus |
| Enterprise | |
| Business | |
| Branch Office | |
| Small Office | |
| Package Contents |
|
| TCO Certified | No |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | MS130-8P-I-HW |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Packaged Quantity | 1 |
| Manufacturer | Cisco Systems, Inc |
| Product Model | MS130-8P-I-HW |
| Product Name | MS130-8P-I-HW Ethernet Switch |
| Product Series | MS |
| Brand Name | Meraki |
| Weight (Approximate) | 1.30 kg |
| Form Factor | Desktop |
| Wall Mountable | |
| Compact | |
| Height | 43.2 mm |
| Width | 228.6 mm |
| Depth | 215.9 mm |
| Product Color | White |
| Color Family | White |
