Product Overview

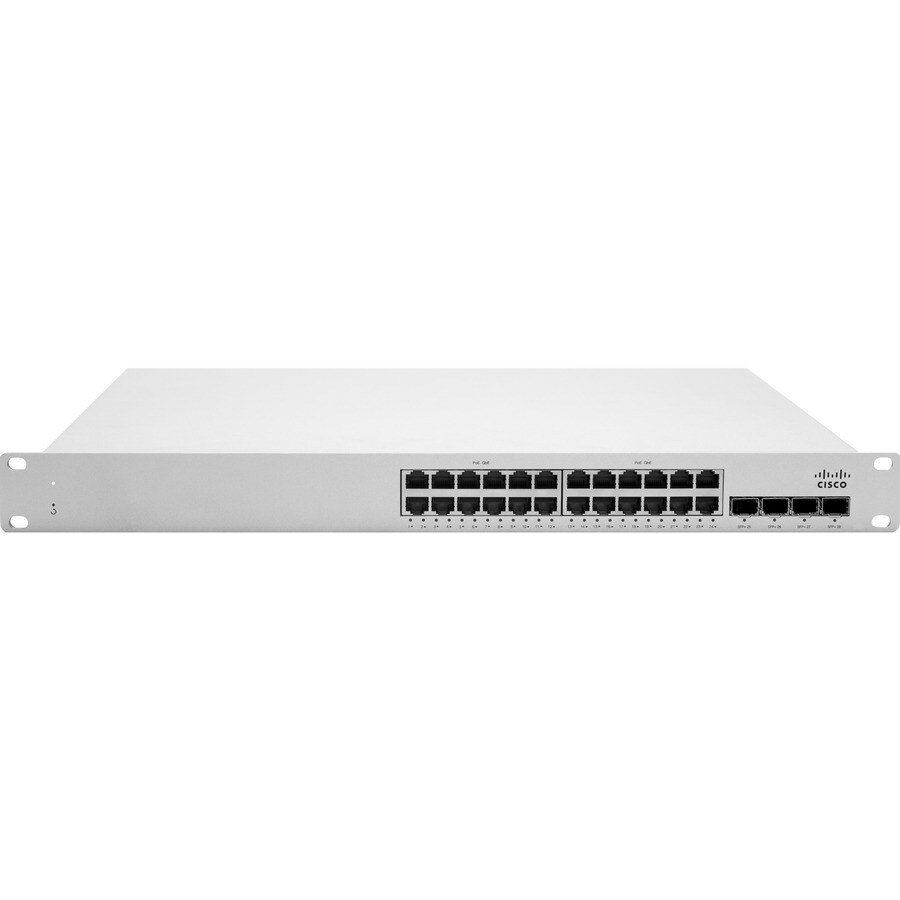

Meraki MS250-24 L3 Stck Cld-Mngd 24x GigE Switch
CLOUD MANAGED STACKABLE ACCESS SWITCHESThe Cisco Meraki MS250 series switches provide reliable access switching ideal for deploying in branches and small campuses. With stacking capabilities and 10G SFP+ uplinks on every model, redundancy and performance are guaranteed. This family also supports redundant, field-replaceable power supplies for mission critical networks.
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicatedconfiguration files, or even direct physical access to the switch.
Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
INDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build networks large and small:
- True zero-touch device provisioning
- Virtual stacking: manage up to thousands of ports from a single pane of glass.
- Application layer visibility with automatic operating system, client, and hostname fingerprinting.
- Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues.
- Alerts upon power loss, downtime, or configuration changes.
- Role-based administration and automatic, scheduled firmware upgrades over the web.
- Regular feature updates and enhancements delivered ondemand from the Meraki cloud.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- The desktop installation makes it ideal for deployments outside the wiring closet
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Quickly and easily set up a wired network with 24 networking ports
Technical Specifications
Management & Protocols
Manageable | Yes |
Network & Communication
Layer Supported | 3 |
Power Description
Power Source | Power Supply |
Redundant Power Supply Supported | Yes |
I/O Expansions
Expansion Slot Type | SFP+ |
Number of SFP+ Slots | 4 |
Shared SFP Slot | No |
Total Number of Expansion Slots | 6.0 |
Media & Performance
Network Technology | 10GBase-X |
10/100/1000Base-T | |
Ethernet Technology | 10 Gigabit Ethernet |
Gigabit Ethernet | |
Media Type Supported | Optical Fiber |
Twisted Pair |
Interfaces/Ports
Modular | Yes |
Uplink Port | Yes |
Stack Port | Yes |
Total Number of Network Ports | 24 |
Port/Expansion Slot Details | 2 x Stack |
24 x Gigabit Ethernet Network | |
4 x 10 Gigabit Ethernet Uplink |
Physical Characteristics
Weight (Approximate) | 4.49 kg |
Form Factor | Desktop |
Rack-mountable | |
Height | 43.7 mm |
Width | 484.6 mm |
Depth | 416.3 mm |
Compatible Rack Unit | 1U |
General Information
Product Type | Ethernet Switch |
Manufacturer Part Number | MS250-24-HW |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | MS250-24 |
Product Name | MS250-24 Ethernet Switch |
Product Series | MS |
Brand Name | Meraki |
Price Trend
Current Price
AUD 16,251.50
