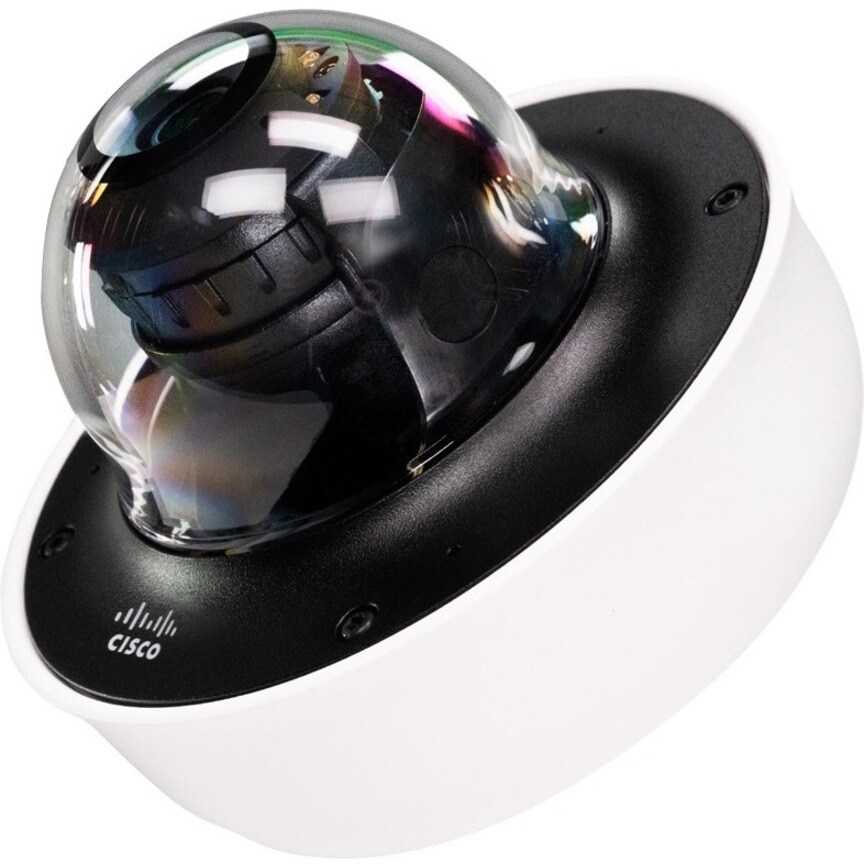

Meraki Fixed Lens MV63 Mini-dome Outdoor
Meraki Fixed Lens MV63 Mini-dome Outdoor
Product Overview
Meraki Fixed Lens MV63 Mini-dome Outdoor 4K Camera- 256GB
The Meraki MV63, part of the third generation of MV smart cameras, combines physical security and advanced analytics in a powerful, yet compact fixed-lens mini dome form factor. With an edge architecture that minimizes physical infrastructure and software requirements, MV63 enables faster, easier deployments and greater scalability.Security in high definition
The ultra-high-performance MV63 series camera supports up to 4K resolution for highdefinition video, delivering the level of detail needed to stay on top of what matters.With IK10+ and IP67 ratings, plus IR illumination, the MV63 extends visibility and safety to outdoor and demanding environments
Compact and easy to install, MV63 series cameras are compatible with a variety of mounting accessories, delivering the right viewing angle wherever they are placed. MV63 series cameras are ideal for monitoring entrances and exits, as well as the general perimeter, from walls, ceilings, or even corner-mount locations.
Using machine-learning based computer vision, MV63 cameras can perform real-time object detection, classification, and tracking of people and vehicles to increase safety and provide useful insights into activity. These smart cameras deliver powerful business intelligence without compromising physical security
- Fixed lens mini-dome camera
- Compact form factor with 102° horizontal FoV
- More detailed information with up to 4K resolution
- Night vision with IR illumination up to 20 m (66 ft)
- IK10+ and IP67 for deployment in outdoor and demanding environments
- Intelligent motion indexing with search engine
- Built-in analytics like motion search, motion recap, and motion heatmaps
- Machine-learning capability for intelligent object detection
- Secure video access to ensure privacy with role-based user accounts
- Cloud-augmented edge storage for minimal physical infrastructure
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- For remote surveillance needs, this network camera is best suited
- Network camera - Helps achieve high-quality video results
- Up to 3854 x 2176 resolution for surveillance in real-time
- Up to 3854 x 2176 video resolution
- Provides night vision of objects at a distance of up to 20 m
Technical Specifications
Interfaces/Ports
Network (RJ-45) | Yes |
Power Description
Power Source Type | PoE |
Storage
Solid State Drive Capacity | 256 GB |
Exposure
Longest Shutter Speed | 1/30 Second |
Shortest Shutter Speed | 1/32000 Second |
Network & Communication
Connectivity Technology | Wired & Wireless |
Remote Management | Yes |
Video
Video Formats | H.264 |
Maximum Video Resolution | 3854 x 2176 |
Maximum Frame Rate | 24 fps |
Display & Graphics
Color Supported | Colour |
Image Sensor Type | CMOS |
Effective Camera Resolution | 8.4 Megapixel |
Field of View | horizontal 102° |
Physical Characteristics
Weight (Approximate) | 920 g |
Form Factor | Mini Dome |
Mount Type | Box Mount |
Pole Mount | |
Pendant Mount | |
Corner Mount | |
Conduit Mount | |
Ceiling Mount | |
Wall Mount | |
Diameter | 131 mm |
Height | 95 mm |
Lens
Lens Type | Fixed |
Maximum Aperture | f/2.0 |
Maximum Focal Length | 3.30 mm |
Lens Included | Yes |
Technical Information
Night Vision | Yes |
HD Recording | Yes |
Night Vision Distance | 20 m |
Night Vision Type | Infrared |
General Information
Product Type | Network Camera |
Manufacturer Part Number | MV63-HW |
Manufacturer Website Address | http://www.cisco.com/c/en_au |
Manufacturer | Cisco Systems, Inc |
Product Model | MV63X |
Product Name | MV63 Cloud-Managed Smart Camera |
Brand Name | Meraki |
Miscellaneous
Features | Built-in Infrared Illuminator |
Day/Night | |
Built-in Microphone | |
Built-in IR LED | |
Indoor/Outdoor | Outdoor |
Impact Protection Rating | IK10+ |
Ingress Protection Rating | IP67 |
