Product Overview
NEXUS 31108-VXLAN 32 X 10GT AND 6C/6Q

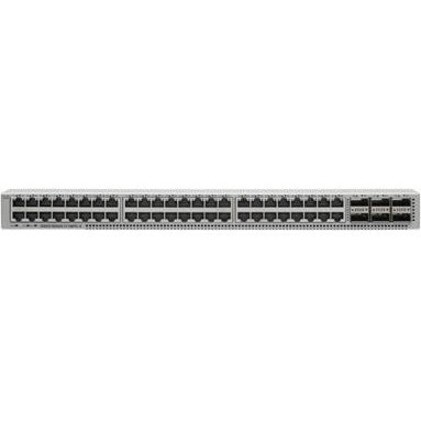

The Cisco Nexus 31108TCV-32T is the Cisco Nexus 31108TC-V with 32 10GBASE-T ports and 6 QSFP+ ports enabled. The ports are enabled through software licensing. This switch provides a cost-effective solution for customers who require up to 32 10GBASE-T ports per rack. This switch comes with a 32-10GBASE-T port license preinstalled. To enable the remaining 16 10GBASE-T ports, the customer installs the 16-port upgrade license.
- 40 Gigabit Ethernet for efficient data transfer and fast connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 32 ports
Technical Specifications
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 3 |
Power Description
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
I/O Expansions
| Expansion Slot Type | QSFP+ |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 6.0 |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | No |
| Stack Port | No |
| Total Number of Network Ports | 32 |
| Port/Expansion Slot Details | 6 x 40 Gigabit Ethernet Expansion Slot |
| 32 x 10 Gigabit Ethernet Network |
Media & Performance
| Network Technology | 40GBase-X |
| 10GBase-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| 40 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
Physical Characteristics
| Weight (Approximate) | 9.98 kg |
| Form Factor | Rack-mountable |
| Height | 43.7 mm |
| Width | 439.4 mm |
| Depth | 566.4 mm |
| Compatible Rack Unit | 1U |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | N3K-C31108TCV-32T= |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 31108TCV-32T |
| Product Name | Nexus 31108TCV-32T Ethernet Switch |
| Product Line | Nexus |
| Product Series | 3000 |
| Brand Name | Cisco |
Price Trend
Current Price
AUD 45,562.66
