Product Overview
NEXUS 36180YC-R 48P 10/25G AND 6P QSFP28

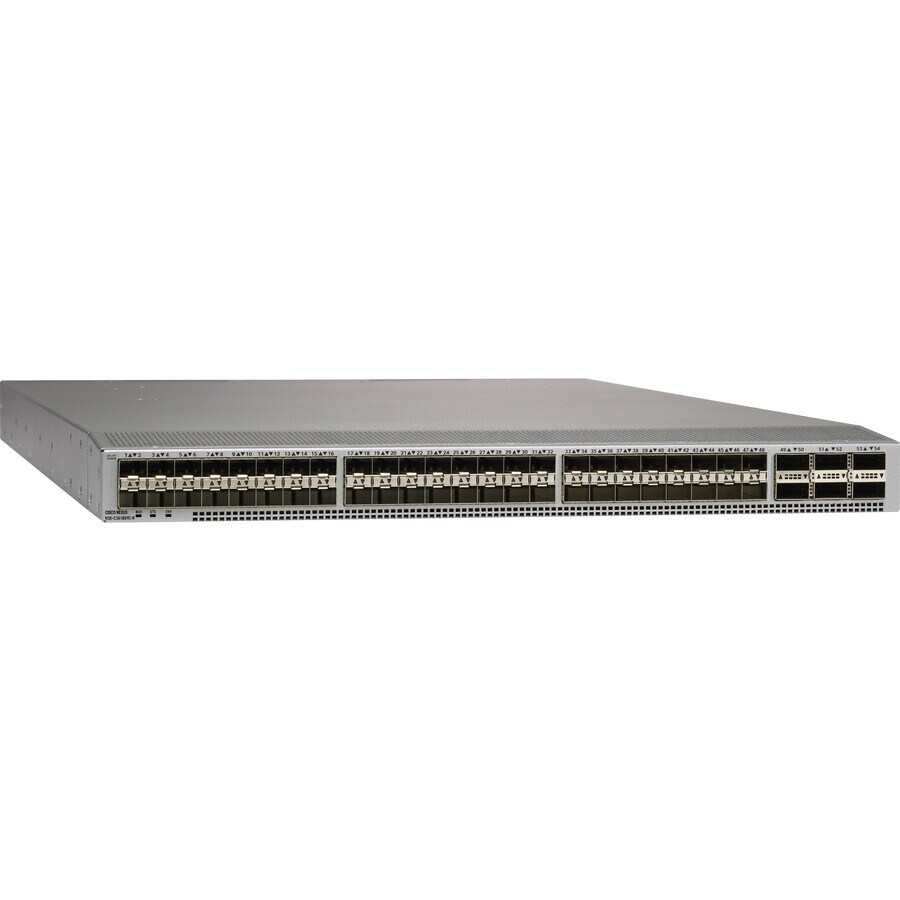

The Cisco Nexus® C36180YC-R is a high-speed, high-density, 1, 10, 25, 40, or 100 Gigabit Ethernet switch designed for data center aggregation. The large buffers and routing table sizes of the Cisco Nexus C36180YC-R also make this switch an alternative for a wide range of applications, such as IP storage, Demilitarized Zone (DMZ), big data, and edge routing. The switch comes in a compact 1-Rack-Unit (1RU) form factor and provides extensive Layer 2 and Layer 3 functions. It is part of the R-Series family and runs the industry-leading NX-OS operating system software.
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Management capability provides control over setup and configuration of your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
Technical Specifications
| Manageable | Yes |
| Layer Supported | 3 |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x 25 Gigabit Ethernet Expansion Slot |
| 6 x 100 Gigabit Ethernet Expansion Slot |
| Product Type | Switch Chassis |
| Manufacturer Part Number | N3K-C36180YC-R |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 36180YC-R |
| Product Name | Nexus 36180YC-R Switch Chassis |
| Product Line | Nexus |
| Product Series | 3000 |
| Brand Name | Cisco |
| Expansion Slot Type | SFP (mini-GBIC) |
| QSFP28 | |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 54.0 |
| Network Technology | 25GBase-X |
| 100GBase-X | |
| Ethernet Technology | 100 Gigabit Ethernet |
| 25 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Weight (Approximate) | 12.29 kg |
| Form Factor | Rack-mountable |
| Height | 43.7 mm |
| Width | 682 mm |
| Depth | 439.4 mm |
| Compatible Rack Unit | 1U |
