N7 B650E MOBO AMD B650 CHIPSET WITH WI-F
N7 B650E MOBO AMD B650 CHIPSET WITH WI-F
Product Overview

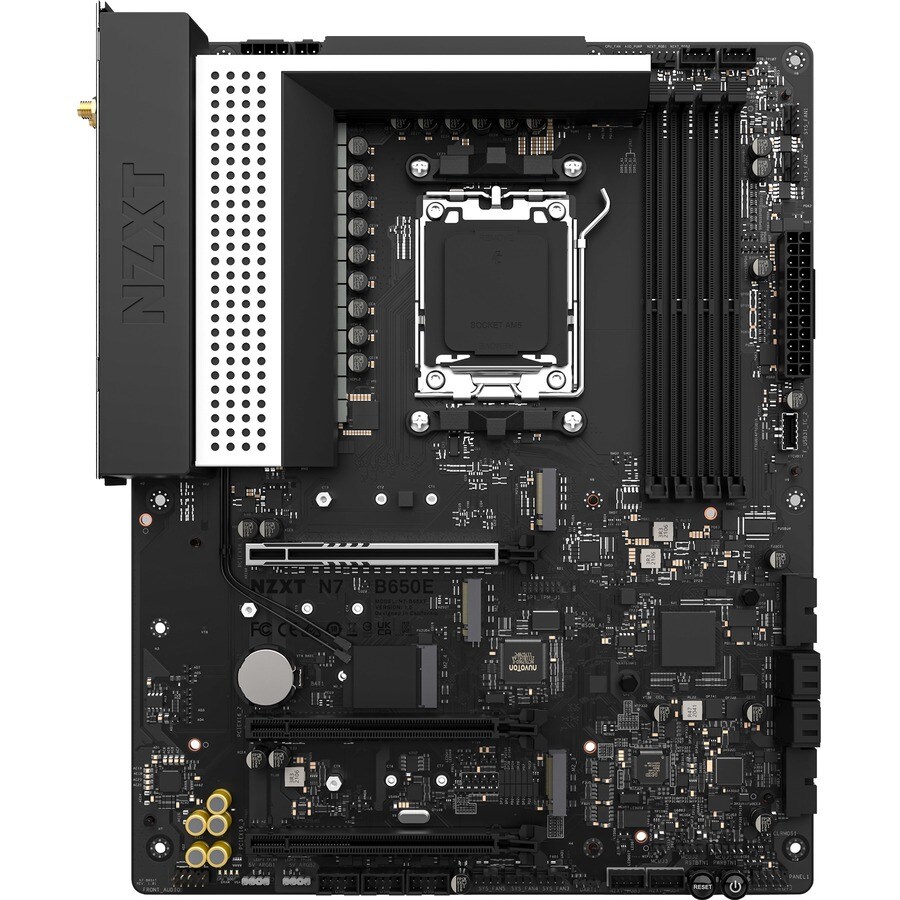

NZXT N7-B65XT-W1 Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX - Ryzen 7 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11ax - Yes - 4 x SATA Interfaces
This motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B650E chipset.
- Seamless cover with integrated heat spreader
- Digital RGB lighting control through CAM
- Digital fan control for convenient fan profiles with seven independent fan channels
- Integrated rear I/O shield and efficient layout
- 16+2+1 Power phase design with 90A Smart Power Stage(SPS)
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- Supported 0 RAID levels provide data reliability and fault tolerance
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11ax wireless standard support
- DDR5 SDRAM slot for convenient installation of memory
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
- Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
Technical Specifications
Audio
| Audio Channels | 7.1 |
Video
| Onboard Video | CPU Dependent Video |
I/O Controller
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Physical Characteristics
| Form Factor | ATX |
| Product Color | White |
| Color Family | White |
Processor & Chipset
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Chipset Manufacturer | AMD |
Memory
| Maximum Memory Supported | 128 GB |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM |
Onboard Interfaces
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 12 |
| Number of Onboard USB 2.0 Ports | 6 |
| Number of M.2 Interfaces | 3 |
General Information
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | N7-B65XT-W1 |
| Manufacturer Website Address | http://www.nzxt.com |
| Manufacturer | NZXT Corporation |
| Product Model | N7-B65XT-W1 |
| Product Name | N7-B65XT-W1 Desktop Motherboard |
| Brand Name | NZXT |
I/O Expansions
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express 4.0 | |
| Total Number of PCI Express Slots | 3 |
| Total Number of Expansion Slots | 3.0 |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Brand Compatibility | AMD |
| Energy Efficiency Compliance | Energy-using Products Directive Ready (EuP Ready) |
| Energy-related Products Directive (ErP) |
Network & Communication
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5.2 |
| 2.5Gigabit Ethernet | Yes |
Interfaces/Ports
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
