Nexus 9300 with 48p 10/25G SFP+
Nexus 9300 with 48p 10/25G SFP+
Product Overview

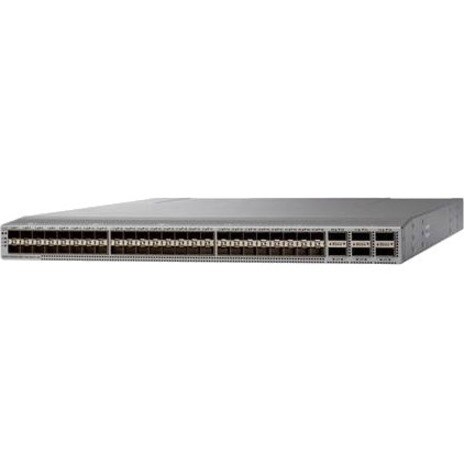

Nexus 9300 with 48p 10/25G SFP+ and 6p 100G QSFP28
The Cisco Nexus® 9300-EX platform is the next generation of the fixed Cisco Nexus 9000 Series Switches. Cisco Nexus 9300-EX platform switches are built on modern system architecture designed to provide high performance to meet the evolving needs of highly scalable data centers. They offer a variety of interface options available to transparently migrate existing data centers from 100-Mbps, 1-Gbps, and 10-Gbps speeds to 25 Gbps at the server, and from 10 and 40 Gbps to 50 and 100 Gbps at the aggregation layer.
The Cisco Nexus 9300-EX platform provides investment protection for customers, with deep buffers, high Layer 2 and Layer 3 scalability and performance to meet the changing needs of highly virtualized, automated cloud environments in data centers. The Cisco Nexus 9300-EX platform hardware supports Cisco® Data Center Interconnect (DCI) features, enabling flexible workload mobility and LAN and SAN convergence.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
Technical Specifications
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Layer Supported | 3 |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 6 x 40 Gigabit Ethernet Expansion Slot |
| 48 x 10 Gigabit Ethernet Expansion Slot |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | N9K-C93180YC-EX |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Packaged Quantity | 2 |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 93180YC-EX |
| Product Name | Nexus 93180YC-EX Switch |
| Product Line | Nexus |
| Product Series | 9300 |
| Brand Name | Cisco |
| Expansion Slot Type | SFP+ |
| QSFP | |
| Number of SFP+ Slots | 48 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 54.0 |
| Network Technology | 10GBase-X |
| 40GBase-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| 40 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Weight (Approximate) | 7.80 kg |
| Form Factor | Rack-mountable |
| Height | 43.7 mm |
| Width | 439.4 mm |
| Depth | 571.5 mm |
| Compatible Rack Unit | 1U |
