2xNexus 9336C-FX2 w/ 8x 100G Optics
2xNexus 9336C-FX2 w/ 8x 100G Optics
Product Overview
2xNexus 9336C-FX2 w/ 8x 100G Optics

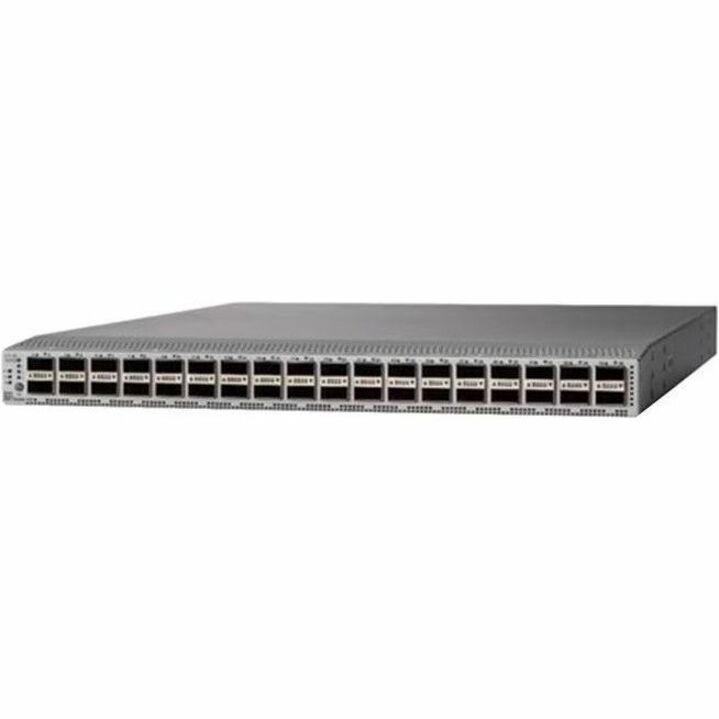

The Cisco Nexus 9336C-FX2 Switch is a 1RU switch that supports 7.2 Tbps of bandwidth and over 2.8 bpps. The switch can be configured to work as 1/10/25/40/100-Gbps offering flexible options in a compact form factor. All ports support wire-rate MACsec encryption. Breakout is supported on all ports.
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
Technical Specifications
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 3 |
I/O Expansions
| Expansion Slot Type | QSFP28 |
| Number of SFP+ Slots | 1 |
| Total Number of Expansion Slots | 36.0 |
Media & Performance
| Network Technology | 100GBase-X |
| Ethernet Technology | 100 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | N9KC9336CFX2B2 |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 9336C-FX2 |
| Product Name | Nexus 9336C-FX2 Ethernet Switch |
| Product Line | Nexus |
| Product Series | 9300 |
| Brand Name | Cisco |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 36 x 100 Gigabit Ethernet Expansion Slot |
Power Description
| Power Source | Power Supply |
| Power Consumption | 367 W |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
Physical Characteristics
| Weight (Approximate) | 8.53 kg |
| Form Factor | Rack-mountable |
| Height | 43.7 mm |
| Width | 439.4 mm |
| Depth | 622.3 mm |
| Compatible Rack Unit | 1U |
