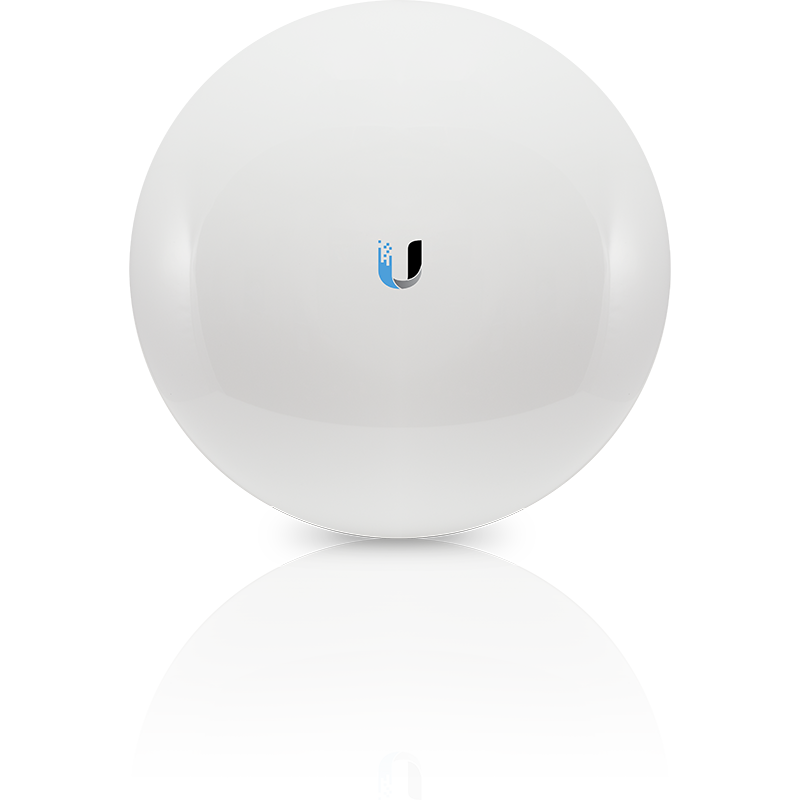

NBE-2AC-13
Product Overview
| Mechanical | |
|---|---|
| Dimensions | 189 x 189 x 125 mm (7.4 x 7.4 x 4.9") |
| Weight | 530 g (1.2 lb) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mount kit (Included) Wall mount (Not included) Window mount (Not included) |
| Wind loading | 45.4 N at 200 km/h (10.2 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max. power consumption | 7.5W |
| ESD/EMP protection | Air/contact: ± 24kV |
| LEDs | Power, Ethernet, (4) signal strength |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 13 dBi |
| Channel sizes PtP Mode PtPM Mode | 10/20/40 MHz 10/20/40 MHz |
| Max. VSWR | 1.5:1 |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| USA | 2412 - 2462 MHz |
| Management Radio (MHz) | |
| Worldwide | 5150 - 5250 MHz |
| US/CA | U-NII-3: 5725 - 5850 MHz |
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 189 x 189 x 125 mm (7.4 x 7.4 x 4.9") |
| Weight | 530 g (1.2 lb) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mount kit (Included) Wall mount (Not included) Window mount (Not included) |
| Wind loading | 45.4 N at 200 km/h (10.2 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max. power consumption | 7.5W |
| ESD/EMP protection | Air/contact: ± 24kV |
| LEDs | Power, Ethernet, (4) signal strength |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 13 dBi |
| Channel sizes PtP Mode PtPM Mode | 10/20/40 MHz 10/20/40 MHz |
| Max. VSWR | 1.5:1 |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| USA | 2412 - 2462 MHz |
| Management Radio (MHz) | |
| Worldwide | 5150 - 5250 MHz |
| US/CA | U-NII-3: 5725 - 5850 MHz |
