CAT6A U/FTP CABLE 23AWG WITH PVC JACKET
CAT6A U/FTP CABLE 23AWG WITH PVC JACKET
Product Overview

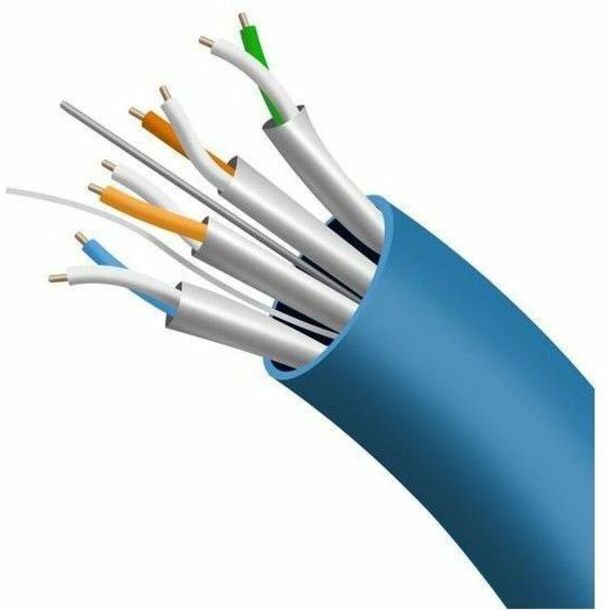

D-Link 305 m Category 6a Network Cable - Cable for Network Device - 10 Gbit/s - 23 AWG - Blue
High Performance Cable for 10Gigabit Networking
As the need for streaming video, multimedia and high-speed data transmission continues to increase at an exponential rate, D-Link Solid Copper Network Cables are ideal as a cost-effective yet high-performance solution. They support a higher signal-to-noise ratio providing better reliability for existing applications as well as 10Gbps support for higher performance needs into the future.
Cat6A Cable
Cat6A cable is specified by TIA/EIA-568C.2 for enhanced performance standards for twisted pair cable systems. Cat6A cables perform significantly better on the back of these improved specifications, in particular when focused on crosstalk, when compared to Cat6 cables, allowing speeds of up to 10Gbps (versus 1Gbps for Cat6 Cables).
D-Link has opted for enhanced 23 AWG solid bare copper, providing a more reliable and improved performance profile when comparing to the specifications, allowing a 500MHz frequency to support data at 10BASE-T, 100BASE-TX, 1000BASE-T and 10GBASE-T (10 Gigabit Ethernet) speeds.
REELEX Packaging System
The 305m cable reel is supplied in licensed REELEX packaging which is the world's preferred method of packaging cables. It offers a unique and patented way of coiling cables without twists, tangles, overruns or pigtails and improves deployment performance.
Environmentally Friendly Packaging
The REELEX Packaging System is eco-friendly and all the materials used in the packaging can be recycled, reducing environmental impact with a significantly reduced waste profile.
- Cat 6A Network Cable suitable for up to 10 Gigabit networking speeds
- 23AWG Solid Bare Copper
- U/FTP - Unshielded Foiled Twisted Pair
- Long Distance PoE and PoE+ Support
- High Purity Oxygen-Free Copper
- RoHS Compliant PVC Jacket
- 305m in licenced REELEX Packaging System - No tangles, No twists, No overruns, No pigtails. Less waste, Less environmental impact
- Fluke Tested
- Conforms to ANSI/TIA-568-C.2, ISO/IEC 11801, EN 50288
- FCC, CPR, ISO, CE, ROHS, TLC certified
- Australian RCM Certified
Technical Specifications
| Environmentally Friendly | Yes |
| Cable Length | 305 m |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Network Device |
| Shielding | No |
| Features | Tangle Resistant |
| Twist Resistant | |
| PoE++ | |
| PoE+ | |
| PoE | |
| Crosstalk Protection | |
| Tensile Strength | |
| Number of Conductors | 8 |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| American Wire Gauge | 23 AWG |
| Number of Pairs | 4 |
| Product Type | Network Cable |
| Manufacturer Part Number | NCB-6AUFS23BLU-305 |
| Manufacturer Website Address | http://www.dlink.com.au |
| Manufacturer | D-Link Systems, Inc |
| Product Name | Cat6A U-FTP 23AWG Network Cable, 305m in Reelex packaging, Blue |
| Brand Name | D-Link |
| Material Details |
|
| Insulation Material | Foam Polyethlene (FPE) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shielding Material | Aluminum Foil |
| Product Color | Blue |
| Color Family | Blue |
| Product Material | Metal |
| Oxygen-free Copper (OFC) | |
| PVC | |
| Copper | |
| Bare Copper |
