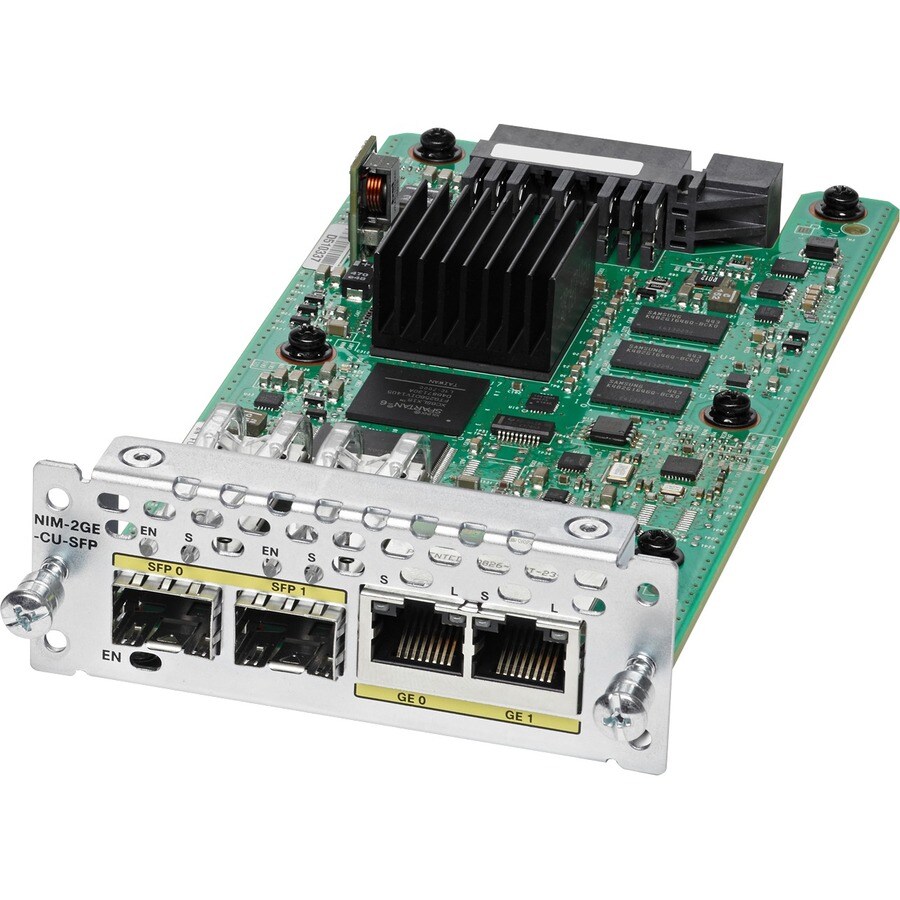

2-PORT GE WAN NIM DUAL-MODE RJ45 / SFP
2-PORT GE WAN NIM DUAL-MODE RJ45 / SFP
Product Overview
PYP:2-PORT GE WAN NIM. DUAL-MODE RJ45 / SFP
Cisco® Gigabit Ethernet WAN Modules bring high-density Small Form-Factor Pluggable (SFP) and copper (RJ-45) 1 Gigabit and 10 Gigabit Ethernet (GE) connectivity to the Cisco 4000 Series Integrated Services Routers (ISRs). Providing maximum flexibility, the modules accelerate applications such as Ethernet WAN access, inter-VLAN routing, and high-speed connectivity to LAN switches and servers.
The ports on these modules work as routed Layer 3 ports. Layer 2 switching between local ports on the module or between ports on the module and other ports within the router system is not supported. The port terminates Layer 2 trunks from externally connected switches, and Layer 2 trunk and VLAN information is not switched onto other ports in the system. The host router routes all traffic entering these modules.
Cisco Gigabit Ethernet WAN Modules do not support Power over Ethernet (PoE).
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With 1000Base-T technology, get up to 1000Mbps data transfer rate over supported network cable
Technical Specifications
| Total Number of Ports | 2 |
| Compatibility | Cisco 4000 Series Integrated Services Routers |
| Application/Usage | Wide Area Network |
| Expansion Slot Type | SFP (mini-GBIC) |
| Total Number of Expansion Slots | 2 |
| Network Technology | 1000Base-T |
| 1000Base-X | |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Weight (Approximate) | 240 g |
| Height | 31.8 mm |
| Width | 88.9 mm |
| Depth | 183.9 mm |
| Product Type | WAN Module |
| Manufacturer Part Number | NIM-2GE-CU-SFP |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Name | 2-Port Gigabit Ethernet WAN Network Interface Module |
| Brand Name | Cisco |
