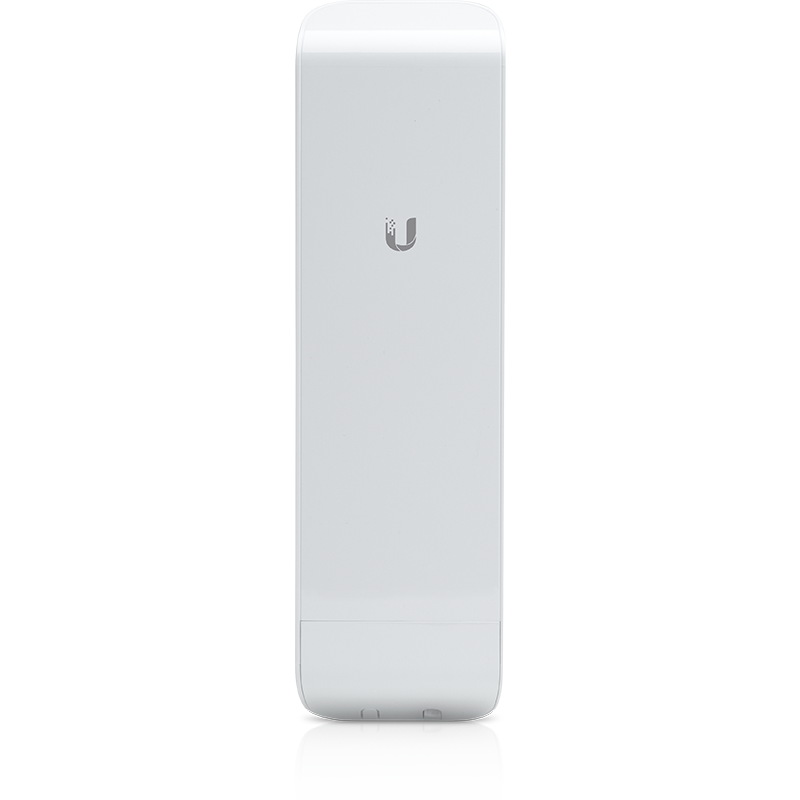

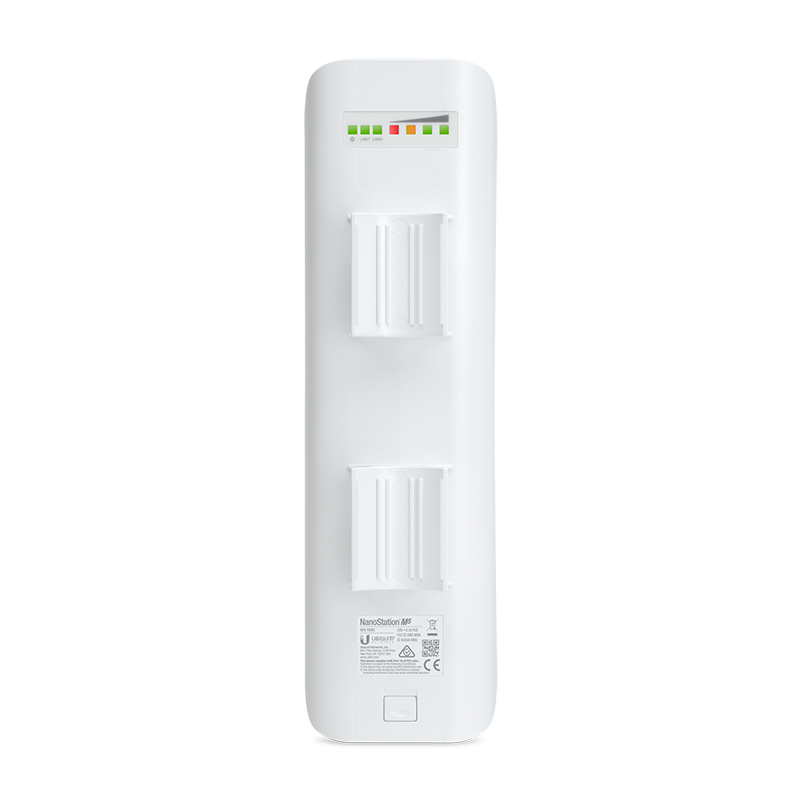

airMAX NanoStation M5
Product Overview
Hardware | |
|---|---|
Dimensions | 294 x 31 x 80 mm (11.6 x 1.3 x 3.2") |
Weight | 400 g (14.1 oz) |
Enclosure material | Outdoor UV-stabilized plastic |
Mounting | Pole-mount (Kit included) |
Hardware | |
Networking interface | (2) 10/100 MbE RJ45 ports |
Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
Power supply | 24V, 0.5A PoE adapter (Included) |
Supported voltage range | 22–27V DC |
Max. power consumption | 8W |
Ambient operating temperature | -30 to 75° C (-22 to 167° F) |
Operating Humidity | 5 to 95% noncondensing |
Shock & vibration | ETSI300-019-1.4 |
Certifications | FCC, ICC, CE, RoHS |
System | |
Frequency | 5 GHz |
Operating frequency Worldwide USA USA DFS | 5170-5875 MHz 5725-5850 MHz 5250-5850 Mhz |
Gain | 14.6-16.1 dBi |
Cross-pol isolation | 22 dB Min. |
Max. VSWR | 1.6:1 |
Beamwidth | 43° (H-pol) / 41° (V-pol) / 15° (Elevation) |
Polarization | Dual Linear |
Technical Specifications
Hardware | |
|---|---|
Dimensions | 294 x 31 x 80 mm (11.6 x 1.3 x 3.2") |
Weight | 400 g (14.1 oz) |
Enclosure material | Outdoor UV-stabilized plastic |
Mounting | Pole-mount (Kit included) |
Hardware | |
Networking interface | (2) 10/100 MbE RJ45 ports |
Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
Power supply | 24V, 0.5A PoE adapter (Included) |
Supported voltage range | 22–27V DC |
Max. power consumption | 8W |
Ambient operating temperature | -30 to 75° C (-22 to 167° F) |
Operating Humidity | 5 to 95% noncondensing |
Shock & vibration | ETSI300-019-1.4 |
Certifications | FCC, ICC, CE, RoHS |
System | |
Frequency | 5 GHz |
Operating frequency Worldwide USA USA DFS | 5170-5875 MHz 5725-5850 MHz 5250-5850 Mhz |
Gain | 14.6-16.1 dBi |
Cross-pol isolation | 22 dB Min. |
Max. VSWR | 1.6:1 |
Beamwidth | 43° (H-pol) / 41° (V-pol) / 15° (Elevation) |
Polarization | Dual Linear |
Price Trend
Current Price
AUD 162.73
Compatible Products
Need Technical Support?
Get expert advice from our technical team for installation and configuration help.
Contact Support
