4G LTE CAT M1 NB1 IOT INDUSTRIAL MODEM

4G LTE CAT M1 NB1 IOT INDUSTRIAL MODEM

4G LTE CAT M1 NB1 IOT INDUSTRIAL MODEM

Product Overview

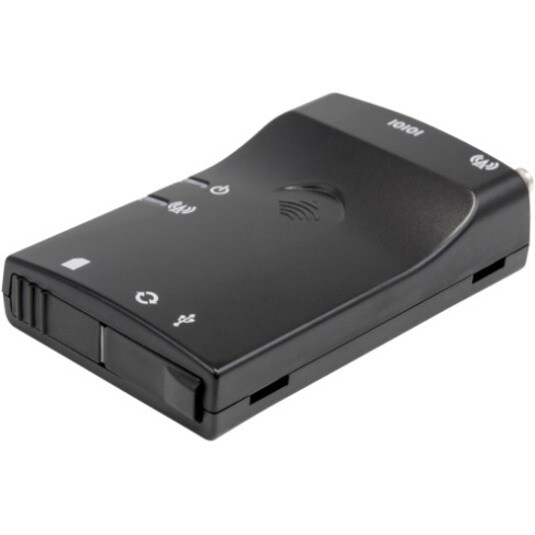

Netcomm NTC-100 Radio Modem

4G LTE CAT M1 / NB1 NETCOMM INDUSTRIAL IOT SERIAL MODEM

Technical Specifications

Interfaces/Ports
Network (RJ-45)No
USB StandardUSB 2.0
Miscellaneous
Additional Information
    UE CATEGORY
    • Cat M1/NB1
    • 3GPP E-UTRA Release 13
    CELLULAR BANDS
    • LTE-FDD:
      • Band 1 (2100 MHz)
      • Band 2 (1900 MHz)
      • Band 3 (1800 MHz)
      • Band 4 (1700 MHz)
      • Band 5 (850 MHz)
      • Band 8 (900 MHz)
      • Band 12 (700 MHz)
      • Band 13 (700 MHz)
      • Band 18 (850 MHz)
      • Band 19 (850 MHz)
      • Band 20 (800 MHz)
      • Band 28 (700 MHz)
    • LTE-TDD: Band 39 (1900 MHz, Cat. M1 only)
    • EGPRS:
      • 850 MHz
      • 900 MHz
      • 1800 MHz
      • 1900 MHz
    PEAK DATA SPEED
    • Cat M1: 375 Kbps / 375 Kbps (Downlink / Uplink)
    • Cat NB1: 32 Kbps / 70 Kbps (Downlink / Uplink)
    • GPRS: 107 Kbps / 85.6 Kbps (Downlink / Uplink)
    • EDGE: 296 Kbps / 236.8 Kbps (Downlink / Uplink)
    ANTENNA CONNECTORS
    • 1 x SMA Connector
    INTERFACES
    • 1 x SIM card slot (2FF)
    • 1 x USB 2.0 (Device only): Micro-B receptacle
    • 1 x 10-pin NANO-fit (locking) connector providing Serial interface (RS-232 / RS-422 / RS-485)
      • 15kV RMS Protection
    RESET BUTTON
    • Recessed reset button with two functions:
      • Reboot
      • Reset unit to factory defaults
    MODES OF OPERATION
    • PPP
    • IP
    • Advanced diagnostics and control via SMS
      • Query status information - such as Signal Strength, WAN IP, uptime, and many more
      • Configure device remotely via SMS such as APN, authentication settings, and many more
      • Execute commands via SMS - such as reboot, reset to defaults, go offline, and many more
      • Secure SMS management using sender whitelisting and password protection
      • SMS acknowledgement replies for queries and commands
    CELLULAR CONNECTION MANAGEMENT
    • Profile managed packet data connections
    • SIM PIN protection
    • Automatic and manual cellular band selection
    • Automatic and manual operator selection
    FIRMWARE MANAGEMENT
    • Firmware upgrade locally via USB or remotely Over-The-Air
    • Triggered firmware upgrade via SMS (initiate download & install from FTP)
    POWER SUPPLY
    • Power input via 10-pin NANO-fit connector
    • DC Power input (4.5 - 36 V DC)
    • Minimum power input rating of 4 W
    TEMPERATURE & HUMIDITY
    • Operating temperature range: -30ºC to +70ºC
    • Storage temperature range: -40ºC to +85ºC
    • Non-condensing humidity: 5-95% RH @ 60ºC
    MOUNTING OPTIONS
    • Wall mountable via mounting holes
    • DIN Rail mount support via included plastic bracket (Top hat section rail TH 35 IEC60715)
    ENCLOSURE
    • IP40 rated
    CERTIFICATIONS (PENDING)
    • Approvals: ACMA / RCM / CE /IC / FCC / GCF / PTCRB
Package Contents
  • 4G LTE Cat M1/NB1 Industrial IoT Serial Modem
  • 1 x Quick Start Guide
  • 1 x DIN Rail Mounting Bracket
  • 1 x Y-Cable (Nano-Fit to DE-9 and DC Power Input)
FeaturesWi-Fi
GPRS
Environmentally FriendlyYes
General Information
Product TypeRadio Modem
Manufacturer Part NumberNTC-100-01-01
Manufacturer Website Addresshttp://www.netcommwireless.com
ManufacturerNetComm Wireless Limited
Product ModelNTC-100
Product Name4G LTE Cat M1/NB1 Industrial IoT Serial Modem
Brand NameNetcomm
