ONLINE 10000VA RACK/TOWER OL UPS 2YRSWTY
ONLINE 10000VA RACK/TOWER OL UPS 2YRSWTY
Product Overview

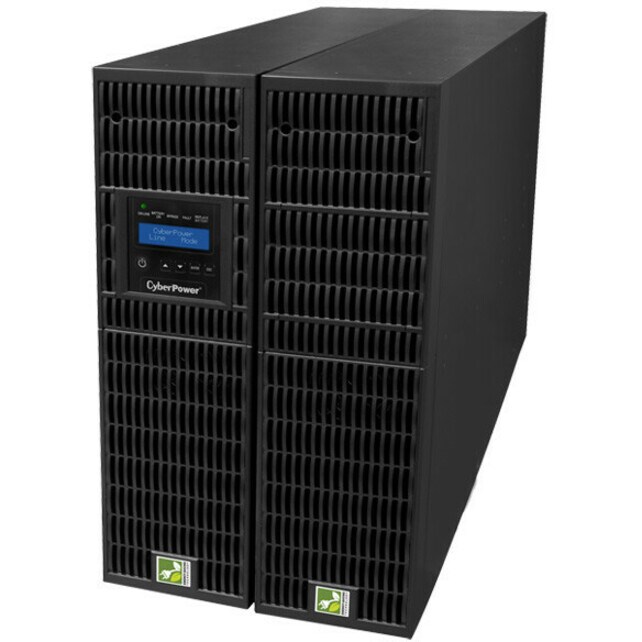

CyberPower Smart App Online OL10000ERT3UP Double Conversion Online UPS - 10 kVA/9 kW - 3U Rack/Tower - 5 Hour Recharge - 5 Minute Stand-by - 110 V AC, 220 V AC Input - 240 V AC, 208 V AC, 220 V AC Output - 2 x IEC 60320 C19 - Serial Port - USB - SNMP/HTTP Remote Monitoring
The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
- Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
- 10 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 9 kW load capacity
Technical Specifications
| Network Management | SNMP/HTTP Remote Monitoring |
| Additional Warranty Information | 3 years advanced replacement warranty on product and 2 years on internal batteries |
| USB | Yes |
| Serial Port | Yes |
| Package Contents |
|
| Certifications & Standards | CE |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 28.50 kg |
| Rack Height | 3U |
| Height | 132 mm |
| Width | 433 mm |
| Depth | 820 mm |
| Bypass Switch | Manual |
| Dataline Protection | RJ-45 |
| RJ-11 | |
| Emergency Power OFF | Yes |
| Plug/Connector Type | Hard Wire 3-wire |
| Receptacle Type | Hard Wire 3-wire |
| IEC 60320 C19 | |
| IEC 60320 C13 | |
| Transfer Time | 0 ns |
| Receptacle Detail | 2 x IEC 60320 C19 |
| 8 x Hard Wire 3-wire | |
| 1 x IEC 60320 C13 |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Number of Batteries | 20 |
| Backup/Run Time (Half Load) | 15 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Maintenance-free |
| Typical Battery Recharge Time | 5 Hour |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | OL10000ERT3UP |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OL10000ERT3UP |
| Product Name | Smart App Online OL10000ERT3UP 10000VA Tower/Rack Mountable UPS |
| Product Line | Smart App Online |
| Brand Name | CyberPower |
| Input Voltage | 110 V AC |
| 220 V AC | |
| Output Voltage | 208 V AC |
| 220 V AC | |
| 240 V AC | |
| 230 V AC | |
| Load Capacity (VA) | 10 kVA |
| Load Capacity (Watt) | 9 kW |
