Product Overview

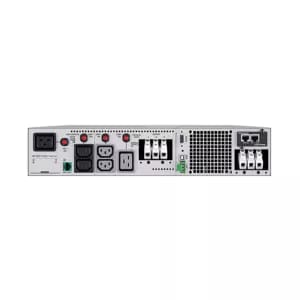

CyberPower Smart App Double Conversion Online UPS - 6 kVA/6 kW - 2U Rack/Tower - 4 Hour Recharge - 1.40 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC Output - 4 x IEC 60320 C13, 2 x IEC 60320 C19 - Single Phase - Pure Sine Wave - Serial Port - 7 x Battery/Surge Outlet

CyberPower OL6KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output in a compact design. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and comes with additional ECO Mode to conserve power and save on energy costs. The UPS can employ Extended Battery Modules (EBM) to prolong runtimes, and adopts patented Battery Management Technology to balance battery string voltage for optimal battery lifespan. This model also features tiltable color LCD panel that allows users to monitor key power and battery information at a glance. The PowerPanel® Power Management Software allows user to perform real-time monitoring and remote management of the UPS.

  • Keep your sensitive devices powered with a backup of up to 1.40 minute at full load
  • 6 kVA load capacity provides sufficient backup during power failures
  • Prevent critical data loss by staying powered during a blackout with up to 6 kW load capacity

Technical Specifications

Controls/Indicators
Status Indicators

    LCD Display:

    • Operating Mode
    • Power Indicator
    • Battery Status
    • Load Status
    • Error & Warning
    • More Information
    • Event & Log

    LCD Setting & Control:

    • Mode Settings
    • Alarm Setting
    • Input & Output
    • Battery Settings
    • Error & Warning
    • Communication
    • Event & Log
    • Security Settings
    • Language
Miscellaneous
Environmentally FriendlyYes
Energy StarYes
Interfaces/Ports
Serial PortYes
EPO PortYes
USB (HID Compliant) PortYes
Environmental Conditions
Thermal Dissipation1613 BTU/h
Maximum Operating Temperature40°C
Maximum Operating Elevation3 km
Sound Emission (A-Weighted)66 dB(A)
Management
Network ManagementSNMP/HTTP Remote Monitoring
AlarmBattery Change
Over Temperature
Overload
Low Battery
Technical Information
Application/UsageWorkstation
Security System
Telecommunication
Supermarket
SOHO Office
Server
Airport
Computer
Data Center
Emergency System
Factory
IT Equipment
Network Storage Device
Railway Station
Satellite Equipment
Video Surveillance
Overload ProtectionYes
PhaseSingle Phase
Receptacle TypeIEC 60320 C13
Terminal Block
IEC 60320 C19
EMI/RFI Noise FilterYes
Energy SavingOnline ECO Mode Efficiency > 96%
Number of Battery & Surge Outlets7
Number of Critical Load Outlets4
Transfer Time0 ns
Receptacle Detail2 x IEC 60320 C19
4 x IEC 60320 C13
1 x Terminal Block
Physical Characteristics
Weight (Approximate)42 kg
Rack Height2U
Height86.4 mm
Width431.8 mm
Depth718.8 mm
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberOL6KERTHD
Manufacturer Website Addresshttps://www.cyberpower.com/au
ManufacturerCyberPower Systems, Inc
Product NameSmart App 6KVA Rack/Tower UPS
Product LineSmart App
Brand NameCyberPower
Battery Information
Battery ChemistryLead Acid
Hot SwappableYes
Battery Size12V
Battery Capacity7000 mAh
Backup/Run Time (Half Load)4.90 Minute
Backup/Run Time (Full Load)1.40 Minute
Battery CharacteristicsValve-regulated
Replaceable BatteryYes
DC System Voltage12 V DC
Typical Battery Recharge Time4 Hour
Number of External Battery Cabinets10
Power Description
Input Voltage230 V AC
Output Voltage208 V AC
200 V AC
220 V AC
240 V AC
230 V AC
Surge Energy Rating2430 J
Waveform TypePure Sine Wave
Input Voltage Range180 V AC - 280 V AC
Output Frequency60 Hz
Input Frequency60 Hz
Load Capacity (VA)6 kVA
Load Capacity (Watt)6 kW
