ONLINE S PREMIUM 6000VA/6000W
ONLINE S PREMIUM 6000VA/6000W
Product Overview

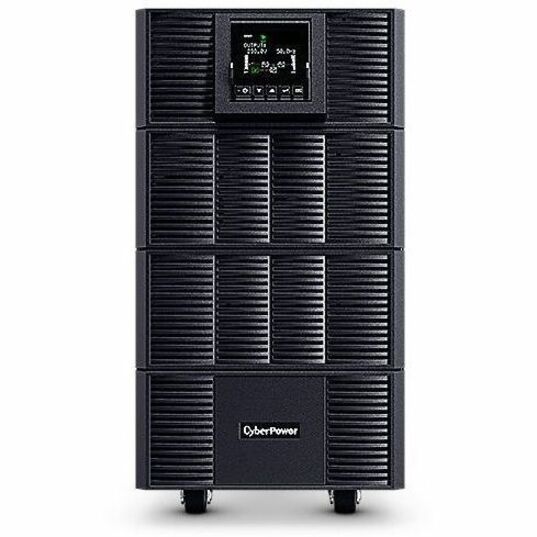

CyberPower Online S OLS6KE Double Conversion Online UPS - 6 kVA/6 kW - Tower - 4 Hour Recharge - 5.60 Minute Stand-by - 230 V AC, 120 V AC Input - 200 V AC, 208 V AC, 220 V AC Output - 1 x Hardwire Terminal Block - Pure Sine Wave - Serial Port - USB - LCD Display - Dry Contact, SNMP/HTTP Remote Monitoring
The online double-conversion UPS with tiltable Colour LCD panel and Extended Battery Module auto-detection for effcient power management
Designed for oce and data centre applications, the Online S (Premium) Series adopts double-conversion topology to provide seamless Pure Sine Wave output. With an output power factor of 1, this series provides more usable power for critical devices. The tiltable Colour LCD panel provides an intuitive interface, enabling users to easily monitor the system and configure the settings. The auto-detection of Extended Battery Modules (EBM) helps estimate UPS's runtime by identifying the number of connected EBMs. Furthermore, the battery charging current is adjustable via LCD setting to shorten charging time. The products also provide relay-type dry contacts to support local management from specific UPS signals. In addition, Remote Cloud Card is included for selected products to make remote monitoring and multi-location management much easier.
SERIES FEATURES
- Online (Double Conversion) UPS Topology
- ECO Mode
- High Output Power Factor
- Pure Sine Wave Output
- UPS Parallel Expansion
- Overload Protection
- Maintenance Bypass Switch
- Adjustable Charging Current
- Extended Battery Module Auto-detection
- Colour LCD Panel
- Tiltable LCD Panel
- Relay-type Dry Contact
- Emergency Power Off (EPO) Port
- PowerPanel Management Software
- Built-in Remote Cloud Card by Ethernet
- Zero Transfer Time
- Up to 5.60 minute runtime on full load to preserve critical data from power shortage interruptions
- 6 kVA load capacity provides sufficient backup during power failures
- Prevent critical data loss by staying powered during a blackout with up to 6 kW load capacity
Technical Specifications
| Display | LCD |
| Network Management | Dry Contact |
| SNMP/HTTP Remote Monitoring |
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Thermal Dissipation | 1777 BTU/h |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
| Height | 520 mm |
| Width | 270 mm |
| Depth | 460 mm |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Voltage | 240 V AC |
| 200 V AC | |
| 208 V AC | |
| 220 V AC | |
| 230 V AC | |
| Input Current | 30 A |
| Surge Energy Rating | 1335 J |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 110 V AC - 300 V AC |
| Output Frequency | 50 Hz |
| 60 Hz | |
| Input Frequency | 50 Hz |
| 60 Hz | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 17.70 Minute |
| Backup/Run Time (Full Load) | 5.60 Minute |
| Battery Characteristics | Sealed |
| Typical Battery Recharge Time | 4 Hour |
| USB | Yes |
| Network (RJ-45) | Yes |
| Number of USB Ports | 1 |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | OLS6KE |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OLS6KE |
| Product Name | Online S OLS6KE 6000VA Tower UPS |
| Product Line | Online S |
| Brand Name | CyberPower |
| Application/Usage | Mission Critical Equipment |
| Office | |
| Critical System | |
| Data Center | |
| Features | Built-in Bypass Switch |
| Overload Protection | Yes |
| Plug/Connector Type | Hardwire Terminal Block |
| Receptacle Type | Hardwire Terminal Block |
| EMI/RFI Noise Filter | Yes |
| Transfer Time | 0 ns |
| Receptacle Detail | 1 x Hardwire Terminal Block |
