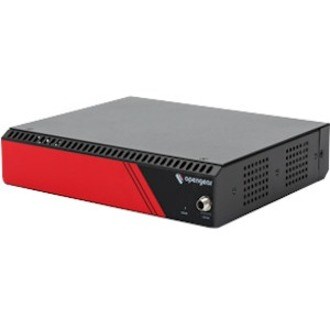

CONSOLE SERVER + AUTOMATION 4 SERIAL 2GB

CONSOLE SERVER + AUTOMATION 4 SERIAL 2GB

CONSOLE SERVER + AUTOMATION 4 SERIAL 2GB

Product Overview

4 Port NetOps Console Server, 2GB RAM, 16GB Flash, 1GbE, Secure Boot, 4 Year Warranty

Opengear OM appliances are NetOps Console Servers - Network Management appliances that combine the capabilities of a SmartOOB™ Console Server with the flexibility of NetOps Automation.

The compact OM1200 appliance is designed specifically for secure edge deployments, used in combination with Lighthouse Management Software. As a key component of Opengear's Network Resilience Platform, it provides the Presence & Proximity at every location that supports emerging requirements in Network Management and Automation.

Features
  • Half-width, shallow depth, 1RU form factor
  • Cost-effective 4 or 8 Serial port-only models
  • Mixed-port models: 4 or 8 Serial, 4 or 8 Ethernet
  • Global LTE interface (non-cellular optional)
  • x86 platform; embedded physical security
  • Python runtime, Docker container support

Technical Specifications

Media & Performance
Media Type SupportedTwisted Pair
Technical Information
Device TypeConsole Server
Memory
Standard Memory1.95 GB
Memory TechnologyDRAM
Network & Communication
Network Standard10/100/1000Base-T
Ethernet TechnologyGigabit Ethernet
Processor & Chipset
Processor Speed1.40 GHz
Processor ManufacturerAMD
Miscellaneous
Additional Information

    Environmental:

    • Operating Temperature: 5°C to 50°C, 41°F to 122°F
    • Storage Temperature: -40°C to +75°C, -40°F to +167°F
    • Humidity: 5% to 90%
    • Environmental Monitoring: Internal temperature sensor and external serial EMD5000 device supports physical, smoke, water leak, vibration sensors
    • MTBF: 100,000 Hours (Power Supply)
    Security, Encryption & Authentication:
    • Trusted Platform Module 2.0
    • AAA - TACACS+, RADIUS, Active Directory/OpenLDAP, Kerberos, with local fallback
    • Embedded Firewall
    • IPSec and OpenVPN
    Automation & Scalability:
    • Opengear NetOps Modules
    • Perl and bash support
    • Docker support
    • ZTP Python and Ruby
    • SNMP-Standard MIBs
Package Contents
  • OM1200 Operations Manager
  • 1 x Rack Mount Kit
  • 1 x DB9F-RJ45 Crossover
  • 4 x Rubber Feet
  • 1 x 12V Global Power Supply
  • Start-Up / Safety Instructions Card
Certifications & Standards
    Emissions:
    • EN 62311:2008
    • EN 62133 :2013
    • EN 301 489-1 V2.1.1(2017-02)
    • EN 301 489-19 V2.1.1 (2019-04)
    • EN 301 489-52 V1.1.0 (2016-11)
    • FCC Part 15 Subpart B:2015
    • ICES-003 Issue 6
    Immunity:
    • EN 55032:2012
    • EN 55035:2017
    • EN 61000-3-2:2014
    • EN 6100-3-3:2013
    • EN 301 908-1, 2, 13 V13.1.1
    • EN 303 413 V1.1.1 NAPRD03 V5.37
    Other Agency Approvals:
    • CE
    • IEC 6950-1
    • IEC 62368-1
    • CAN/CSA-C22.2
    • Security features to support NERC CIP standards
Environmentally FriendlyYes
Interfaces/Ports
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports4
Serial PortYes
Number of Serial Ports4
Physical Characteristics
Weight (Approximate)1 kg
Height42 mm
Width220 mm
Depth170 mm
Power Description
Input Voltage230 V AC
120 V AC
12 V DC
Power Consumption25 W
General Information
Product TypeDevice Server
Manufacturer Part NumberOM1204
Manufacturer Website Addresshttp://www.opengear.com
ManufacturerOpengear
Product ModelOM1204
Product NameOM1200 Operations Manager
Product SeriesOM1200
Brand NameOpengear
