Smart App LCD 1000VA / 600W 1U Line Inte
Smart App LCD 1000VA / 600W 1U Line Inte
Product Overview

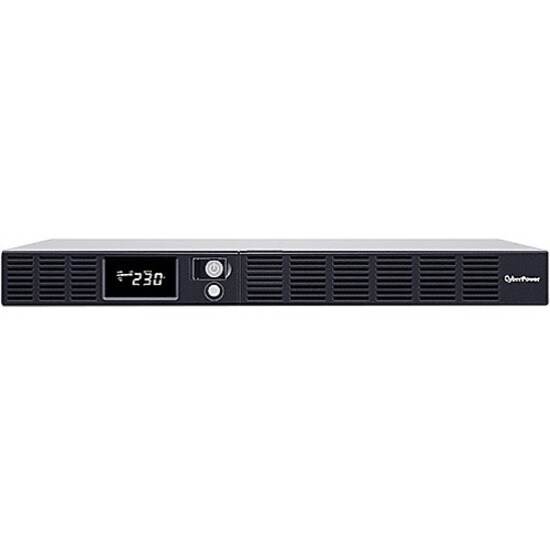

CyberPower Smart App OR1000ERM1U Line-interactive UPS - 1 kVA/600 W - 1U Rack-mountable - AVR - 8 Hour Recharge - 3.50 Minute Stand-by - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 - Single Phase - Serial Port - 4 x Battery/Surge Outlet
CyberPower OR1000ERM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It's typically integrated in the back office, server room, and data center environment to ensure a reliable backup power supply during power failures. In addition, the rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.
The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
- Works adequately in situations where the supply is prone to sags and surges
- Up to 3.50 minute runtime on full load to preserve critical data from power shortage interruptions
- 1 kVA load capacity provides sufficient backup during power failures
- Prevent critical data loss by staying powered during a blackout with up to 600 W load capacity
Technical Specifications
| Status Indicators |
LCD Information Display: LED Indicators: |
| Environmentally Friendly | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Thermal Dissipation | 24 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3.05 km |
| Maximum Storage Elevation | 15.24 km |
| Application/Usage | Train Station |
| Telecommunication | |
| Airport | |
| Computer | |
| Workstation | |
| Surveillance System | |
| Supermarket | |
| SOHO Office | |
| Server Room | |
| Security System | |
| POS Terminal | |
| Office | |
| Network Storage Device | |
| Network Device | |
| Multimedia Device | |
| Factory | |
| Data Center | |
| Dataline Protection | RJ-11 |
| RJ-45 | |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C14 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 2 |
| Transfer Time | 4 ms |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| UPS Fault | |
| Low Battery | |
| Overload |
| Weight (Approximate) | 13.70 kg |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 431.8 mm |
| Depth | 388.6 mm |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 14 Minute |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OR1000ERM1U |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OR1000ERM1U |
| Product Name | Smart App OR1000ERM1U 1000VA Rack-mountable UPS |
| Product Line | Smart App |
| Brand Name | CyberPower |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Surge Energy Rating | 810 J |
| Waveform Type | Simulated Sine Wave |
| Input Voltage Range | 165 V AC - 271 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 600 W |
