Smart App LCD 600VA / 360W 1U Line Inter
Smart App LCD 600VA / 360W 1U Line Inter
Product Overview
CyberPower Office Rackmount OR600ERM1U-AU Line-interactive UPS - 600 VA/360 W - Rack-mountable - AVR - 8 Hour Recharge - 4 Minute Stand-by - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 - Single Phase - Serial Port - 4 x Battery/Surge Outlet
CyberPower OR600ERM1U-AU Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It's typically integrated in the back office and server room environment to ensure a reliable backup power supply during power failures.The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
- Line-interactive UPS Topology
- Simulated Sine Wave Output
- Overload Protection
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- USB Connectivity Port
- SNMP/HTTP Remote Management Capability (Optional)
- Energy Saving Technology
- Automatic Voltage Regulation (AVR)
- Hot-swappable Batteries
Technical Specifications
Controls/Indicators
| Status Indicators | LED Indicators: Power On |
Interfaces/Ports
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
Environmental Conditions
| Thermal Dissipation | 20 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 1.50 km |
Management
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Overload |
| Battery Mode | |
| Low Battery | |
| UPS Fault |
Physical Characteristics
| Weight (Approximate) | 7.80 kg |
| Height | 43.2 mm |
| Width | 431.8 mm |
| Depth | 236.2 mm |
| Product Color | Silver |
| Color Family | Silver |
Technical Information
| Application/Usage | Office |
| Network Device | |
| Server Room | |
| Workstation | |
| Computer Peripheral | |
| Tablet PC | |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C14 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 2 |
| Transfer Time | 4 ms |

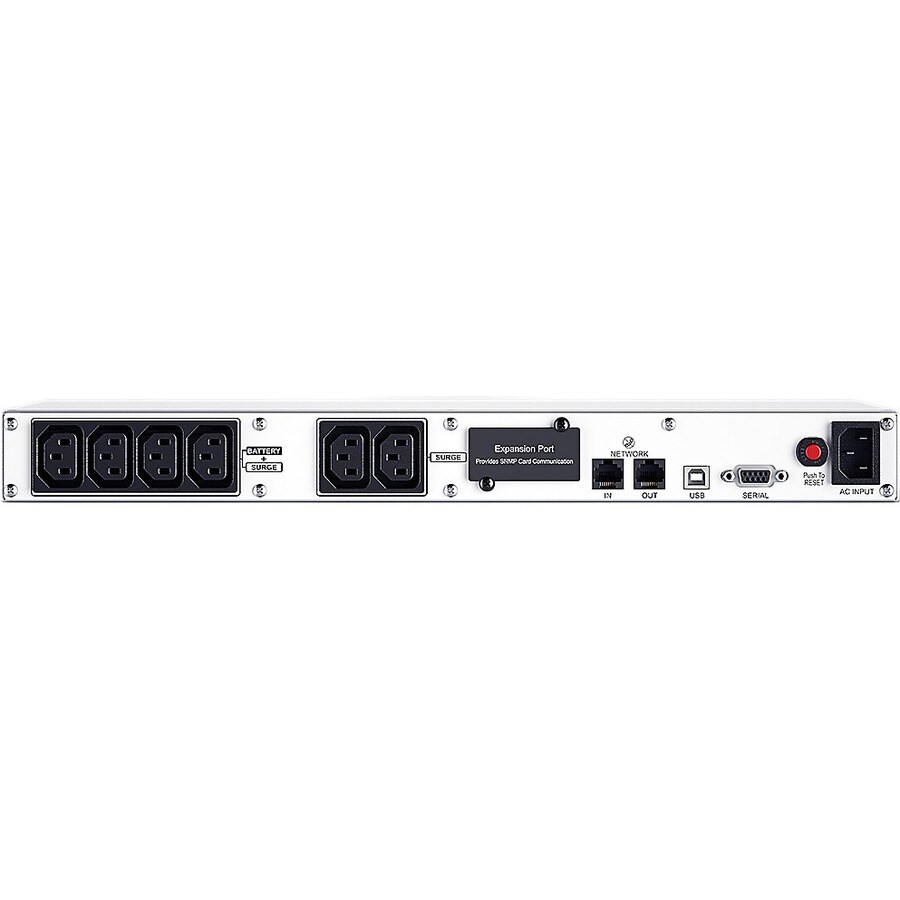

| Receptacle Detail | 6 x IEC 60320 C13 |
Battery Information
| Battery Life | 2 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 13 Minute |
| Backup/Run Time (Full Load) | 4 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | OR600ERM1U-AU |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OR600ERM1U-AU |
| Product Name | Office Rackmount OR600ERM1U-AU 600VA Rack-mountable UPS |
| Product Line | Office Rackmount |
| Brand Name | CyberPower |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Surge Energy Rating | 405 J |
| Waveform Type | Simulated Sine Wave |
| Input Voltage Range | 165 V AC - 271 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 600 VA |
| Load Capacity (Watt) | 360 W |
