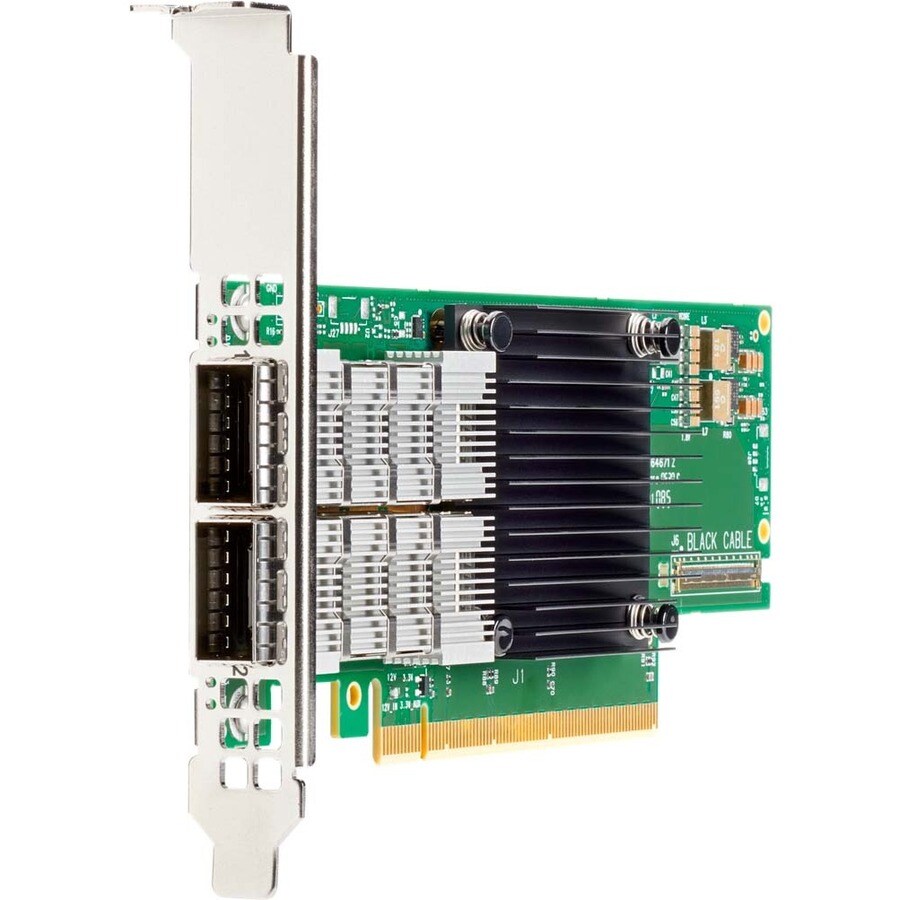

HPE IB HDR/EN 200GB 2P QSFP56 ADPTR
HPE IB HDR/EN 200GB 2P QSFP56 ADPTR
Product Overview
HPE 200Gigabit Ethernet Card for Server - QSFP56 - Standup - PCI Express 4.0 x16 - OCP 3.0 Bracket Height - 2 Port(s) - Coaxial
Key Features | Low-Latency, High-Bandwidth InfiniBand Connectivity
HPE HDR InfiniBand adapters deliver up to 200Gbps bandwidth and a sub-microsecond latency for demanding HPC workloads.
The HPE InfiniBand HDR100 adapters, combined with HDR switches and HDR cables, are aimed at simplified infrastructure by reducing the number of required switches for a given 100Gbps InfiniBand fabric.
HPE HDR InfiniBand adapters are supported on the HPE Apollo XL and HPE ProLiant DL Gen10 and Gen10 Plus servers.
Offloading Mechanisms
HPE HDR InfiniBand adapters include multiple offload engines that speed up communications by delivering a low CPU overhead for increasing throughput.
HPE HDR InfiniBand adapters support MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.
- The HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on standard Mellanox ConnectX-6 technology.
- The HDR InfiniBand and Ethernet adapters are now available in the OCP 3.0 form factor with support for HPE iLO shared network port in Ethernet mode.
Technical Specifications
| Expansion Slot Type | QSFP56 |
| Total Number of Ports | 2 |
| Product Type | 200Gigabit Ethernet Card |
| Manufacturer Part Number | P31324-B21 |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | 200Gigabit Ethernet Card |
| Brand Name | HPE |
| Media Type Supported | Coaxial |
| Environmentally Friendly | Yes |
| Weight (Approximate) | 27.4 g |
| Form Factor | Standup |
| Height | 214.9 mm |
| Width | 246.9 mm |
| Depth | 62 mm |
| Bracket Height | OCP 3.0 |
