HPE DL345 Gen10+ 7232P 1P 32G 8LFF Svr
HPE DL345 Gen10+ 7232P 1P 32G 8LFF Svr
Product Overview

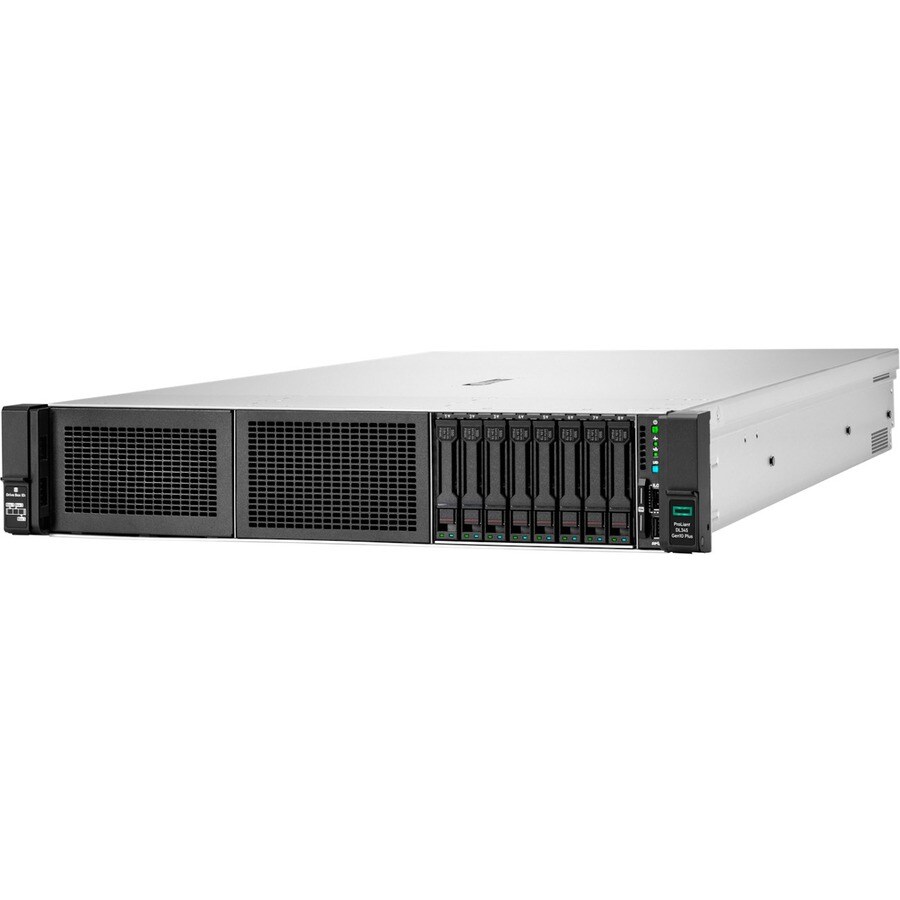

HPE ProLiant DL345 G10 2U Rack Server - 1 x AMD EPYC 7232P 3.10 GHz - 32 GB RAM - AMD Chip - 1 Processor Support - 1 TB RAM Support - DDR4 SDRAM - Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x LFF Bay(s) - Hot Swappable Bays - 1 x 500 W
The HPE ProLiant DL345 Gen10 Plus server is redefining price/performance with the new math for virtualized compute. Powered by the latest AMD® EPYC® 7003 Series Processors, the HPE ProLiant DL345 Gen10 Plus server offers greater processing power, faster memory speeds up to 3200 MT/s. and increased data transfer rates with PCIe Gen4 capabilities.
This 1P, 2U server has been designed with flexibility while delivering a high core count and large memory footprint. Choose this purpose-built platform for virtualization, High Performance Compute and memory centric workloads.
- Gigabit Ethernet port for ultra-fast network speeds
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 500 W power supply unit (PSU) for your system's power requirements
- With 32 GB memory, you can multitask between applications smoothly
Technical Specifications
| Chipset Manufacturer | AMD |
| Graphics Memory Capacity | 16 MB |
| Number of Hard Drives | No |
| Additional Warranty Information | 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage with NBD response |
| Security Features |
|
| Energy Star | Yes |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | Smart Array P408i-a SR |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 500 W |
| Number of Total Expansion Bays | 8 |
| "Number of 3.5"" Bays" | 8 |
| Total Number of Expansion Slots | 3.0 |
| Hot Swappable Bays | Yes |
| Number of LFF Bays | 8 |
| Maximum Memory Supported | 1 TB |
| Standard Memory | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 1 |
| Total Number of Memory Slots | 16.0 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of VGA Ports | 1 |
| Number of USB 3.1 Type-A Ports | 4 |
| Weight (Approximate) | 26.12 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 87.5 mm |
| Width | 445.4 mm |
| Depth | 749 mm |
| Product Type | Server |
| Manufacturer Part Number | P39265-B21 |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL345 G10 Plus Server |
| Product Line | ProLiant |
| Product Series | DL345 G10 |
| Brand Name | HPE |
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 7.6 |
| Windows Server 2019 | |
| Windows Server 2016 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 8.3 | |
| SUSE Linux Enterprise Server 12 SP5 |
| Cache | 32 MB |
| Processor Speed | 3.10 GHz |
| Processor Type | EPYC |
| Processor Model | 7232P |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | AMD |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
