HPE DL20 GEN10+ E-2314 1P 16G 2LFF SVR
HPE DL20 GEN10+ E-2314 1P 16G 2LFF SVR
Product Overview

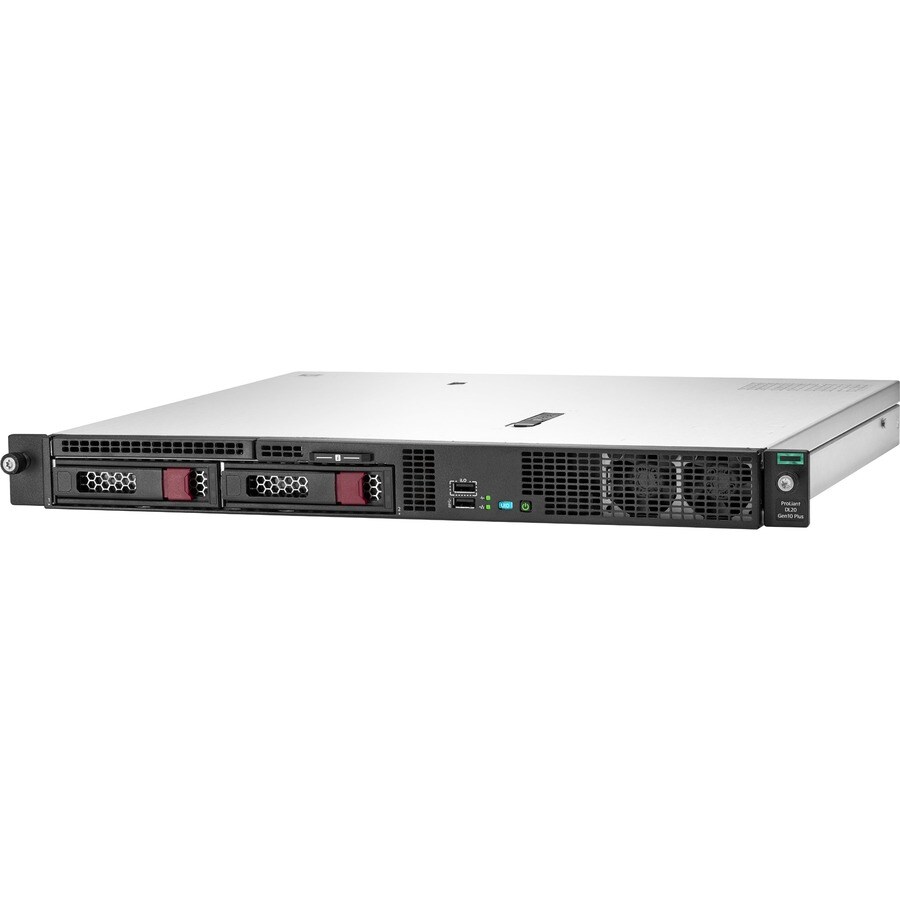

HPE ProLiant DL20 G10 Plus 1U Rack Server - 1 x Intel Xeon E-2314 2.80 GHz - 16 GB RAM - Serial ATA Controller - Intel C256 Chip - 1 Processor Support - 128 GB RAM Support - DDR4 SDRAM - Matrox G200 Up to 16 MB Graphic Card - Gigabit Ethernet - 2 x LFF Bay(s) - Hot Swappable Bays - 1 x 290 W
The dense and compact HPE ProLiant DL20 Gen10 Plus server powered by Intel® Xeon® E and Pentium® Processors provides a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE iLO 5.
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 2.80 GHz processor
- 1 x 290 W power supply unit (PSU) for your system's power requirements
- With 16 GB memory, improve system performance to execute complex applications
Technical Specifications
| Controller Type | Serial ATA |
| Graphics Memory Capacity | 16 MB |
| Additional Warranty Information | 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage with NBD response |
| Chipset Manufacturer | Intel |
| Chipset Model | C256 |
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Redundant Power Supply | No |
| Hot Swappable Power Supply | No |
| Maximum Power Supply Wattage | 290 W |
| "Number of External 5.25"" Bays" | 1 |
| Number of Total Expansion Bays | 3 |
| "Number of 3.5"" Bays" | 2 |
| Total Number of Expansion Slots | 2.0 |
| Hot Swappable Bays | Yes |
| Number of LFF Bays | 2 |
| Operating System | No |
| Operating System Supported | Windows Server 2019 |
| Hyper-V | |
| Red Hat Enterprise Linux 8.4 | |
| SUSE Linux Enterprise Server 12 | |
| Windows Server 2019 Standard | |
| Windows Server 2019 Essentials | |
| Windows Server 2019 Datacenter | |
| Windows Server 2022 Standard | |
| Windows Server 2022 Essentials | |
| Windows Server 2022 Datacenter | |
| SUSE Linux Enterprise Server 15 SP3 | |
| SuSE Linux Enterprise Server 15 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| Windows Server 2022 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 5 |
| Number of VGA Ports | 1 |
| Error Checking | ECC |
| Maximum Memory Supported | 128 GB |
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 1 |
| Total Number of Memory Slots | 4.0 |
| Weight (Approximate) | 9.46 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 434.6 mm |
| Depth | 382.2 mm |
| Product Type | Server |
| Manufacturer Part Number | P44113-B21 |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL20 Gen10 Plus E-2314 2.8GHz 4-core 1P 16GB-U 2LFF 290W PS Server |
| Product Line | ProLiant |
| Product Series | DL20 G10 Plus |
| Brand Name | HPE |
| Cache | 8 MB |
| Processor Speed | 2.80 GHz |
| Processor Type | Xeon |
| Processor Model | E-2314 |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
