HPE DL380 G10+ 4314 MR416i-p NC 8SFF Svr
HPE DL380 G10+ 4314 MR416i-p NC 8SFF Svr
Product Overview

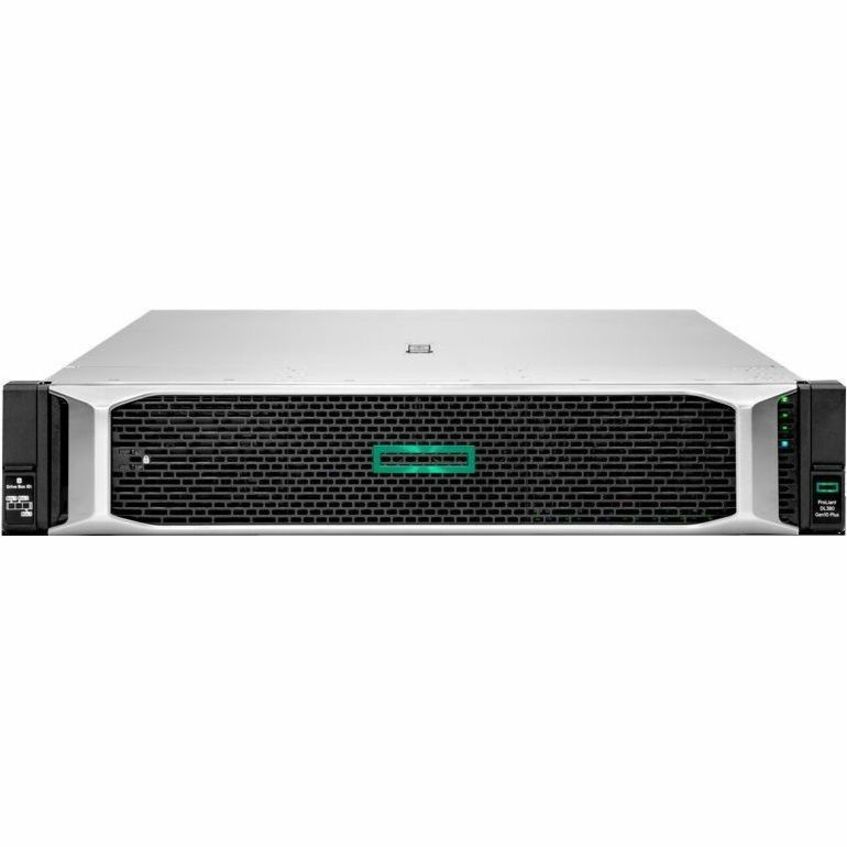

HPE ProLiant DL380 G10 Plus 2U Rack Server - 1 x Intel Xeon Silver 4314 2.40 GHz - 32 GB RAM - 12Gb/s SAS Controller - Intel C621A Chip - 2 Processor Support - 2 TB RAM Support - DDR4 SDRAM - Up to 16 MB Graphic Card - 10 Gigabit Ethernet - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 800 W - Intel Optane Memory Ready
Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 Plus delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry's most trusted compute platform.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 800 W power supply unit (PSU) for your system's power requirements
- With 32 GB memory, improve system performance to execute complex applications
Technical Specifications
| Graphics Memory Capacity | 16 MB |
| Number of Hard Drives | No |
| Additional Warranty Information | 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage with NBD response |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | MR416i-p |
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 3.0 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| Power Source | Power Supply |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 800 W |
| VGA | Yes |
| Network (RJ-45) | No |
| Remote Management | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.0 Ports | 5 |
| Number of VGA Ports | 1 |
| Product Type | Server |
| Manufacturer Part Number | P55247-B21 |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL380 G10 Plus Server |
| Product Line | ProLiant |
| Product Series | DL380 G10 Plus |
| Brand Name | HPE |
| Maximum Memory Supported | 2 TB |
| Standard Memory | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 32.0 |
| Weight (Approximate) | 28.77 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 87.5 mm |
| Width | 445.4 mm |
| Depth | 710 mm |
| Cache | 24 MB |
| Processor Speed | 2.40 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4314 |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 3rd Gen |
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 7.9 |
| Red Hat Enterprise Linux 8.2 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| Ubuntu 20.04 LTS | |
| Windows Server 2016 Essential | |
| Windows Server 2016 Standard | |
| Windows Server 2019 Datacenter | |
| Windows Server 2019 Essentials | |
| Windows Server 2019 Standard | |
| Hyper-V | |
| Windows Server 2016 Datacenter |
