HPE DL320 Gen11 3408U 1P 16G 8SFF Svr
HPE DL320 Gen11 3408U 1P 16G 8SFF Svr
Product Overview

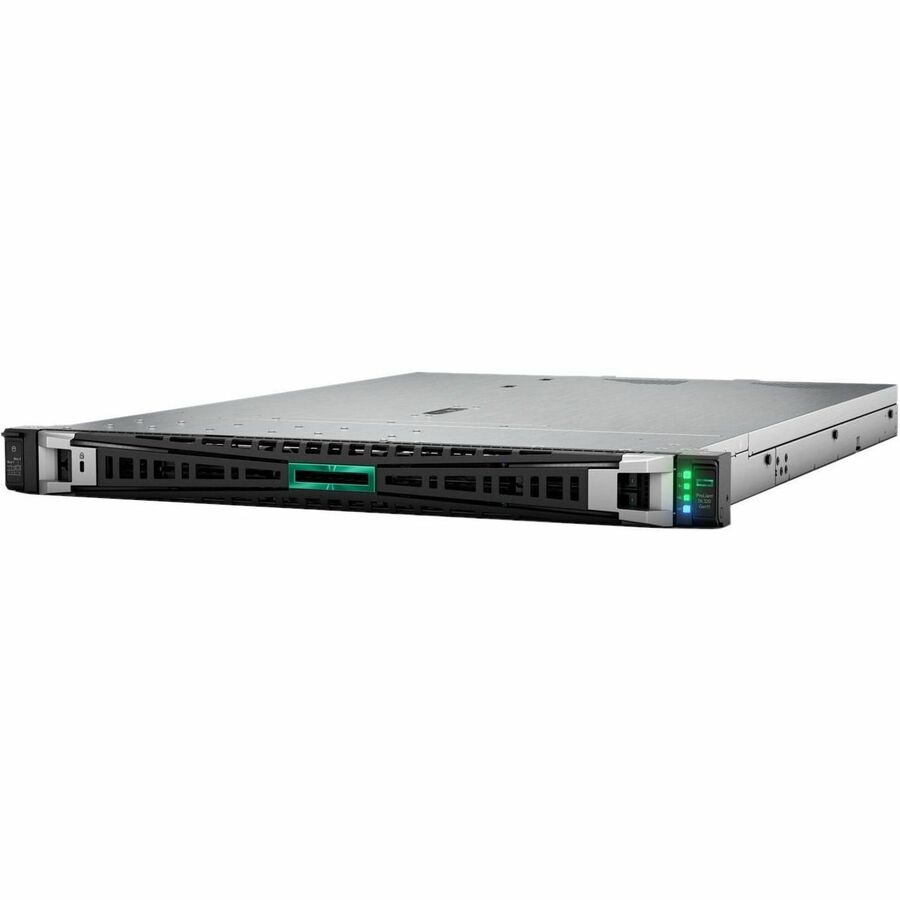

HPE ProLiant DL320 G11 1U Rack Server - 1 x Intel Xeon Bronze 3408U 1.80 GHz - 16 GB RAM - Serial ATA Controller - Intel C741 Chip - 2.04 TB RAM Support - DDR5 SDRAM - Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 500 W
HPE ProLiant DL320 Gen11
Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable to diverse workloads and environments, the compact 1U 1P HPE ProLiant DL320 Gen11 delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL320 Gen11 is ideal for IT infrastructure, either physical, virtual, or containerized.
The HPE ProLiant DL320 Gen11 supports the 4th Generation Intel® Xeon® Scalable Processors with up to 32 cores, plus 4800 MT/s HPE DDR5 Smart Memory up to 2.0 TB. Introducing PCIe Gen5 and Intel® Software Guard Extensions (SGX) support on the single socket segment, the HPE ProLiant DL320 Gen11 delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at 1P economics. DL320 Gen11 is an excellent choice for daily business and workloads in Data Management, Virtualization, Content Delivery Network (CDN), Intelligent Video Analytics (IVA), General Compute, Data Collection, Software Defined Storage, Software Defined Compute, Cold Storage, Compute Storage, Edge AI, and Virtual Desktop Infrastructure (VDI).
- Gigabit Ethernet port for ultra-fast network speeds
- RAID provides data reliability, fault tolerance and improves overall performance
- 500 W power supply unit (PSU) included
- With 16 GB memory, improve system performance to execute complex applications
Technical Specifications
| Graphics Memory Capacity | 16 MB |
| Additional Warranty Information | 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage with NBD response |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| Security Features |
|
| Energy Star | Yes |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 3.0 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| Maximum Memory Supported | 2.04 TB |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Occupied Memory Slots | 1 |
| Total Number of Memory Slots | 16.0 |
| Power Source | Power Supply |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 500 W |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of VGA Ports | 1 |
| Weight (Approximate) | 16.71 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 42.8 mm |
| Width | 434.6 mm |
| Depth | 605.1 mm |
| Operating System Supported | Red Hat Enterprise Linux |
| Citrix XenServer | |
| Oracle Linux | |
| Windows Server | |
| Ubuntu | |
| SuSE Linux Enterprise Server | |
| CentOS |
| Product Type | Server |
| Manufacturer Part Number | P57686B21 |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL320 G11 Server |
| Product Line | ProLiant |
| Product Series | DL320 G11 |
| Brand Name | HPE |
| Cache | 22.50 MB |
| Processor Speed | 1.80 GHz |
| Processor Type | Xeon Bronze |
| Processor Model | 3408U |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Installed | 1 |
| Processor Generation | 4th Gen |
