HPE DL345 G11 9124 32G MR408I-O 8SFF SVR
HPE DL345 G11 9124 32G MR408I-O 8SFF SVR
Product Overview

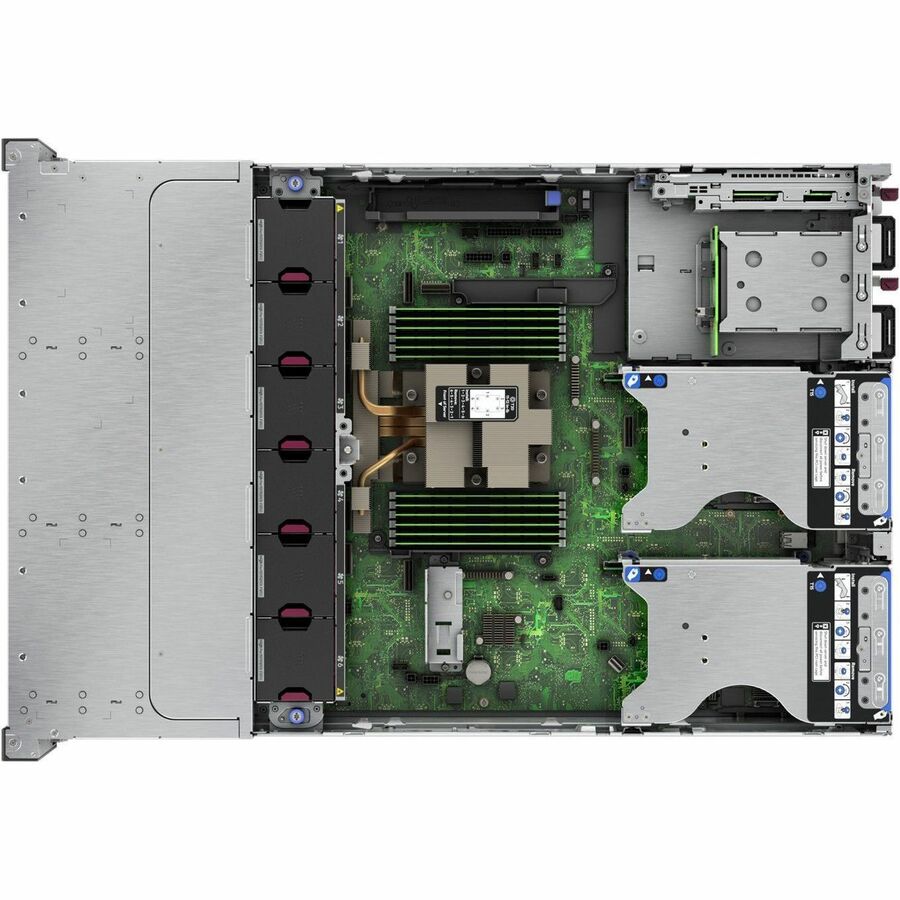

HPE ProLiant DL345 G11 2U Rack Server - 1 x AMD EPYC 9124 3 GHz - 32 GB RAM - 12Gb/s SAS Controller - AMD Chip - 1 Processor Support - 3 TB RAM Support - DDR5 SDRAM - Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 800 W
HPE ProLiant DL345 Gen11
Are you looking for a single-socket scalable server solution to power your virtualized data-intense, large-capacity storage workloads? The HPE ProLiant DL345 Gen11 server is a scalable 2U 1P solution that delivers exceptional compute performance and large capacity storage options at 1P economics. Powered by 4th Generation AMD EPYC™ Processors with up to 128 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage, up to 20LFF/ 34SFF/ 36EDSFF, and up to 4 GPUs at the front, this server is a superb single-socket 2U solution for your data-intensive workloads. Enhanced security features with the HPE silicon root of trust are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation before boot. The HPE DL345 Gen11 server provides impressive storage performance and options for data-intensive workloads like software-defined storage, video transcoding, and virtualized apps.
- Gigabit Ethernet port for ultra-fast network speeds
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 800 W power supply unit (PSU) included
- With 32 GB memory, improve system performance to execute complex applications
Technical Specifications
| Chipset Manufacturer | AMD |
| Graphics Memory Capacity | 16 MB |
| Security Features |
|
| Energy Star | Yes |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | MR408i-o |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 2.0 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| Operating System Supported | Windows Server 2022 |
| Windows Server 2019 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Red Hat Enterprise Linux 9.0 | |
| Red Hat Enterprise Linux 8.6 |
| Power Source | Power Supply |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 800 W |
| Product Type | Server |
| Manufacturer Part Number | P66777B21 |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL345 G11 Server |
| Product Line | ProLiant |
| Product Series | DL345 G11 |
| Brand Name | HPE |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 5 |
| Number of VGA Ports | 1 |
| Error Checking | ECC |
| Maximum Memory Supported | 3 TB |
| Standard Memory | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Occupied Memory Slots | 1 |
| Total Number of Memory Slots | 12.0 |
| Weight (Approximate) | 18.83 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 87.6 mm |
| Width | 448.1 mm |
| Depth | 646.4 mm |
| Cache | 64 MB |
| Processor Speed | 3 GHz |
| Processor Type | EPYC |
| Processor Model | 9124 |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Manufacturer | AMD |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Generation | 4th Gen |
