GOLD 1200W ATX 3.1 BLACK 2024
GOLD 1200W ATX 3.1 BLACK 2024
Product Overview
NZXT PA-2G2BB-AU ATX 3.1, ATX12V v3.1, EPS12V v2.92 Modular Power Supply - 1.20 kW - Matte Black - Compact - 120 V AC, 230 V AC Input - 3.3 V DC Output - Active PFC - 1 +12V Rails - 1 Fan(s) - NVIDIA SLI Supported - 91.6% Efficiency
NZXT Gold ATX 3.1 PSU
ATX 3.1 compliant PSUs featuring high efficiency, low noise, and premium construction.
ATX 3.1 Compliant
ATX 3.1 powers high-performance components with stable delivery and improved efficiency.

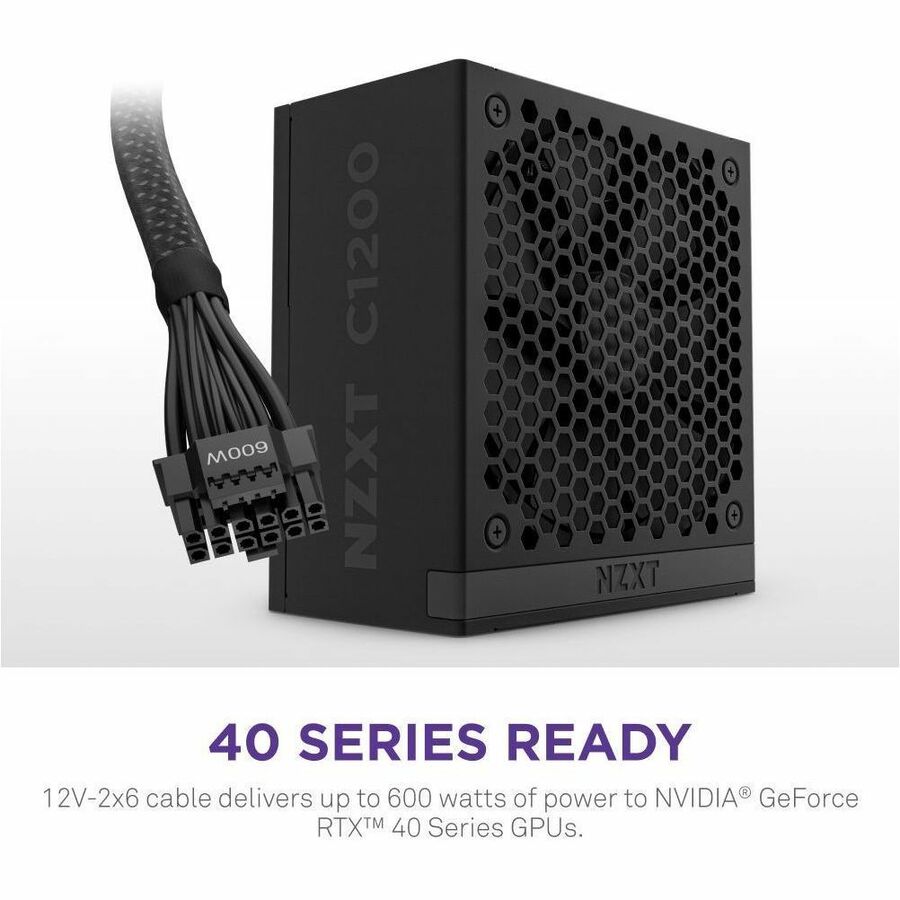

40 Series Ready
12V-2x6 cable delivers up to 600 watts of power to NVIDIA® GeForce RTX™ 40 Series GPUs.
Certified for High Efficiency & Low Noise
80 PLUS Gold Efficiency, Cybenetics Gold Efficiency, and Cybenetics A- Noise Level Ratings.
Silence is Golden
135mm FDB fan with Zero Fan Mode stops spinning under 50% load for total silence.
100% Japanese Capacitors
Improved hold-up time and reduced ripple noise for stable, reliable power delivery.
Fully Modular
Only connect the cables needed to keep a tidy build. Full cable set included.
Space-Saving Size
Compact form factor frees up room for cable management and improved airflow.
Peace of Mind
Backed by a 10-year warranty and reliable customer support.
- Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
- Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 40 Series graphics cards.
- 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
- 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.
- Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.
- Compact form factor frees up valuable room for cable management and more case airflow.
- Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.
Technical Specifications
| MTBF | 100000 Hour |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 50°C |
| Number of SATA Power Connectors | 12 |
| PCI Express Connector | Yes |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Number of (6+2 pin) PCI Express Power Connectors | 3 |
| Weight (Approximate) | 3.60 kg |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 160 mm |
| Product Color | Matte Black |
| Color Family | Black |
| Efficiency | 91.6% |
| Fan Diameter | 135 mm |
| Features | Low Noise |
| Protection Type | Over Voltage |
| Over Temperature | |
| Over Current | |
| Overpower | |
| Under Voltage | |
| Short Circuit | |
| Power Factor Correction (PFC) | Active |
| NVIDIA SLI Supported | Yes |
| Modular | Yes |
| Specification Compliance | ATX12V v3.1 |
| ATX 3.1 | |
| EPS12V v2.92 |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Taiwan Restriction of Hazardous Substances (Taiwan RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | Power Supply |
| Manufacturer Part Number | PA-2G2BB-AU |
| Manufacturer Website Address | http://www.nzxt.com |
| Packaged Quantity | 1 |
| Manufacturer | NZXT Corporation |
| Product Model | PA-2G2BB-AU |
| Product Name | C PA-2G2BB-AU 1200W Power Supply |
| Product Series | C |
| Brand Name | NZXT |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Power | 1.20 kW |
| Output Voltage | 3.3 V DC |
| 12 V DC | |
| 5 V SB | |
| 5 V DC | |
| Number of +12V Rails | 1 |
| Output Voltage Detail | 5 V SB @ 3 A |
| 5 V DC @ 22 A | |
| 3.3 V DC @ 22 A | |
| 12 V DC @ 100 A |
