PLATINUM 1500W PLATINUM ATX 3.1 BLACK
PLATINUM 1500W PLATINUM ATX 3.1 BLACK
Product Overview
NZXT PA-5P1BB-AU ATX 3.1, ATX12V v3.1, EPS12V v2.92 Modular Power Supply - 1.50 kW - Matte Black - Compact - 120 V AC, 230 V AC Input - 3.3 V DC Output - Active PFC - 1 +12V Rails - 1 Fan(s) - 94% Efficiency
Future-Proof Power
ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.

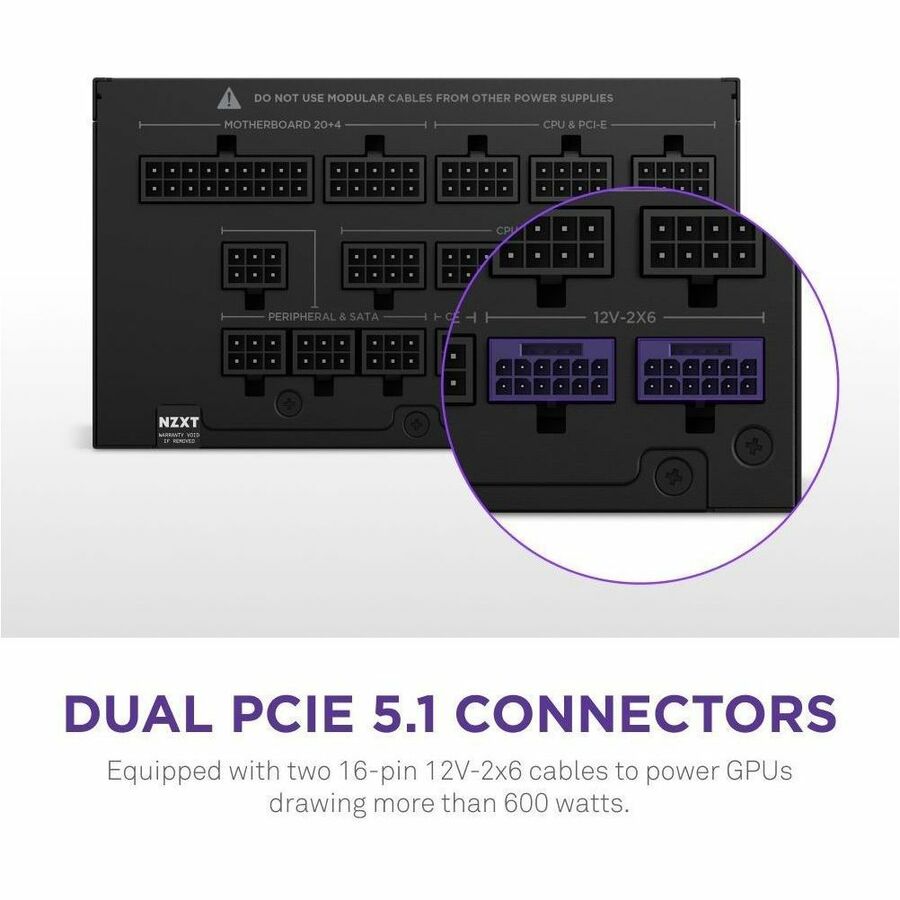

Dual PCIe 5.1 Connectors
Equipped with two 16-pin 12V-2x6 cables to power GPUs drawing more than 600 watts.
Digital Power
Enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
Exceptional Efficiency
Exceeding 80 Plus Platinum standards, the 94% efficiency lowers power usage and ensures quieter, cooler operation.
Magnetic Levitation Fan
140mm fan uses air-suspended blades to minimize noise, extend lifespan, and boost airflow.
Built with Quality
Constructed using all 105°C Japanese capacitors for unmatched reliability.
Fully Modular Design
Simplifies cable management by allowing connection of only necessary cables.
Space-Saving Size
Compact 180mm form factor optimizes case space while promoting improved airflow.
Peace of Mind
Backed by a 10-year warranty and reliable customer support.
- Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
- Includes two 16-pin 12V-2x6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs.
- Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
- Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
- Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.
- 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
- Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance.
- Fully modular design simplifies cable management, allowing for the connection of only necessary cables.
- Compact 180mm form factor optimizes valuable case space while promoting improved airflow.
Technical Specifications
| MTBF | 100000 Hour |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 50°C |
| Number of SATA Power Connectors | 12 |
| PCI Express Connector | Yes |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Number of (6+2 pin) PCI Express Power Connectors | 6 |
| Weight (Approximate) | 4.90 kg |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 180 mm |
| Product Color | Matte Black |
| Color Family | Black |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Energy Efficiency Certification | 80 Plus Platinum |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| China Restriction of Hazardous Substances (China RoHS) |
| Product Type | Power Supply |
| Manufacturer Part Number | PA-5P1BB-AU |
| Manufacturer Website Address | http://www.nzxt.com |
| Packaged Quantity | 1 |
| Manufacturer | NZXT Corporation |
| Product Model | PA-5P1BB-AU |
| Product Name | C PA-5P1BB-AU 1500W Power Supply |
| Product Series | C |
| Brand Name | NZXT |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Power | 1.50 kW |
| Output Voltage | 5 V SB |
| 5 V DC | |
| 3.3 V DC | |
| 12 V DC | |
| Number of +12V Rails | 1 |
| Output Voltage Detail | 5 V SB @ 3 A |
| 5 V DC @ 22 A | |
| 3.3 V DC @ 22 A | |
| 12 V DC @ 125 A |
| Efficiency | 94% |
| Fan Diameter | 140 mm |
| Features | Low Noise |
| Protection Type | Over Temperature |
| Over Current | |
| Under Voltage | |
| Short Circuit | |
| Overpower | |
| Over Voltage | |
| Power Factor Correction (PFC) | Active |
| Modular | Yes |
| Specification Compliance | ATX 3.1 |
| ATX12V v3.1 | |
| EPS12V v2.92 |
