PAX-121F/WHITE/NT/USB-HUB/AG
PAX-121F/WHITE/NT/USB-HUB/AG
Product Overview

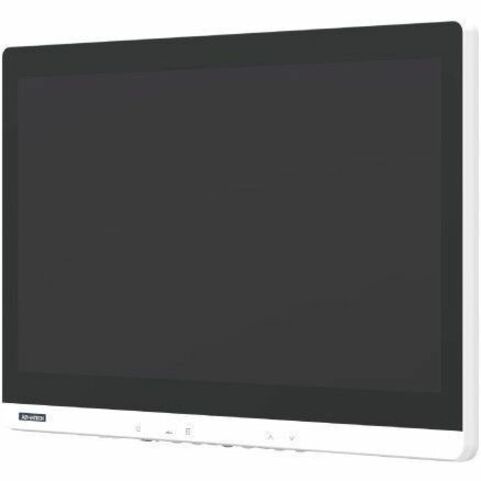

21.5" Medical Certified Monitor - White - FHD Non-Touch Display - IP65 Front - IPX1 System* - Antiglare - 2x USB 2.0 Downstream Ports - VESA Supported - 3 Years Warranty
Advantech's PAX-1 series is a 21.5" or 23.8" medical display designed for use in clinical and critical hospital applications with high-precision & quality imaging for DICOM compliance, and an optional IP54 rating for superior infection control.
See the full PAX Range
- Wide 21.5 screen with Full HD 1920x1080 resolution
- Pair with POC-4 AiO for Dual Monitor Setups
- *Fanless design with IP65 Panel, and optional upgrade IP54-rated enclosure protection, for superior hygiene and infection control
- Optional 10-point PCAP multi-touch control function, and USB hub module
- Available in White
- Supports DP, HDMI or DVI
- 2 x 2W Speakers
- Compliant with IEC/EN 60601-1-2 EMC, IEC/EN 60601-1 MDR, UL60601-1 standards for medical devices
- Standard 3 Year Return to Base Warranty, with options to extend warranty for a total of 5 years
Technical Specifications
Miscellaneous
| Additional Information | VESA Mounts support 100x100 and 75x75mm |
Warranty
| Additional Warranty Information | Manufacturers Back to Base Warranty |
| Limited Warranty Duration | 3 Year |
General Information
| Manufacturer Part Number | PAX-121-ING-10G |
| Manufacturer Website Address | https://www.advantech.com/en-au/products/e650652a-3ee9-4b4f-8ba1-d488b73067f9/pax-121-(f-model)/mod_4c27cc21-046e-4eb3-8fbf-991e7adeb39a |
| Manufacturer | Advantech |
| Product Model | PAX |
| Product Name | PAX-121F - Non Touch Medical Monitor |
| Brand Name | Advantech |
Physical Characteristics
| Weight (Approximate) | 5.5 kg |
| Height | 357 mm |
| Width | 524 mm |
| Depth | 58 mm |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Product Color | White |
Technical Information
| Mount Type | Arm-mountable,Bracket-mountable,Cart Mountable,Floor-mountable,Desk Mountable,Panel Mount,Pole Mount,Stand Mountable,Wall Mountable |
| Screen Surface | Anti-glare |
| Screen Mode | Full HD |
| Display Orientation | Landscape |
| Curved Screen | No |
| Screen Size Class | 21" |
| Ingress Protection (IP) Rating | IP51,IPX1 |
| Cover Glass | Yes |
