Product Overview

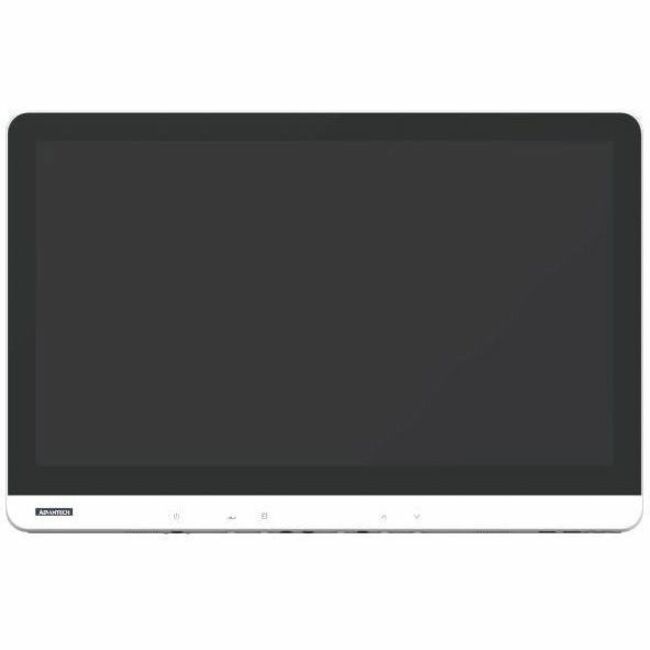

Advantech PAX-124F 24" Class LED Touchscreen Monitor - 16:9 - 16 ms - 23.8" Viewable - Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Vertical Alignment (VA) - 250 cd/m² - LED Backlight - Speakers - DVI - HDMI - USB - DisplayPort - 1 x HDMI In - White - 3 Year - USB Hub
PAX-124 fixed model is a versatile touch monitor with IP54 environmental protection and medical safety approval. With touchscreen and cover glass options.
- Wide 23.8" screen with Full HD 1920x1080 resolution
- Fanless design with upgrade IP54-rated protection for superior hygiene and infection control
- With 10 point multi-touch control function
- Factory calibration included for GAMMA 2.2
- Compliant with UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC) standards for medical devices
Technical Specifications
Built-in Devices
| Built-in Devices | USB Hub |
Miscellaneous
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Audio
| Speakers | Yes |
| Number of Speakers | 2 |
Touchscreen Information
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
Video
| Brightness | 250 cd/m² |
| Maximum Resolution | 1920 x 1080 |
| Native Contrast Ratio | 3,000:1 |
Technical Information
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.27 mm |
| Response Time | 16 ms |
| Features | Anti-glare |
| Viewable Screen Size | 23.8" |
| Screen Mode | Full HD |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | LED |
| Panel Technology | Vertical Alignment (VA) |
| Screen Size Class | 24" |
| Ingress Protection (IP) Rating | IP54 |
| IPX1 | |
| IP65 | |
| Response Time Details | 16ms Typical |
General Information
| Product Type | LED Touchscreen Monitor |
| Manufacturer Part Number | PAX-124-ING-11G |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | PAX-124F |
| Product Name | PAX-124F Touchscreen LED Monitor |
| Brand Name | Advantech |
Physical Characteristics
| Weight (Approximate) | 6.98 kg |
| Height | 387 mm |
| Width | 583 mm |
| Depth | 63 mm |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Product Color | White |
| Color Family | White |
Interfaces/Ports
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| Number of USB Ports | 2 |
| DisplayPort | Yes |
| Number of HDMI Inputs | 1 |
| Number of DisplayPorts | 1 |
| Number of DVI Ports | 1 |
| Total Number of HDMI Ports | 2 |
| Number of USB 2.0 Downstream Ports | 2 |
