20A POWER DISTRIBUTION UNIT METERED

CyberPower PDU20MHVIEC10AT PDU - 20 A - 230 V AC Output - 1U Network (RJ-45) - 3.05 m Cord Length - Horizontal - Rack-mountable

The CyberPower PDU20MHVIEC10AT, a 10-outlet 1U rack mount metered auto transfer switch (ATS) PDU, provides 200-240V/20A output. The PDU distributes power to 10 IEC 8-C13/2-C14 receptacles from redundant IEC-320 C20 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

The LCD provides local monitoring of the PDU. Electrical current is displayed in amps and the LCD can be toggled to display input/output voltage, power usage (kW), and hardware/LCD firmware versions.

The PDU20MHVIEC10AT includes a SNMP/HTTP card slot for adding an RMCARD202/RMCARD203 (sold separately).

The unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

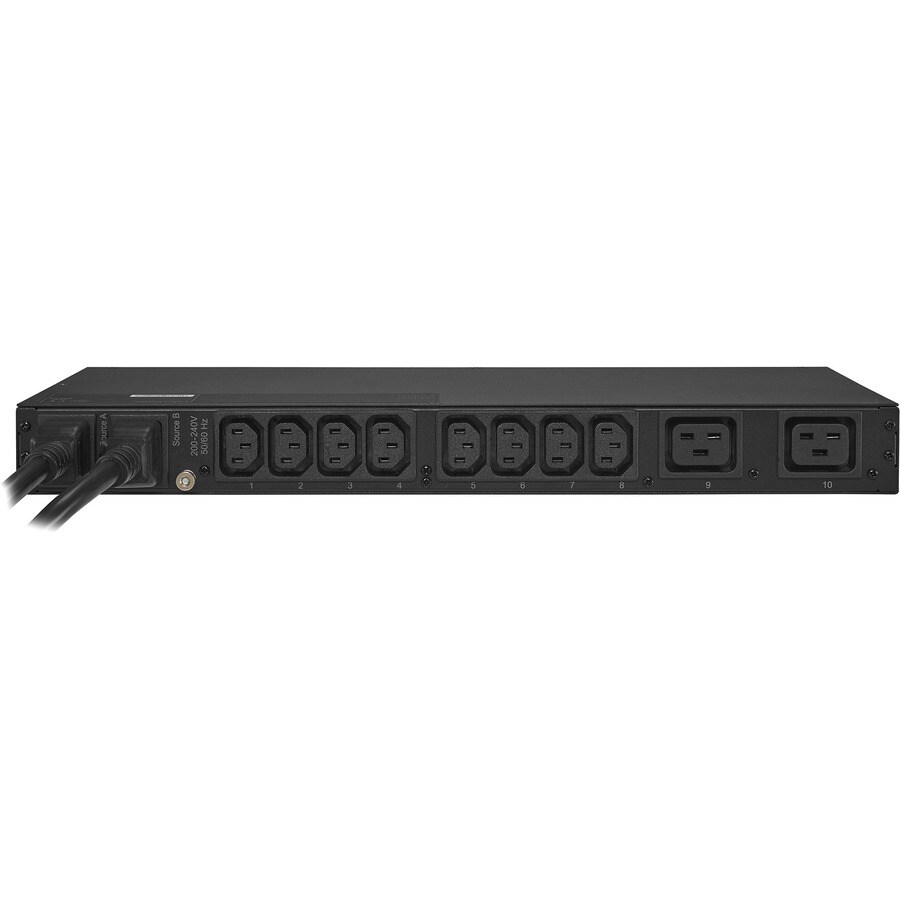

• 200V - 240V 20A ATS PDU with 8 IEC-320 C13 Outlets and 2 IEC-320 C19 Outlets. Dual IEC-320 C20 Input Plugs for Redundancy
• Metered Automatic Transfer Switching (ATS) to provide a redundant input power option
• Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
• SNMP/HTTP option slot for real-time monitoring and event logging of the ATS PDU
• 1U Rugged, industrial-grade metal housing
