METERED AUTO TRANSFER SWITCH 10AMP

METERED AUTO TRANSFER SWITCH 10AMP

METERED AUTO TRANSFER SWITCH 10AMP

Product Overview

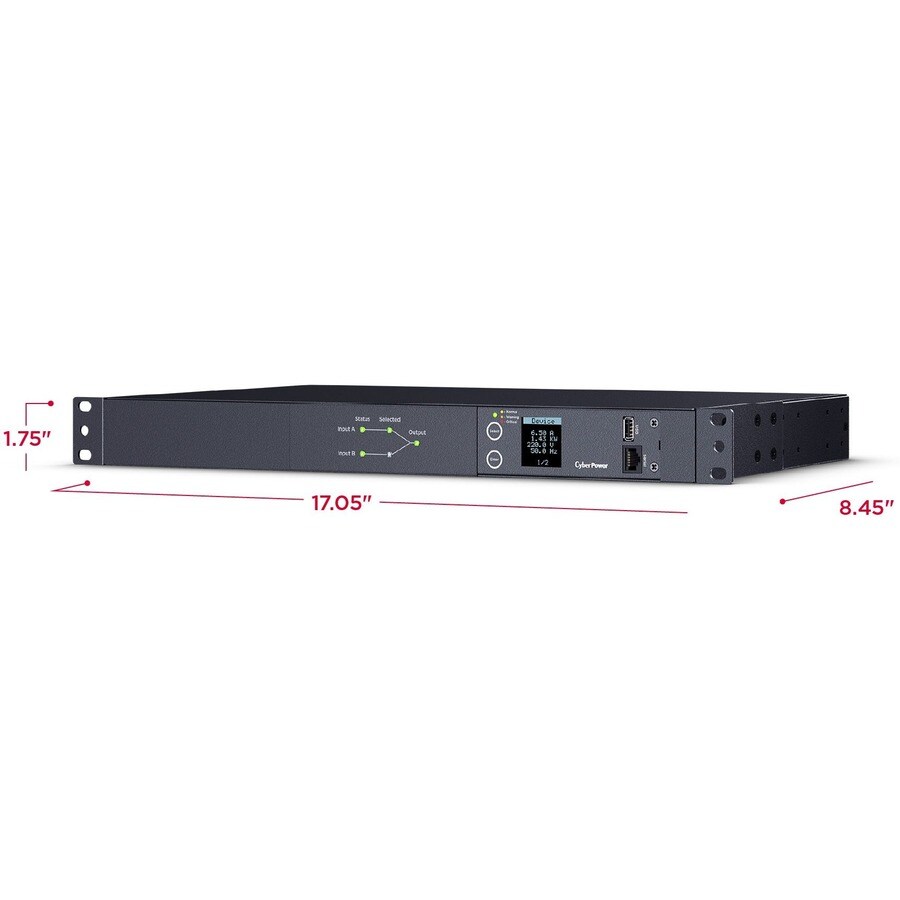

CyberPower PDU24004 Modular PDU - Metered - IEC 60320 C14 - 12 x IEC 60320 C13 - 15 A - 230 V AC Output - 1U Network (RJ-45) - Horizontal - Rack-mountable

Ensure continued operation of critical devices with the CyberPower PDU24004 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

The PDU24004 supports inputs between 200-240V and includes (12) IEC C13 outlets. Dual IEC C14 power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24004 is protected by a three-year limited warranty.

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Management
Management
    • IPv4
    • TCP/IP
    • UDP
    • SNMPv1
    • HTTP
    • NTP
    • DNS
    • Telnet
    • DHCP
    • SMTP
    • FTP
    • IPv6
    • SNMPv3
    • HTTPs
    • SSH
    • SSL
    • TLS
    • LDAP(S)
    • RADIUS
    • Syslog
    • CLI
    • Windows AD
Miscellaneous
Additional Information
    • Cord Length: 10 ft (3.0 m)
    • Derated Input Current: 12 A
    • Input Frequency Range: 50 Hz - 60 Hz
    • Input Overload Protection: 15A x 2
    • Input Plug Type: 2 x IEC-320 C14
    • Maximum Input Current: 15A
    • Nominal Input Voltage: 200 - 240 VAC
    • Phase: Single Phase
    • Plug Style: Straight (Socket)
    • Nominal Output Voltage: 200 - 240 VAC
    • Outlet Banks: 1
    • Outlets - Total: 12
    • Outlet Type COMPUTED: 12 - IEC-320 C13
    • Overload Protection: None
    • Power Source Transfer Time: 2-7 ms
    • Source Failure Detection Time: 2-3 ms
    • Total Transfer Time: <10 ms
    • Hardware Connection Port: Serial (RJ45)
    • LCD: Multifunction LCD
    • LED Indicators: Source Status
    • Upgradeable firmware: Yes
    • Color: Black
    • Cord Retention Tray/Cord Organizers: Yes
    • External Site Ground Pin: Yes
    • Material of Construction: Metal
    • Operating Elevation: 0 - 13123 ft (0 - 4000 m)
    • Operating Relative Humidity: 0 - 95 % (non-condensing)
    • Operating Temperature: 32 - 113 °F (0 - 45 °C)
    • Storage Elevation: 0 - 49213 ft (0 - 14999 m)
    • Storage Temperature: 5 - 131 °F (-15 - 55 °C)
    • Safety: UL62368: FCC Class A: cTUVus/CE/UKCA
Power Description
Output Voltage230 V AC
Input Current15 A
Input Voltage Range200 V AC - 240 V AC
Output Voltage Range200 V AC - 240 V AC
General Information
Product TypePDU
Manufacturer Part NumberPDU24004
Manufacturer Website Addresshttps://www.cyberpower.com/au
ManufacturerCyberPower Systems, Inc
Product ModelPDU24004
Product NameSwitched ATS PDU PDU24004 12-Outlets PDU
Product SeriesSwitched ATS PDU
Brand NameCyberPower
Technical Information
Plug/Connector TypeIEC 60320 C14
PhaseSingle Phase
Receptacle TypeIEC 60320 C13
DesignModular
PDU TypeMetered
Receptacle Detail12 x IEC 60320 C13
Plug/Connector Detail2 x IEC 60320 C14
Physical Characteristics
Weight (Approximate)3.36 kg
Mount TypeRack-mountable
Rack Height1U
Height44.5 mm
Width433.1 mm
Depth214.6 mm
Mounting OrientationHorizontal
Product ColorBlack

Price Trend

Current Price
AUD 939.00
