MONITORED EPDU 0RU 16AMP 2 YRS WTY
MONITORED EPDU 0RU 16AMP 2 YRS WTY
Product Overview
Monitored ePDU 0RU Vertical 16A Input - (Min Order Qty: 60) - SNMP Network Connection - 18X IEC C13 + 2 X C19 OUT - IEC309 16A IN - 2 Years Adv. Repl. Warranty

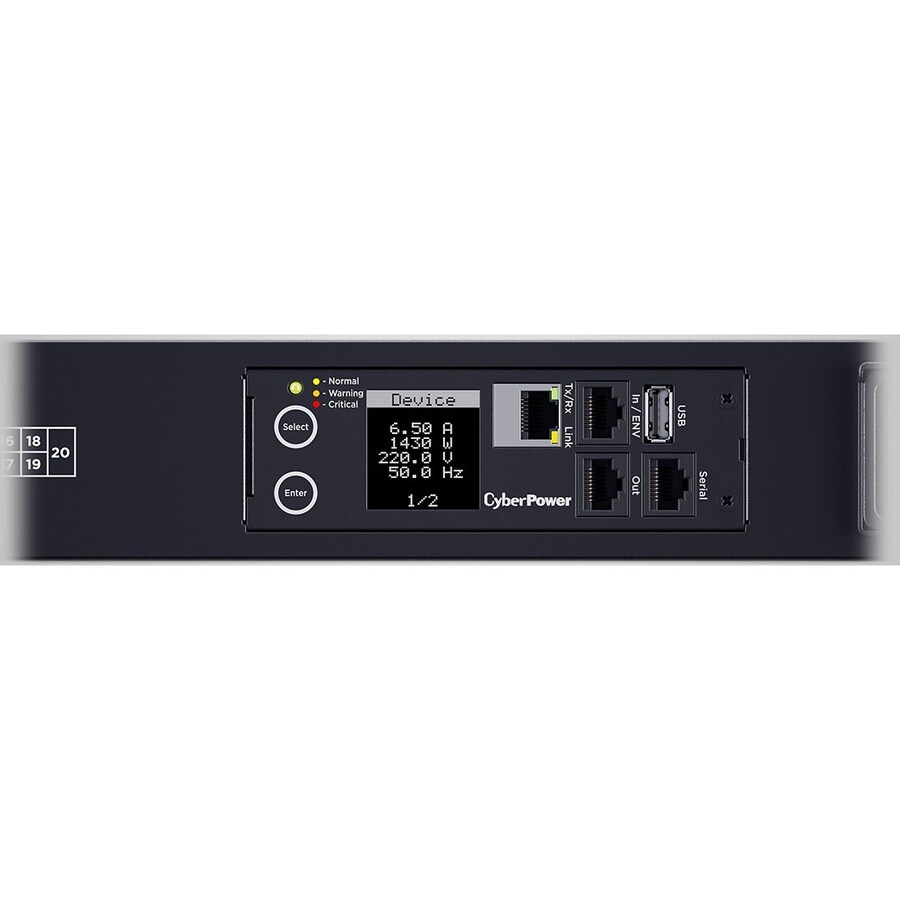

CyberPower PDU31414 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. The unit supports real-time remote monitoring of its connected equipment, making power management much more convenient for users.The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD's colors to easily categorize devices between multiple machines in server room and IT environments. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.
The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel® Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
- Real-Time Local/Remote Monitoring
- Work under High Temperature
- Industrial-grade Metal Housing
- Digital Real-time Load Display
- User Configurable Color LCD
- Hot-swappable LCD Design
- Rotatable LCD for Proper Display Orientation
- LED Status Indicator
- Firmware Upgrade via USB
- Support ENVIROSENSOR
Technical Specifications
Interfaces/Ports
Network (RJ-45) | Yes |
Management
Management |
|
Miscellaneous
Package Contents |
|
Environmentally Friendly | Yes |
Power Description
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Input Current | 16 A |
Input Voltage Range | 200 V AC - 240 V AC |
General Information
Product Type | PDU |
Manufacturer Part Number | PDU31414 |
Manufacturer Website Address | https://www.cyberpower.com/au |
Manufacturer | CyberPower Systems, Inc |
Product Model | PDU31414 |
Product Name | PDU31414 20-Outlets PDU |
Brand Name | CyberPower |
Physical Characteristics
Weight (Approximate) | 3.40 kg |
Mount Type | Rack-mountable |
Rack Height | 0U |
Height | 901.7 mm |
Width | 55.9 mm |
Depth | 48.3 mm |
Mounting Orientation | Vertical |
Technical Information
Plug/Connector Type | IEC 60309 16A |
Phase | Single Phase |
Receptacle Type | IEC 60320 C13 |
IEC 60320 C19 | |
PDU Type | Monitored |
Receptacle Detail | 2 x IEC 60320 C19 |
18 x IEC 60320 C13 | |
Plug/Connector Detail | 1 x IEC 60309 16A |
Price Trend
Current Price
AUD 1,049.00
